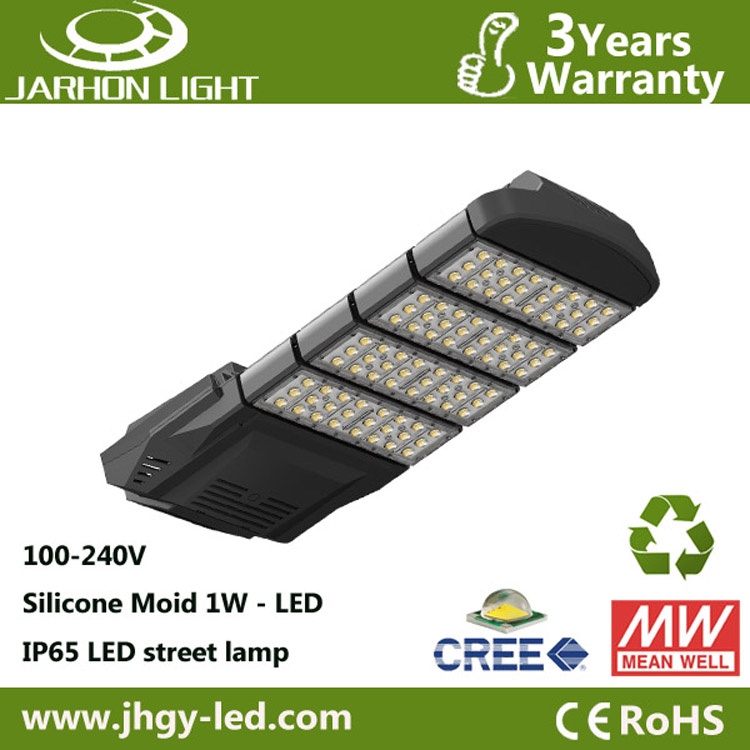

Technical Specification:
1. Wattage: 60W 90W 120W 150W 180W 210W optional
2. Color Temperature: WW(3000-3500K), PW(4000-4500K), CW(6000K-6500K) is optional.
3. Lampbody Material: Aluminum Alloy Cover material: PC
4. Beam angle: 120degree
5. Luminous efficiency: 105LM/W
7. Power factor: >0.9
8. Warranty: 3 years
9. Certification: CE RoHS
Feature:
1: Designed with constant current technology
2: Perfect structure design with aluminum base to disperse heat easily
3: The latest outdoor illumination product with comprehensive application
4: Easy to install and low cost of maintenance
5: High lumen, high power, low degradation, low heat
6: We are LED factory and specilized in designing and developing the LED lamps
7: IP65 waterproof + dustproof+ Moisture-proof+anti corrosive+antiex plosion
8: High lumens output, low heat and function is more steadier.
9: Healthy beam, without ultraviolet radiation &infrared, no radicalization
10: Green lighting, without mercuty&Plumbum and other relative hazardous substance
Applications:
Freeway, highway, city cross road, urban street and boulevard, sidewalk, public areas such as school, residential, industrial park
Our service:
1. OEM or ODM is available
2. Sample can be delivered in 3days
3. Discounts are offered on order quantities
4. We welcome you to visit our showroom and factory
5. Your inquiry will be replied in 24hrs
Warranty terms:
A), Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free/remake new components to replace based on the proof-documents;
B), If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, we will provide paid maintenance within warranty period
|
Power consumption : |
60W,90W,120W,150W,180W,210W |
|
Input voltage : |
AC100-240V |
|
Frequency : |
50-60Hz |
|
Brand of driver: |
Meanwell driver |
|
Light source : |
Cree or Bridgelux chip optional |
|
Emitting color : |
warm white, cool white, pure white |
|
IP Rating: |
IP65 |
|
CRI : |
Ra70-Ra90 |
|
Material : |
AL+TG |
|
Fixture color : |
Black or Sliver optional |
|
Warranty : |
3 years |
|
Certificate : |
CE & RoHS |
|
Application : |
street lighting, solar lighting, main roads, large public buildings Highway etc. |
|
Life hour: |
≥50000 hrs |
Shenzhen Jiahong Guangyuan Technology Development Co., Ltd established in 2003, is a leading manufacturer of LED industrial lights with mainly products including: LED Tri-proof light, LED flood light, LED plant growing light, LED Tunnel light, LED high bay light, LED flood light, LED street lamp, LED gas station light, LED ceiling light and so on.
Based on the developing of industrial lighting fixture, we devoted ourself to the exploitation and application of the Smart LED products and to be the professional supplier for the environmental friendly smart LED systems as well as the LED lightings.
Customized products also available here. So welcome you send your creative design and reqirements to us and we will try our best to make your idea come true.
With the hard and efficient working of our developing team, Our innovative functional new products come out constantly. Welcome you contact us anytime. And wish we all will have a fruitful and mutual successful business cooperation in the very near future and from hereafter.
