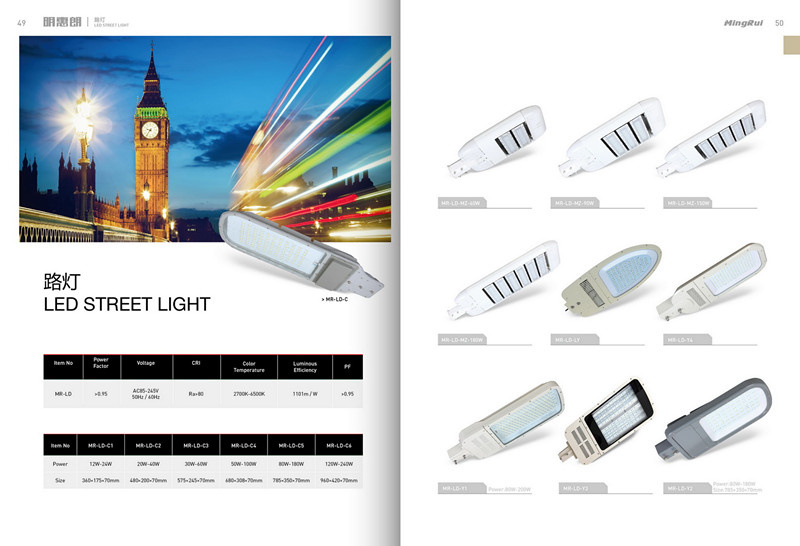

Energy saving outdoor led street light , IP65 LED STREET LAMP,80W
Modle No. MR-LD-80W
Input Voltage: AC 850V-245V, DC12/24V
Standard Power: 60W~180W
Working Frequency: 50Hz/60Hz
Color Temperature: Pure white: 5000-7000K
Warm white: 2700-3500K
CRI (Color rendering index) 80
Working Environment: -20° C~70° C
Humidity: 10-90%
Protection Standard: IP65
Installation hight: 4-16m
Size: 820*280*80mm
Features of MHL LED street light
1. Use 1W high power CREE/ Epistar LED chips
2. Aluminium alloy housing body, good heat dissipation
3. 50%~70% energy saving, enviroment protection, no UV, IR
4. More than 50000 hours life span, 2 years warranty
5. CE & RoHS certification
Applications
Street lighting, solar lighting
About us:
Weifang Mingrui Optoelectronics Technology Co., Ltd is a high and new technology enterprises which specialized in researching and producing LED lighting and solar lighting. Our products mainly include: LED bulbs and tubes, LED ceiling light, LED down light, LED panel light, LED street light, LED flood light, LED hurdle light, LED point light, LED strips, solar outdoor lights, etc.
Our advantage:
1. ISO9001: 2008 certificates, CE & RoHS certificates.
2. Professional R & D center, quickly after-service team.
3. Short production period, delivery in time.
4. Patents LED street lights, plenty experience on the installation of street lighting for the main street of the city.
Our sevice:
1. High quality LED lighting products
2. Professional and quickly after-sale service team
3. Samples are available
4. Professional logistics office
| Model No. | MR-LD-80W |
| Total power | 80W |
| Input voltage | 90~240VAC 50/60Hz |
| Luminaire efficiency | ≥92% |
| Power suplly efficiency | ≥87% |
| THD | less than 15% |
| Luminous efficiency | ≥110Lm/w |
| Power factor | ≥0.95 |
| Rja | 0.16ºC/W |
| CCT | N.W.5000~6500K 3700~4500K W.W.2700~3500K |
| CRI | Ra≥75 |
Illumination | H=7m≥75Lux
H=8m≥58Lux
H=9m≥46Lux
H=10m≥37Lux
H=12m≥26Lux |
| Range of illuminate | H=8m≥35*20m
H=9m≥40*22m
H=10m≥45*25m |
| Installation | 5~13 m |
| average beam | 138º |
| IP code of LED driver | IP68 |
| IP code of the lamp | IP65 |
| Working temperature | -30~50 ºC |
| Working humidity | 10~90%RH |
| Storage temperature | 5~80 ºC |
| Life span | 50000Hrs |
| Material | aluminium, toughened galss
|
