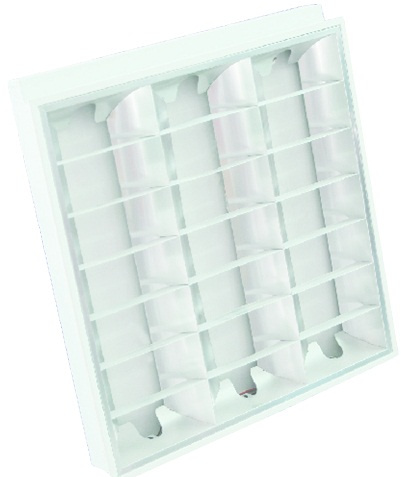

Embedded Grille Energy Saving Lamp
T5 fluorescent lamp tube is a straight tube which deserves promotion.
1. Lighting effect is up to 95Lm/W, which is 30% higher than T8 tube;
2. Small diameter (16). Conducive to a rational design of reflector and improve the lighting efficiency;
3. Tube's length is reduced, easy to reduce whole lamp's length and adapt to standard construction module, convenient to install;
4. Long life span.
Features
1. Lamp body is made of high quality steel plate, coated surface.
2. Both reflector and grille are silvery white matte aluminum. Light is soft and comfortable.
3. Photosource is T5 tube. The size of lamp body is optimized and easy for installation.
4. With same quantity of tubes, it saves 50% more of electricity than T8 fluorescent lamp. Illumination is raised 2 times.
Item No. |
P (W) |
I (A) |
PF |
Φ (Lm) |
Ra |
Base |
Dimmension (mm) |
TL |
OD |
Dia. |
SL3× 12-T5. H |
3*12 |
0.18 |
0.96 |
3810 |
83 |
G5 |
215 |
Φ 76 |
Φ 17 |
SL4× 12-T5. H |
4*12 |
0.24 |
0.96 |
5080 |
83 |
G5 |
280 |
Φ 76 |
Φ 17 |
SL2× 26-T5. H |
2*26 |
0.26 |
0.96 |
5400 |
83 |
G5 |
270 |
Φ 80 |
Φ 17 |
SL3× 26-T5. H |
3*26 |
0.39 |
0.96 |
8100 |
83 |
G5 |
290 |
Φ 98 |
Φ 17 |
SL4× 26-T5. H |
4*26 |
0.52 |
0.96 |
10800 |
83 |
G5 |
290 |
Φ 121 |
Φ 17 |
