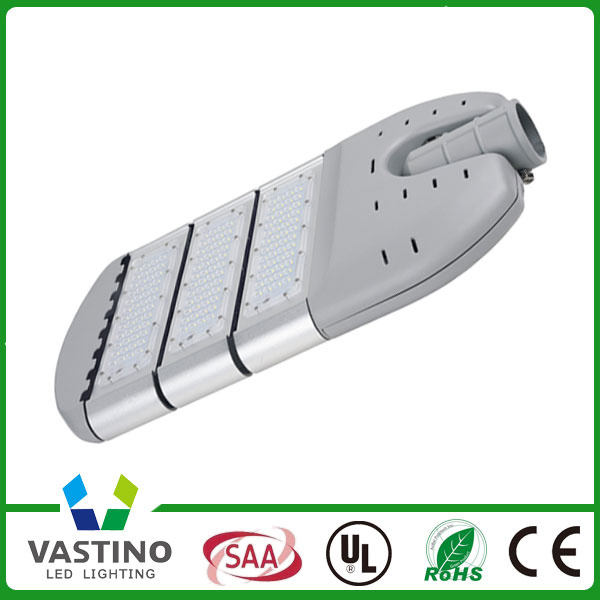

Energy Saving High Lumen led street light
Product Name: LED ST004 Led street light
Product Model:
Power | Color Temperature | Model |
| 80W | 2700-3000K
4000-4500K
6000-6500K | YSST-8025-004 |
| 100W | YSST-10035-004 |
| 120W | YSST-12035-004 |
| 150W | YSST-15045-004 |
| 180W | YSST-18045-004 |
| 200W | YSST-20055-004 |
Note:in any adjusted for this specification,please consult the sales before placing order,thanks
Product description and application:
1.Efficient SMD technology:imported OSRAM chip package (SMD3030 series), long life, low light failure
2.Efficient cooling material technology:High thermal cooling aluminum radiator sawtooth structure, larger cooling area, cooling faster.
3.Low thermal resistance packaging technology:LED light source directly encapsulated to cooling integrated module new LED light source packaging technology,silver with ceramic packaging technology and liquid metal solid crystal packaging technology.
4.Efficient uniform temperature cooling technology:Modular cooling, independently of each other, if a single module corruption does not affect use.
5.Radiating shell assembly technology:achieved a plurality of modules assembled together Structure ,flexible replace the required power of traditional lighting .
6.Through the combination by LED light source module and the heat sink,the main components of the LED lamps with a standardized, universal key technology.
7.With high efficiency,high bright,long lifespan and good energy saving effect;Mainly used in fasttrack, main roads, secondary roads, factory road lighting, public places lighting, garden lighting and other places.
Product Feature:
1. Efficiency:Used the Meanwell driver,high efficiency,save 60%-80% electricity bill compared with the traditional lamp;
2.Beam angle:support for 113 degree adjustable,It can be combined with the road width and pole height adjustable lamp head angle;
3.Led:Use Osram SMD3030 Led source,Cri80,no light pollution,with with high transmittance PC material lens.
4.Light failure:Single module 48pcs SMD 3030, low current design, lowered LED chip temperature down and extend the life of the light source;
5.Radiator:a big touch area for Lamps radiator blade structure with air,Accelerate the natural convection of air,Good radiating result.
6.Light Distribution:rectangular and asymmetric light distribution design solve the main road LED light distribution puzzles.
Product Specifications
1.Basic parameter
| Model | Led | Size
(mm) | N.W(kg) | Shell color | Material | IP Grade | Adjust | Installation size(mm) |
| YSST-8025-004 | 96PCS*1W(2 model) | L538*W350*H106 | 6.6 | Grey | ADC12+PC | IP65 | 113° | D60 |
| YSST-10035-004 | 144PCS*1W(3 model) | L638*W350*H106 | 8.3 |
| YSST-12035-004 | 144PCS*1W(3 model) | L638*W350*H106 | 8.3 |
| YSST-15045-004 | 192PCS*1W(4 model) | L738*W350*H106 | 10.1 |
| YSST-18045-004 | 192PCS*1W(4 model) | L738*W350*H106 | 10.1 |
| YSST-20055-004 | 240PCS*1W(5 model) | L838*W350*H106 | 11.7 |
2.Electrical parameters
| Model | Power(W) | Input Voltage(V) | efficiency(%) | Power Factor |
| YSST-8025-004 | 80W | AC100-240V 50-60Hz | >90 | >0.95 |
| YSST-10035-004 | 100W |
| YSST-12035-004 | 120W |
| YSST-15045-004 | 150W |
| YSST-18045-004 | 180W |
| YSST-20055-004 | 200W |
3.Optical parameters
| Model | CCT(K) | Lumen(lm/W) | Illuminance
(6M/8M/10M/12M) | Beam angle | CRI |
| YSST-8025-004 | 2700-6500K | 104±10% | 55/30/20/14 Lux | 90*135° | >80 |
| YSST-10035-004 | 100±10% | 62/35/23/16 Lux |
| YSST-12035-004 | 100±10% | 70/39/26/18 Lux |
| YSST-15045-004 | 100±10% | 92/48/32/20 Lux |
| YSST-18045-004 | 100±10% | 104/55/37/24 Lux |
| YSST-20055-004 | 100±10% | 116/59/40/26 Lux |
Storage and usage environment
| Storage temperature | -20ºC~+65ºC |
| Operating temperature | -20ºC~+45ºC(25ºC best) |
| Ambient humidity | 20-90%RH |
Life and warranty
| Lifespan | 3(Lumen maintain70%) |
| Warranty | 3 years |
Packing Information
Model | Packing material | Outer size
L*W*H(mm) | CTN/PCS
(PCS) | Gross weight
(KG) |
| YSST-8025-004 | Outer box
K=K | L578*W390*H146 | 1 | ±5% |
| YSST-10035-004 | L673*W390*H146 | ±5% |
| YSST-12035-004 | L678*W390*H146 | ±5% |
| YSST-15045-004 | L778*W390*H146 | ±5% |
| YSST-18045-004 | L863*W390*H146 | ±5% |
| YSST-20055-004 | L963*W390*H146 | ±5% |
Installation diagram:
1.First, press the button M6 nut tight at C, open back cover;
2.by release the screw at A place to adjust the angle of the pole casing required;
3.After adjusted to the desired angle,Locking nut M6 at C;
4.Close the led driver cover;
5.Put the light to the poles,lock B place inner hexagonal to fixed poles,then fix the M6 nut at B.
Instruments:
1. Please read the product specifications, confirm compliance with the conditions for use environment on the specifications, before installation;
2. Before the product access to power, make sure the switch is off;
3. Lighting by a qualified electrician to install, in line with IEE wiring electrical standards or national standards;
4. This product is suitable for indoor;
5. Do not use under high or low voltage state in a longterm, it will affect the normal use of the function and life;
6. Do not install used within flammable objects, no matter what the circumstances, the lamp is not to be covered by insulation material or similar;
7. Installation, replacement, cleaning the lamps, must cut off the power, to ensure personal safety
8. When finding lamp not working (selfextinguishing, flashing), check the connection plug contact performance, and power supply voltage , if normal, the fault persists, replaced by a new la mp;
9. When cleaning, use a soft cloth to wipe wring soap stick, wipe with a dry cloth, please do not use banana water until clean light surface volatile substances, do not spray any chemicals onthe lamp, the lamp may be discolored or damaged;
10. Do not disassemble the product on their own, in order to avoid damage to the internal components. Disassemble that is not entitled to warranty service.
