LED Emergency Panel Light by Lithium battery 30% brightness 3hours
Technical Specifications:
Dimension of LED Panel light: 595*595*9.5 MM
Input Voltage: AC85-265V
The maximum power: 36 W
Power factor: >0.9
Communication power supply: LED lamp flux 3000Lm (optional)
Emergency lighting LED lamp optic: 1000LM (optional)
Emergency time: 3hours (optional)
Emergency conversion time: < 0.5s
Charging time: 24Hours
Emergency output current: 0.1 A
Emergency output voltage: DC 60V
Emergency power Introduction
1. The AC power line, LED lamp power rating for 40W, at the same time, the power of the Backup battery management, this time the power of the box indicator light is red.
2. When there is a power failure, < 0.5 seconds conversion nickel cadmium battery driven LED lamp, fluorescent tube at this time of emergency power for 12 W (optional), the Lamp of the emergency lasts for 90 minutes (standard/optional). When the battery set Limit to discharge voltage value, emergency power source move to cut off the battery Power supply, into standby mode (zero power consumption), LED lamp go out.
3. Alternating current input again, emergency power automatic into charging cycles, LED Light tube into the normal work of the state, the battery in, Normal standby.
4. Long distance transportation: Must be in no AC input, unplug battery plug and then Insert plug, into the transportation and storing condition.
5. The battery selects high quality Lithium battery charging and discharging more than 500 Times above, with the state standards, and no explosion danger.
6. Emergency power cabin charging protection function can be in charge after saturated Automatically stop charging, and charging won't appear.
7. The battery and emergency power have high temperature resistant performance, can Be in-25-70 degrees environment use.
8. Consider using the occasion for emergency security more spare, suggest users every Year regularly check, put into use full 3 years later, be sure to be strong the Replacement.
9. The battery technology material, with the two years. Battery performances meet International standards IEC61951-2003, circle life in 500 cycles.

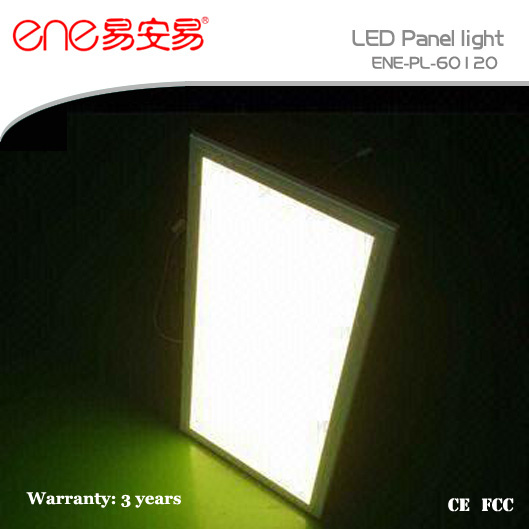

LED Emergency Panel Light
Shenzhen ENE Technology Co., Ltd., founded in 2003, is a professional high-tech Shenzhen ENE Technology was established in 2003 and is a professional high-tech enterprise integrated in the R&D, production and sale of LED application items. Our main products include LED panel light, LED dimmable panel light, LED CCT adjustable panel light, LED RGB panel light and LED emergency panel light. We are one of the key enterprises supported by the National Development and Reform Committee (NDRC) and the National 863 Program.
Our products are widely used in life, decorative and municipal lighting projects. We utilize advanced ASM automatic solid crystal, automatic wire welding equipment and automatic sealant equipment in the industry. We also adopt the purified antistatic international standard facilities for operation at confined spaces during the entire manufacturing process, as well as the multipurpose automatic computer separation equipment from Taiwan for product testing. For your added assurance, we strictly comply with ISO 9001: 2008, ISO 14001: 2004 and OHSAS 18001: 2004 standards, and all our products passed SGS certification.
We always believe in the scientific and humanized management of making the best use of people and objectives, and taking full efforts for all matters, big and small. As a result, we have built a good reputation in the industry and won unanimous praises from domestic and foreign customers.
