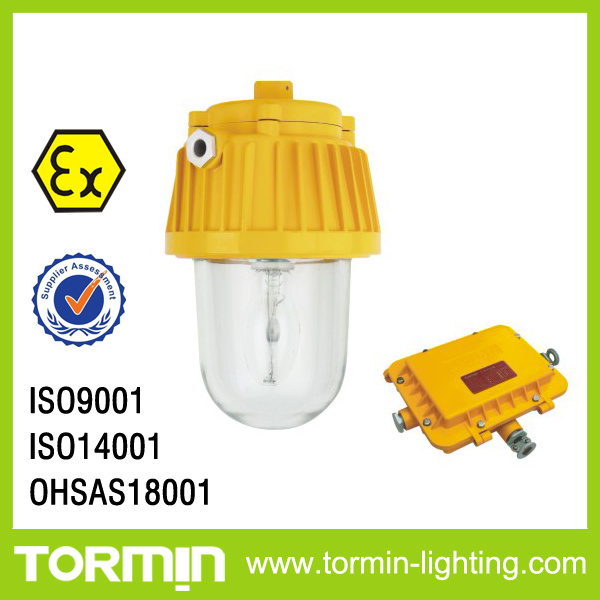

1) 50W 85W electrodeless lamp
2) Ex d II C T6, IP65
3) Aluminium alloy housing, tempered glass
CERTIFICATION & APPROVALS
Ex mark: Exd II C T6
DIP A20 TA, T6
GB Code: CNEx09.0190
Ingress Protection: IP65
Standard:
GB3836.1-2000 GB3836.2-2000
Application:
This product is applicable to fixed lighting in explosive and flammable places, such as the petrochemical device, oil platform, gas station, oil pump station, oil transmission station, etc.
1\Safe to use in Zone 1, Zone 2 or Zone 20, Zone 21, Zone 22;
2\Can be use in Grade IIA or IIB explosive gas environment or flammable dust environment.
Characteristics of Performance:
@It adopts electrode-less light source, with the service life as long as 60, 000 hours. It can save almost 80% energy over the incandescent lamp.
@It uses dual-chamber explosion-proof design, making it safer in explosive and flammable places.
@It can be operated normally under wide voltage range. Its bulb lightness will not be affected by the voltage variation, without flashover. And it can be started and restarted instantly.
@The shell is made of aluminium alloy and have strong resistant to corrosion, water and dust, applicable to various harsh environments. The surface is subjected to the electro static treatment, that enhance the anti corrosion performance.
@It has two cable outlets and can be connected with power supply in series.
@The protective cover is available for the customers to choose.
| Power Supply | AC 220V / 50Hz |
| Ingress Protection | IP65 |
| Anticorrosion Grade | WF2 |
| Insulation Grade | I |
| Spacing Height Ratio | 2.5 |
| Cable Diameter (mm) | Ø 8 - Ø 10 |
| Dimension | Lamp 200 x 315mm |
| Explosion proof ballast box 340 x 220 x 88 mm |
| Weight | Lamp 5.2kg |
| Explosion proof ballast box 4.8kg |
