30W LED Street lights
1. General Description

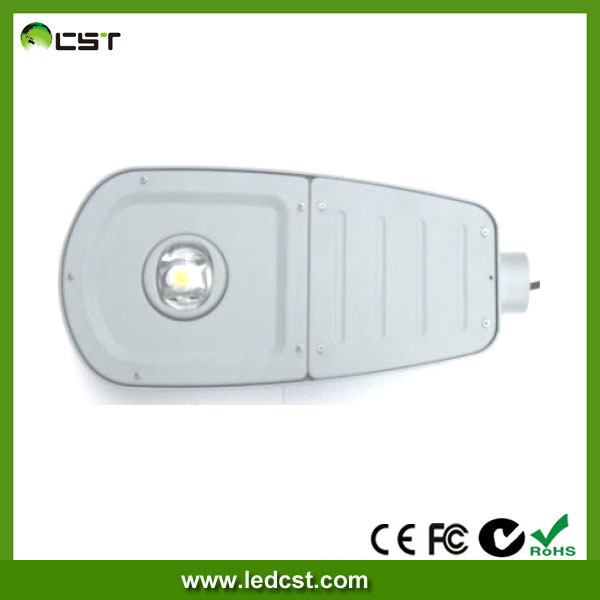

This CST-LS30 street light is a green product of our company, with new type integrated LED light source, high purity aluminum plating reflector, high thermal conductivity aluminum lamp shell and radiating body, high strength toughened glass cover, high effienct constant pressure costant current; Compared with the traditional street light, this type has lots of unique features, such as more effient, energy-saving, more security and enviromental, long lifespan, quicker response and higher CRI. It could be used in the street, square, city, scenery area and so on. It will be the best to replace traditional high pressure street light, besides, it's also the best choice to light square, school personal garden and so on.
2. Features
1)Using the independent intellectual property rights encapsulates the high power LED, which can save electricity more than 65% than the traditional street light.
2) The first radiator and lamp case intergation design, LED directly to the shell and is tightly connected with the ideal cooling effect, and fully guarantee the LED life.
3 )Shell encapsulated with aluminum alloy, which can effective cooling, prevent water, and meet IP65.
4) No bad glare, stroboscope or startup delay, eliminating the disadvantage of the traditional street light.
5)Environmental-friendly without contamination, with no lead, hg or any other pollution elements included, no pollution to the environment.
6)Wide Voltage(AC100-240V), High efficiency, constant current and constant voltage green switch power ( or DC /DC switch powersupply)
7 )Could have a perfect combination with solar and wind energy, and could fully develop its advantages like environment-friendly and energy-saving.
3. Applications
Ø Expressway / public road / city street / pavement
Ø Various of square / school / park / Factory / Residential district / Garden
Ø Other places need outdoor light.
|
LED Chips Quantity |
1 Pcs |
|
LED Consumption |
30W |
40W |
50W |
60W |
|
System Consumption |
34W |
46W |
58W |
69W |
|
LED Luminous Efficiency |
85-110lm/w |
|
Lamp's Initial Flux |
≥2400lm |
≥3600lm |
≥4000lm |
≥4800lm |
|
Color Temprature |
2700k -7000k Typ=5500K |
|
Lamp's Luminous Efficiency |
≥80lm/w |
|
Lumen Maintenance |
70% ( 50000hrs) |
|
Light Distribution |
Please refer to the attachment test report |
Daniell |
|
Operating Temperature |
-25 ~ +55 degree |
|
Storage Temperature |
-25 ~ +65 degree |
|
IP Grade |
IP65 |
|
Life-span |
50000Hrs |
|
Materials |
Aluminium |
|
The color of the lamp shell |
White / Gray |
|
Mounting |
Pole installation |
