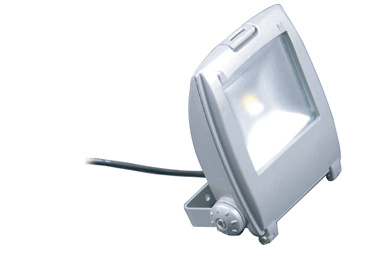

Energy-saving 15W LED projector flood light
KNFL-1510 LED floodlight is kena lighting application of new high power LED light source, high purity aluminum reflector, high thermal conductivity aluminum lamp housing and radiator, high intensity tempered glass, high efficiency, constant current and constant voltage source research and development of high photosynthetic efficiency of green lighting products; And traditional floodlights contrast, this product has high efficiency, safety, energy saving, environmental protection, long life, fast response speed, high color rendering index unique advantages. Can be widely applied to the square, city, area and other parts of lighting, is an alternative to traditional, high energy floodlight optimal scheme; And factories, schools, gardens and other indoor and outdoor lighting is the best choice.
Features
1. The use of independent intellectual property rights of the high integrated high-power LED, compared with the traditional equal brightness floodlight energy-saving more than 65%.
2. The radiator and lamp shell integration design, LED directly with shell closely
Connect with cooling, fully guarantee the LED life.
3. The lamp adopts aluminum alloy die-casting molding, can effective heat dissipation, Waterproof, dustproof, waterproof level through the IP65 standard.
4. No bad glare and stroboscopic, eliminating the common floodlights undesirable glare caused by the glare, visual fatigue and disturbance.
5. Activated without delay, power that is the normal brightness, without having to wait for a long time, the elimination of the traditional lights start process.
6. Green pollution-free, no lead, mercury or other elements of environmental pollution, no pollution to the environment.
7. Selection of wide input voltage (AC100-240V), high efficiency, constant current and constant voltage switching power supply (also use the DC/DC switching power supply).
Applications
1. Factory, stadium, docks, airports, shopping malls and other.
2. Billboards, buildings, lawn, garden design.
3. Cabinets, museum, gallery, art gallery.
The advantage of our company as follows:
1.15 years experience of LED lights;
2. Three factories, they are LED encapsulation factory, indoor lights factory and die-casting factory;
3. High quality and better after-service;
4. Experience of 3-8 years long term collaborating with foreign group companies;
5. Professional team.
|
Product Model |
KNFL -1510 -10W |
KNFL- 1510 -15W |
|
Led Quantity |
1 PC |
|
Led Working Voltage |
DC28±2.0V |
DC38±2.0V |
|
Led Consumption |
10W(10W*1) |
15W(12W*1) |
|
System Consumption |
10.5W±1W |
15W±1W |
|
Led Luminous Efficiency |
80-110Lm /W |
|
Led Initial Flux |
800-1100Lm |
1200-1650Lm |
|
Junction Temperature |
≤80degree |
|
Color Temperature |
2700~7000K Typ:5500K(Note1) |
|
lamp's Luminous Efficiency |
≥75Lm /W |
|
Illumination Uniformity |
>0.6 |
|
Lumen Maintenance |
70%(50000Hrs) |
|
Color Rendering Index |
≥70 |
|
Light Distribution |
Please refer to the
attachment test report
|
Please refer to attached
Light distribution curve |
|
Light Design |
LED+ reflectors with twice light distribution |
|
Driver Working Temperature |
-30 degree ~ +50 degree |
|
Storage Temperature |
-35degree ~ +65degree |
|
IP Rating |
IP65 |
|
Life-span |
≥50,000Hrs(Note3) |
|
Appliance Class |
Class I |
|
Lamp Material |
Aluminum alloy |
|
The color of the lamp shell |
Grey/Black /white |
|
Certificate |
CE |
|
Mounting |
Wall mounted |
