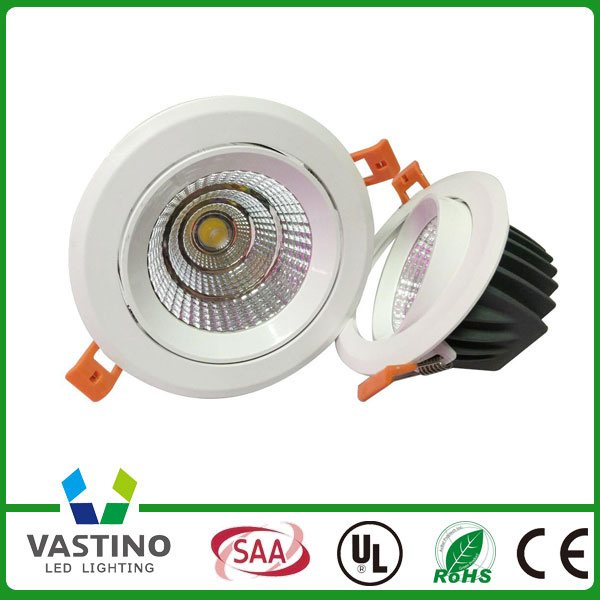

Embeded COB led down light with 3 years warranty
Basic Data:
1. Item No:YSDL-003
2. Main materail: Aluminium+PMMA
3. Lamp size:D80 D105 D130 D160mm
4.3 Years Warranty
LED:
1.LED Brand:Epistar/Cree/Base on requirement
2.LED type:SMD5730
3.LED Working Volatge:AC100-240V
4.LED Working Currents:300±5%ma
Optical Parameter
Model No. |
YSDL-003 |
Led Source |
20*SMD5730/3inch(Sanan)
30*SMD5730/4inch(Sanan)
40*SMD5730/5inch(Sanan)
50*SMD5730/6inch(Sanan) |
Power |
10/15/20/25W |
Lumens |
750lm±10%/3inch
1300lm±10%/4inch
1800lm±10%/5inch
2100lm±10%/6inch |
Input Voltage |
AC100-240V |
Color Temp. |
WW 2800-3000K
NW 4000-4500K
PW 6000-6500K |
Beam Angle |
38°(10W)
25°(15W)
60°/24°(20W/25W) |
CRI |
Ra≥75 |
Mechanical Parameter
Power Factor |
>0.9 |
Material |
Aluminum+PMMA |
Color of Shell |
Grey |
IP Grade |
IP20 |
Lamp Efficiency |
≥86% |
Adaptable Environment |
-20°C to +55°C |
Lamp Working Temp. |
≤70°C |
Packing Info.
Lamp Size |
D90*H50mm/3inch
D120*H68mm/4inch
D150*H70mm/5inch
D180*H70mm/6inch |
Hole Size |
D80mm/3inch
D105mm/4inch
D130mm/5inch
D160mm/6inch |
Net Weight |
0.2Kg/3inch 0.3Kg/4inch
0.42Kg/5inch 0.72Kg/6inch |
Gross Weight |
0.24Kg/3inch 0.35Kg/4inch
0.49Kg/5incg 0.89KG/6inch |
Carton/PCS |
60PCS/3inch 48PCS/4inch
36PCS/5inch 16PCS/6inch |
Carton Size |
Single:W115*L115*H78mm/3inch
W140*L140*H78mm/4inch
W165*L165*H78mm/5inch
W240*L240*H78mm/6inch |
Carton:W480*L600*H255mm/3inch
W440*L580*H330mm/4inch
W515*L680*H255mm/5inch
W500*L500*H330mm/6inch |
Carton Weight |
16Kg/3inch 19Kg/4inch
20Kg/5inch 17Kg/6inch |
Application:
1.Household,living room,Hall
2.Commercial:hotel,supermarket,store
3.office,school,hosptial
