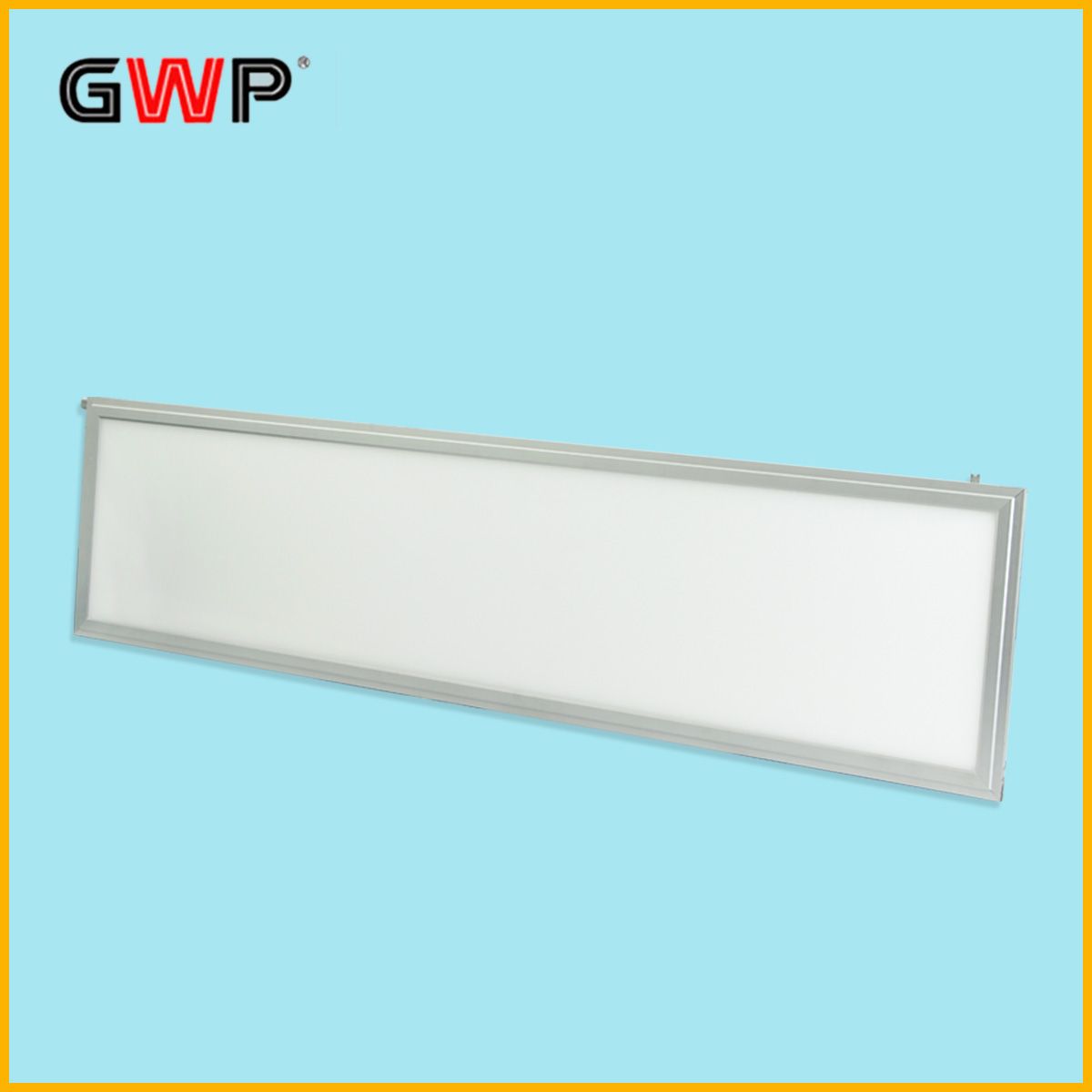

60W 600*1200mm super slim LED panel light
External LED driver, easier for maintenance.
Emits virtually no UV/IR light in the beam.
70% lumen maintenance after 30, 000 hours. 3 years warranty.
Using constand current driving circuit with power factor correction.
Uning micro-chip shunt circuit driving technique to maximum efficiency.
Anti-shake, convenient for transportation.
Solid state lighting. Energy saving lighting product.
Low radiated heat.
Contains no mercury.
|
Heat Sink Specification |
Extrude Aluminum |
|
Cover Material |
Diffused Acrylic |
|
PCB Material |
Aluminum Core PCB |
|
Aluminum Core PCB |
External |
|
Number of LEDs |
384 |
|
LED Type |
SMD 2835 |
|
Size |
596x1196x10.5mm |
|
install type |
588X1179mm |
|
Weight |
8.7kg |
|
Luminous Flux |
4100-4300lm |
|
Light Color |
warm white/cool white |
|
Color Temperature |
3000K/6000K |
|
CRI |
75 |
|
Beam Angle |
120° |
|
Power |
UL/CUL driver 60W |
|
Input Voltage |
100-277VAC |
|
Power Factor |
>0.95 |
|
Operating Temperature |
-37-55 |
|
Storage Temperature |
-40-80 |
|
GL-060AW2 |
Warm White |
GWP Lighting Technology (Dongguan) Co., Ltd, a Hi-Tech enterprise, was established in 1997. We are specializing in developing, manufacturing and selling high quality and high power LED lighting products. We are always in the foreland of LED lighting oweing to the professional R&D team. The most important thing is that we have solved the thermal management successfully. As to the quality, our strict QC system ensure the excellent quality. In addition, we have the advanced and professional LED lighting testing equipments. Our products enjoy a high reputation both in domestic and overseas market for their high quality and our good service. Our products are sold to Europe, America, Japan, Australia and some other areas and countries
The main products are as follows:
1. High power LED bulb (3W, 5W, 7W, 10W, 15W)
2. T5&T8 LED tube.
3. High power LED spotlight.
4. High power LED candle lamp.
5. LED street light.
6. LED strip light.
GWP are strengthening with innovation, credit building up and competent service. We dedicate to be the No. 1 brand in Chinese LED lighting industry. GWP LED lights are going to make the world brighter.
We cherish the chance of cooperating with you!
