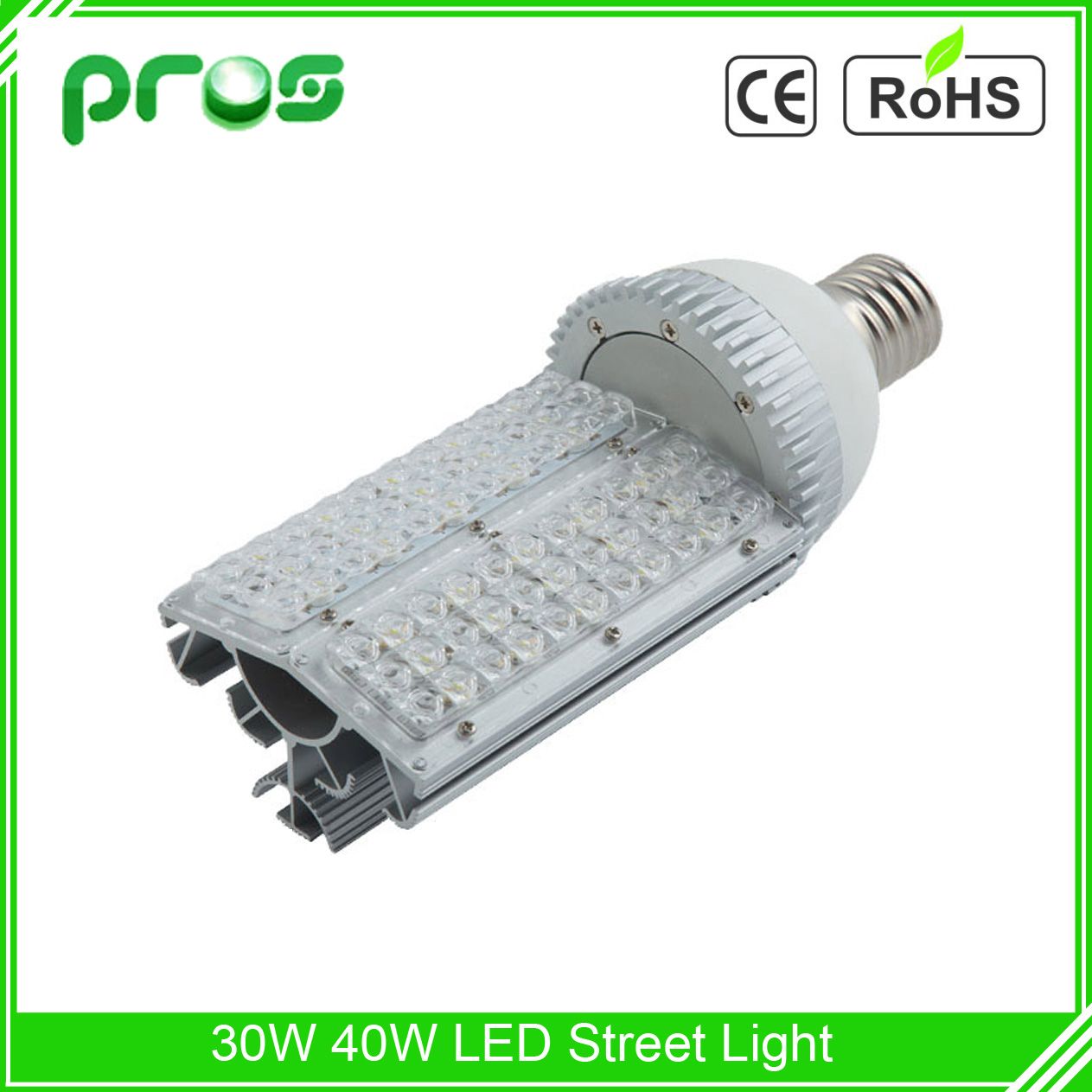

LED street light / street led light/ street lamp
Input voltage for VAC=85-265V, 50/60Hz, 277VAC is also avialable
Input voltage for VDC=12/24/36V Automatically for solar system
Item No.: PL-LD-30W
1. Input Voltage: DC12/24/36V / AC85-265V
2. Power Factor: >0.95
3. LED Consumption: 30W ( 30PCS 1W high power LED)
4. LED Luminous Efficiency: 100-110LM/1W
5. LED Initial Flux: 3000-3300Lm
6. Average Illumination: 26Lux-6m, 17Lux-8m
7. Effective llluminated area: 24*12m² -6m, 30*15m² -8m
8. Color Temperature: 2800-7000K
9. Color Rendering Index: Ra>80
10. Light DistributionCurve/Beam Pattern: Asymmetric(Bat Wing/Rectangular Beam
11. IP Rating: IP60
12. Street Working Life: > 50, 000hrs
13. Light Body& Lampshade Material: Aluminum
14. Net Weight: 1.2kg
15. Base: E39/E40 or E26/E27
LED Street Light Feature:
The lights applied with best light source-LED. Accelerated the unique reflector which was developed by us ourself, it Attains the light onto the road with maximum effect and formed a rectangular light spot. The entire light was made of The aluminum alloy with high index of the heat dissipation, the oxidize surface also ensured the heat dissipation Reliability. Meanwhile the lamp has been designed a respiratory system to ensure the dust resistance, water resistance And self cleaning ability
LED Street Light Application:
The lights mainly applied in high-way, urban major road, secondary road, plaza, park, industry zone, residence area etc.
| ItemNumber | PL-LD-28W | PL-LD-30W | PL-LD-36W |
| Input Voltage | DC12/24V/36V / AC85-265V | DC12/24V/36V / AC85-265V | DC12/24V/36V / AC85-265V |
| Power Factor | > 0.95 | > 0.95 | > 0.95 |
| LED Quantity | 28pcs | 30pcs | 36pcs |
| LED Consumption | 28W | 30W | 36W |
| Rated Consumption | 32W | 33W | 40W |
| LED Luminous Efficiency | > 110LM/W | > 110LM/W | > 110LM/W |
| LED Initial Flux | 2800Lm | 3000Lm | 3600Lm |
Average
Illumination | 6M height | 20Lux | 23Lux | 23Lux |
| 8M height | 10Lux | 13Lux | 13Lux |
| Effective Illuminated Area | 6M height | 27*12m² | 30*12m² | 30*12m² |
| 8M height | 32*14m² | 35*14m² | 35*14m² |
| Color Temperature |
| warm white: 2800-3300K; commercial white: 4000-4500K; white: 5800-6300k |
| Color Rendering Index |
| Ra> 80 |
| Light Distribution Curve/Beam Pattern |
| Asymmetric(Bat Wing/Rectangular Beam) |
| IP Rating | IP60 |
| Working Life | > 50000hrs |
| Light Body& Lampshade Material | Aluminum Alloy |
| Size | 96*265mm | 105*265mm | 105*265mm |
| Interface | E26/E27 or E39/E40 |
Pros Light is an established high-tech factory specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We are especially well-placed in the field of Power LED thermal management and related lighting solutions.
Our product range:
1. LED Street Light
2. LED Bulb & Spotlight
3. LED Downlight
4. LED Panel
5. LED WallWasher & Floodlights
6. LED Explosion proof Light
7. LED High bay light
8. LED Tube T8
9. OEM & ODM Projects
