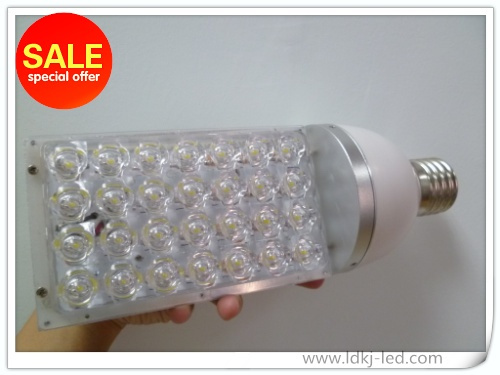

E40 28W LED street light
Application
Major Road, Sub-Major Road, High Way, Bridge
LED street light advantage:
1, high light efficiency, high power LED chip optical performance can reach to to 100LM / W.
2, High utilization of light, LED road lighting can be designed into a directional light source of light, the light source can emits the light to the ground, directly. Almost all the light emits from the light source can high effectively been use, under the reasonable design circumstances, the lamps light efficiency can even reach greater than 90%, and the light utilization of sodium lights just 60%, sodium lights lost a lot of light resources.
3, long life, the theoretical life of LED chip is more than 10 million hours. Is 4 timea then the ordinary street light, LED chips, long-life means that no need to replace the light regular, thus reducing the potential for traffic disruption, reducing the maintenance costs for this purpose.
5, energy saving, environmental protection and reducing carbon dioxide emissions.
6, safe, pollution-free, it does not contain glass, filament, or mercury, so it will not cause lamp explos for the current halogen or high intensity (HID) reason, can guarantee the current consumer safety.
7, high color rendition, greatly improving the clarity of the screen control system, but also help solve the street crime.
8, columnar cooling system, use the cylindrical radiator cooling is more efficiency than conventional sheet cooling, LED junction temperature can sink lower than the average sheet more than 15C Centigrade, and water resistance is better than aluminum radiator.
|
Name |
LE D Street Light |
|
Part Number |
LDKJ-LD-28W |
|
Input Power |
28W |
|
Lamp Flux |
2520 lm |
|
Luminous Efficiency |
90lm/w |
|
Voltage |
AC90-265V |
|
Frequency |
50Hz / 60Hz |
|
AC Power Factor |
> 94% |
|
DC Power Efficiency |
> 85% |
|
Color Temperature |
warm white /neutral white/cool white |
|
Color Rendering Index |
Ra> 80 |
|
Light Source Life |
50000 h |
|
Working Temperature |
- 40 C~ + 50 C |
|
Working Humidity |
10% ~ > 85% |
|
Material |
Aluminum alloy |
|
IP Rating |
IP65 |
|
Lamp Color |
white |
|
overall dimension |
90mm*275mm |
|
N. W |
0.99KG |
