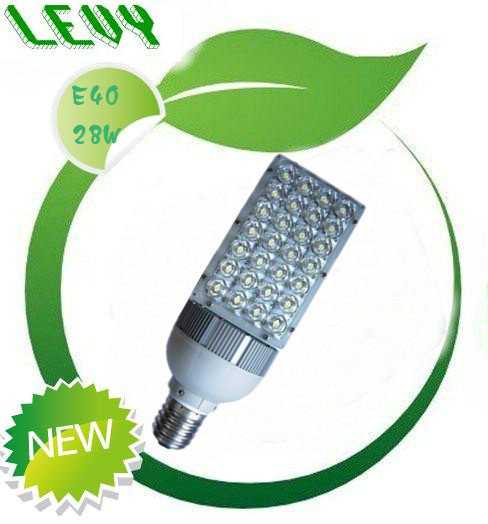

1. Self-developed Q-lights: Low optical decline, high illumination, high efficiency, and patent LED source.
2. Light source arrays to form a rectangular light emitting surface. Exposure rang(15m-6m)
3. E40 base, can360 degree rotation.
4. Replaces 70W HPS Lamps only draw 35 wattages.
5. Working temperature is below 60° C ensuring a long Life time: 30, 000hr
Product Size: 275*90mm
|
Input Voltage |
85-265VAC |
|
Base |
E27 or E40 |
|
Frequency Range |
47 ~ 63 Hz |
|
Power Factor(PF) |
0.9 |
|
Total Harmonic DistortionTHD |
20% |
|
Power Efficiency |
83% |
|
Working Voltage |
24V DC |
|
Light power |
28 w |
|
LED Luminous Efficiency |
≥ 80 lm/w |
|
LED Initial Flux |
2, 500 lm ( Tj=25 ) |
|
LED Maintain Flux |
2, 300 lm ( Tj=70, Ta=25) |
|
Lamp Output Flux |
2, 100 lm ( Tj=70, Ta=25) |
|
Lamp' s Efficiency ( %) |
> 90 % |
|
Illumination ( E ) |
(Height=6 m )≥ 13 luxEqual to HPS 33 lux |
|
(Height=8 m ) ≥ 7.5 luxEqual to HPS 19 lux |
|
(Height=10 m )≥ 4.5 luxEqual to HPS 11 lux |
|
(Height=12 m )≥ 3 luxEqual to HPS 7.5 lux |
|
Effective Illuminated Area |
20× 8 m (Height=6 m ) |
|
26× 10 m (Height=8 m ) |
|
33× 13 m (Height=10 m ) |
|
40× 16 m (Height=12 m ) |
|
Color Temperature |
Cool White: 5, 500 ~ 6, 300 K, Warm White: 2500∼ 3500K |
|
Color Index(CRI) |
Ra75 |
|
Beam Angle |
The Horizontal Axis: 120° , The Vertical Axis: 60° |
|
Junction Temperature ( Tj ) |
70 ° C ± 1 0% ( Ta= 25 ° C ) |
|
System Resistance ( Rja ) |
1.4 ° C / W |
|
Working Temperature |
- 30 ° C ~ 40 ° C |
|
Working Humidity |
10 % ~ 90 % RH |
Working environment temperature |
– 20 to +50 |
|
Working Life |
> 50, 000 Hrs |
|
Light Body & Lampshade Material |
Aluminum Alloy and PC |
|
The Dimensions(Units: mm) |
90x275 mm |
|
Net Weight (g) |
1.2 kg |
|
IP Rating |
IP 60 |
Shenzhen Liweida Optoelectronics Co., Ltd. is located in Futian of Shenzhen and specializes in researching, developing, producing and exporting indoor and outdoor high power LED lamps. Our company has many years' history. Our products are produced in accordance with CE (EMC, LVD) and RoHS standards. We have many series of products to meet the LED LAMP market's demands, including LED spotlights, LED cup lamps, LED ceiling lamps, LED flashlights, outdoor lamps and LED bulbs. During these years' market analysis and development, our products are exported to many countries and regions, such as America, Europe, the UK and Australia.
