Home LED Light Products Double COB LED Down/Ceiling Light (LM-D6430-16)

Double COB LED Down/Ceiling Light (LM-D6430-16)

Double COB LED Down/Ceiling Light (LM-D6430-16)
Price: US $ 11-12/Piece
Trade Terms: FOB,EXW,others
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union

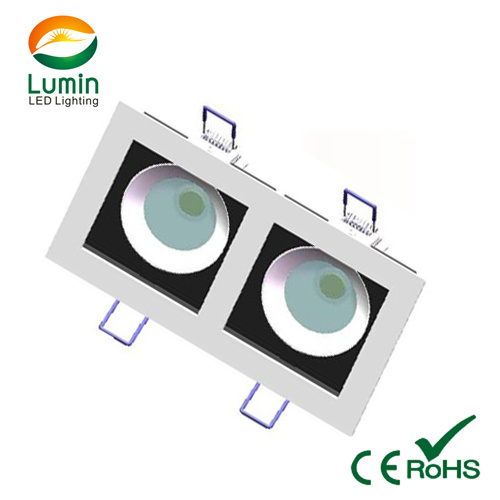

Double 18W COB LED Down/Ceiling light

Lumin Lighting LED ceiling light is lower energy but more brightness ceiling lights.  The LED ceiling light makes it possible to achieve extremely low power consumption without sacrificing light quality in general lighting applications. This results in significant energy savings compared with traditional CFL ceiling light. It features the latest LED technology and delivers consistent light output, stable color performance and high color rendering. Light body use die-cast aluminum with black baked finish, which ensured the heat dispersion and the daintiness appearance. In addition, this series have 4", 6", 8", 10" alternatives.

  • Model NO.: LM-D6430-16
  • Power consumption: 18W
  • Dimension:  185*100*73mm
  • Input voltage: AC100-240V
  • Output voltage: 42-45VDC,350mA
  • Color temperature: 2700-3000 K ; 4500-5000 K; 6000-6500 K
  • Constant current: 350mA
  • Lumen output: 350 LM
  • CRI: Ra>70
  • Power factor: PF>0.8
  • Anti-electric shock rate: ClassI
  • Temperature rising: <20
  • Protection class: IP20
  • Material: Cast-Aluminium

Product Features of COB  LED Ceiling light

1. High efficacy, Minimal 70lm/W, up to 75lm/W
2. Energy-saving, over 70% compared to incandescent lamps
3. Constant current driver, no strobe, no harmless to eyes and                                    ensure LED lamp to have a long life time
4. Constant light output and even lighting
5. No mercury, environment friendly.
6. No mosquito around the lights compared with tradtional lights
7. No UV or IR radiation, Harmless to human body
8. Detachable power source, convinent for your change

  Widely replaces traditional fluorescent, CFL and incandescent light at home.

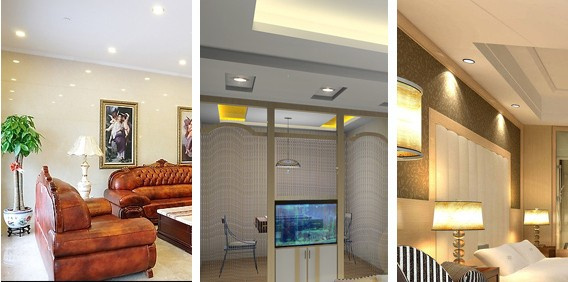

      Shopping malls, hotels, restaurants, bar, museums, cosmetic counters, showcases, villa home and residential building.


Why Lumin Lighting?

0.An audited manufacturer and supplier by the third party SGS;

1.A customer- trusted brand in the LED lighting industry;

2.Over 5 years LED lighting R&D, producing and exporting experience;

3.Using first-class LED light source, such as CREE, Philips LumiLEDs,etc.;

4.Using reliable LED drivers such as Meanwell;

5.Providing stable quality and good after-sales services;

6.Providing faster and cheaper international logistics services.

led ceiling light,led down light ,LED Downlighting, led down lamp,led downlight,led ceiling light,led ceiling lamp

Optical & Electric Light Source warm white natural white cool white
Lumen (lm) 2*480 2*500 2*550
Color Temperature ( K) 3000K 4200K 6500K
CRI 70
Beam Angle  24
Decay Rate (%) less than 3% within 1000 working hours
System Power (W) 16-18W
 Lifespan (Hrs) ≥30000Hrs
High Voltage Testing  1750Vac/1min
LED Light Engine Lighting Efficacy 100LM/W
Chip Quantity 2*35PCS
Series-Parallel Way 2*7S5P
Voltage 44-46V
Current 350mA
LED Driver Input Parameter 100 ~ 240VAC , 50/60Hz
Power Factor 0.9
Output Parameter 42-45VDC,350mA
Structure Material  Cast-Aluminium
Dimension 185 *100*73 mm
Cut-out 160 *95 mm
Protection Class calss I
IP Rating IP20
Environmental  Applications hotel \ home-lighting \ recreation place \ supermarket \ office building
Operating Temperature  -25    ~  50 \ 10%  ~  90% R.H.
Storage Temperature  -30   ~  85 \ 0%  ~  95% R.H.
Packing Qty/Ctn carton size N.W G.W
20 PCS/ Ctn 445*275*550mm 16Kg 18Kg
Prod Model: LM-D6430-16
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension: 185*100*73mm
Lighting Efficacy: 70lm/W
Cut-out: 160*95mm
Beam Angle: 24
Power Factor: 0.8
Input Parameter: 100~240VAC, 50/60Hz
Output Parameter: 42-45VDC, 350mA
Protection Class: Class I
IP Rating: IP20
Light Source: LED
Installation: Embedded
Material: Aluminum
Application: Hotels, Restaurants, Shopping Mart
Lamp Installation: Plug Lamp
Source Number: Single Plug
1. Lumin Profile

Based in Shenzhen, Lumin Lighting is a fast-growing semiconductor lighting manufacturer and supplier in China. Lumin Lighting was founed on November 17, 2008. Since its founding, Lumin Lighting is committed to developing, manufacturing, and popularizing LED lighting products, responding to the government policy of energy-saving, emission reduction, and maintainable development. Nowadays, Lumin Lighting has already been successful in providing quality LED lighting products and green lighting solutions to thousands of families, institutions, and communities worldwide.

Lumin Lighting product lines mainly include LED panel light, LED tube light, LED downlight, LED bulbs, LED strip, and LED street light, LED flood light, LED garden light, and LED underground light. Meantime, Lumin Lighting also provides customized lighting solutions to customers.

Lumin Lighting takes product quality as our lifeline. We focus on quality control during the whole production process by seriously carrying out ISO 9001 Quality System and ISO Environment Management System. At the same time, we emphasize training of skills and capabilities of our workers and staff to improve production management. The products manufactured have already been awarded with certificates of CE, RoHS, and UL by authoritative organizations. With good quaity control, our products are well received by customers throughout the world.

Lumin Lighting has an excellent research and development team. New products are launched and old ones are refined every year. At present, Lumin has been recognized as a leading LED lighting brand in the global market. Our products have been exported to over 30 countries and regions in the world such as Spain, France, Italy, Japan, and India, establishing close business relaton with local distributors, lighting consultants, building contractors as well as end users.

Facing severe global warming and energy crisis, Lumin Lighting would like to work with anyone who loves the earth and environment protection in order to make a better place for the human being, by utilizing and popularizing our green LED lighting products.

2. Core Value

Devotion, Action, Sustainability, Responsibility

3. Business Philosophy

Lumin Lighting is devoted himself to providing quality LED lights and services to families, institutions and communities through continuous innovation. We always believe that "the customer is always right". The customer complaint is always fast responded as long as any feedback comes. And we always believe that "win-win strategy" can help us keep long-term business relationship with customers
