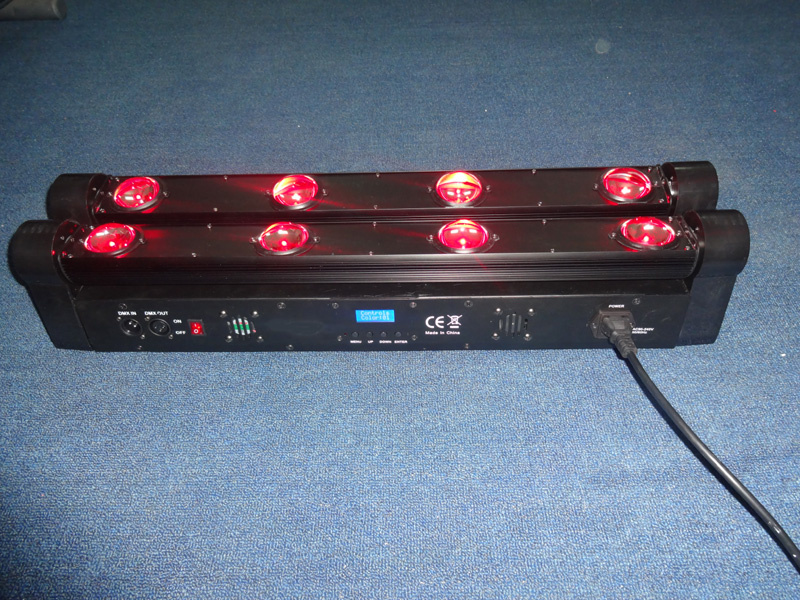

Double 4pcsx10W 4in1 LED Beam Moving Head Light
Price: |
US $ 200-240/Piece |
Trade Terms: |
FOB |
Min Order: |
1/Piece |
Pay Type: |
T/T,Paypal,Western Union |
Feature

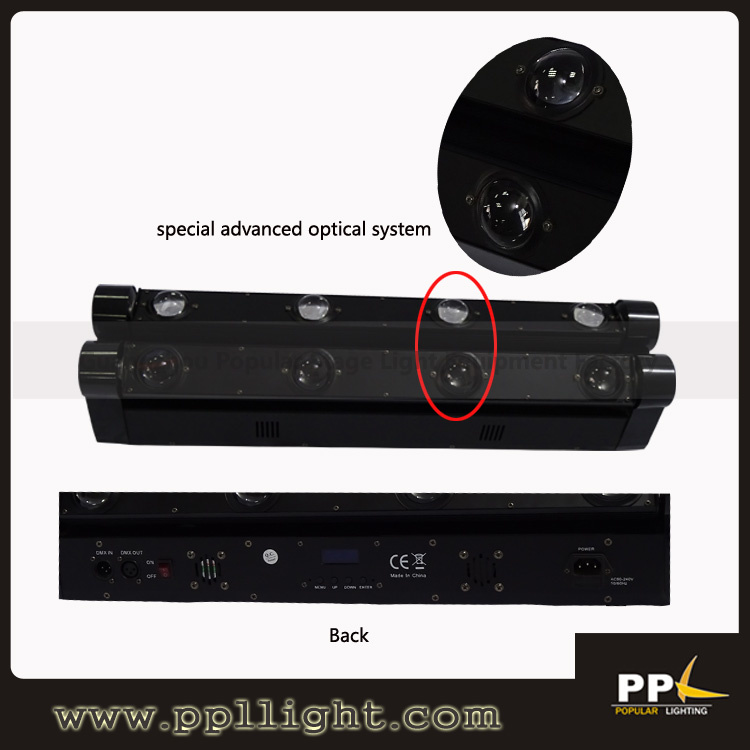

1. Each LED can be controlled individually, special advanced optical system
2. High light output, Each led 1770Lux@7m
3. 18t/s strobe and pulse effect, exvellent color mixing and rainbow effect
4. Low noise fan cooling system
LED-M0410BEAM
Double Line 8x10W led moving head beam bar light
Specification:
Voltage: AC90~245V, 50~60Hz.
Power consumption: 100W.
LED: 8*10W RGBW 4-in-1 Cree LEDs
(singal white LumiEngin also available ).
DMX channels: 13/37channels
Movement : Ror smooth and precise resolution pan 540 optional, Tilt 265 movement;
Strobe : Strobe effect with 18 flashes per second and pulse effect ,excellent color mixing and rainbow effect
Beam Angles ; LINEAR 15(16 BIT)
Housing; composite plastic(IP 20)
protection : Fan cooling over heat protection
working environment : Indoor -15 to 40 degree packing
Dimension ; 650*400*220MM
N/G.W: 9.0/10Kgs
DMX Channel:number | function | instruction |
1 | Motor 1 | Motor 1 location |
2 | Motor 2 | Motor 2 location |
3 | Motor | motor speed |
4 | general dimming | R\G\B\W general dimming , linear dimming from dark to light . |
5 | general strobe | R\G\B\W general strobe,from slow to fast |
6 | function selection | 0--10:DMX 10/38CH control; 11--30:jump change;(motor controllable) 31--50:gradual change;(motor controllable) 51--70:pluse change ;(motor controllable) 71--90:run;(motor controllable) 91--110:sound control 1;(motor controllable) 111--130:sound control 2; (motor controllable) 131--150:jump change;(motor uncontrollable) 151--170:gradual change;(motor uncontrollable) 171--190:pluse change;(motor uncontrollable) 191--210:run;(motor uncontrollable) 211--230:sound control 1;(motor uncontrollable) 231--255:sound control 2 ( motor uncontrollable ) |
7 | function speed | Function speed , from slow to fast |
8 | R dimming | R dimming ,linear dimming, from dark to light |
9 | G dimming | G dimming,linear dimming,from dark to light |
10 | B dimming | B dimming,linear dimming,from dark to light |
11 | W dimming | W dimming,linear dimming,from dark to light |
Product Show:
Prod Model: |
LED-D0410Beam |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Hs-Code: |
95054090 |
Package: |
Carton/Flight Case |
Work Environment: |
Indoor -15-40 Degree |
Packing Dimension: |
650X400X220mm |
Light Source: |
LED |
Material: |
Aluminum |
Strobe: |
Adjustable Speed Strobe |
Control Mode: |
Dmx Signal Control |
IP Rating: |
IP20 |
Certification: |
RoHS |
Emitting Color: |
RGBW/Single White |
Control Channel: |
13/37CH |
Voltage: |
90V-240V |
Guangzhou Baiyun Popular Stage Light Equipment Factory is a professional stage lighting manufactory which provides integrated services of research, production, marketing, after-sales inquiry, repair and maintenance. Our equipment are widely used in professional theater, entertainment centers, bars, parks, clubs, nightclubs and multifunctional units of conference halls. Compliant with CE and RoHS standards, our products main involve LED moving head lights, LED PAR lights, controllers, Moving head light, etc.
with strong beliefs in "Practical, Professional & Powerful" to the products, the company provides remarkably superb lighting Performance to all Professional Audience.
Hope we can grow together on the coming days.
