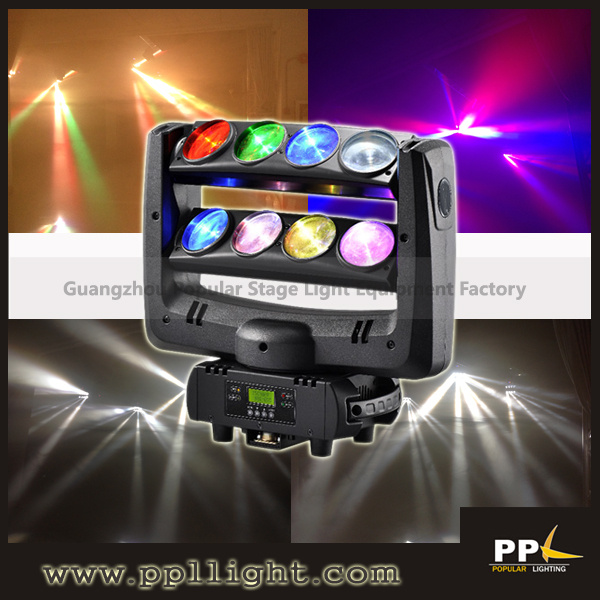

Feature:1. High power led lamp, strobe effect2. Extremely long life3. Beam angle 6.5° For RGBW, 4.5degree for white4. Runs extremely cool,no duty cycles ,runs all night5. Very low consumption ,connect more units in a signal circuitSpecification:
Power voltage: AC 100-240V, 50/60Hz
Power consumption: 80W
Light sources: 8 X 8W RGBW LED/signal white
Beam angle: 6.5° For RGBW, 4.5degree for white
DMX channel: 1/7/13/37 Channel
Control modes: DMX, Master/Slave, Sound Active, easy controller CA-8 /CA-9 (Optional)
DMX channel: 1/7/13/37 Channel
Control modes: DMX, Master/Slave, Sound Active, easy controller CA-8 /CA-9 (Optional)
Pan/Tilt: 540° / 230°
Effect: Delivering long-throw colorful multi-beam effects
Dimmer: 0~100% smooth dimming
Strobe: Variable strobe speeds
Dimension: 414X153X376mm
Weight: 6.5Kgs
DMX Channel:
| channel 37 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | ^^ | 37 |
| function | x motor route | Y motor 1 route | Y motor 2 route | general dimming | storbe | LED 1 red dimming | LED 1 green dimming | LED 1 blue dimming | LED 1 white dimming | ^^ | LED 8 white dimming |
Guangzhou Baiyun Popular Stage Light Equipment Factory is a professional stage lighting manufactory which provides integrated services of research, production, marketing, after-sales inquiry, repair and maintenance. Our equipment are widely used in professional theater, entertainment centers, bars, parks, clubs, nightclubs and multifunctional units of conference halls. Compliant with CE and RoHS standards, our products main involve LED moving head lights, LED PAR lights, controllers, Moving head light, etc.
with strong beliefs in "Practical, Professional & Powerful" to the products, the company provides remarkably superb lighting Performance to all Professional Audience.
Hope we can grow together on the coming days.
