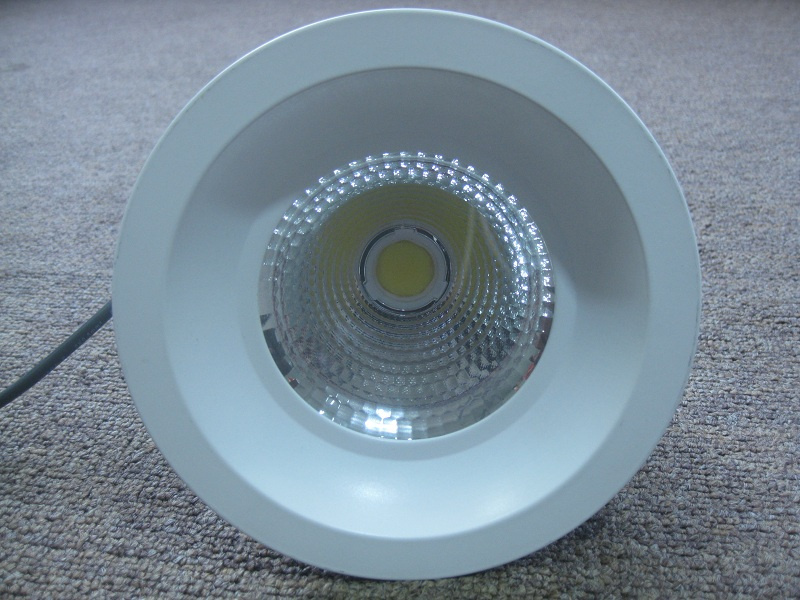

CE&RoHs 8inch recessed LED down light
8000hours lifespan led down light
Product Description
Technical parameters
Model No. | Power | Light efficiency | Lumen (White) | Equal Lumen (White) | Available Angle | Reference Direct Replacement MH | Color Temperature | Light Size | Working Voltage |
|
| LS-RSL15 | 15w | 120lm/W | 1800 | 3600 | 20,40,60degree | 30W | 2800-3500K
5000-6000K
6500-7500K | 3.5Inch | 110/220V AC |
| LS-RSL27 | 27W | 120lm/W | 3240 | 6480 | 50W | 4Inch | 110/220V AC |
| LS-RSL37 | 37W | 120lm/W | 4440 | 8880 | 70W | 5Inch | 110/220V AC |
| LS-RSL40 | 40W | 120lm/W | 4800 | 9600 | 80W | 6Inch | 90-295V AC |
| LS-RSL50 | 50W | 120lm/W | 6000 | 12000 | 100W | 8Inch | 90-295V AC |
| LS-RSL60 | 60W | 120lm/W | 7200 | 14400 | 120W | 8Inch | 90-295V AC |
| LS-RSL70 | 70W | 120lm/W | 8400 | 16800 | 140W | 8Inch | 90-295V AC |
| LS-RSL80 | 80W | 120lm/W | 9600 | 19200 | 160W | 8Inch | 90-295V AC |
| LS-RSL100 | 100W | 120lm/W | 12000 | 24000 | 200W | 8Inch | 90-295V AC |
Feature
1.High Quality High Stability Led lamp
2.2-4 times brighter than conventional light
3.3rd Generation Direct Heat Path Technology, 2-5 times better stability
4.Anti-Glare System, suitable for any occasions
5.IP54, underwater use support
Details
|
Product: | 3.5 Inch | 4Inch | 5Inch |
| 6Inch |
| 8Inch | 8Inch | 8Inch | 8Inch |
| Type | (3.5 ) | (4 ) | (5 ) |
| (5 ) |
| 6 ) | (8 ) | (8 ) | (8 ) |
|
|
|
| Model No.: |
| Recessed LED Downlight: LED |
|
|
|
|
|
|
|
|
|
|
|
|
| Input Voltage: |
|
|
|
| 220V/AC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Frequency: |
|
|
|
| 50Hz |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Power: | 13W | 24W | 33W |
| 40W |
| 50W | 60W | 70W | 80W |
| Electronical |
|
|
|
|
|
|
|
|
|
|
|
| Power Factor: |
|
|
|
|
| 0.9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| TotalHarmonicDistortion |
|
|
|
| <20% |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Cover Material: |
|
|
| PC(diffuse) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Beam Angle: |
|
|
|
| 20°,40°,60° |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| LED Quantity: |
|
|
|
| 1pcs |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Optical | Luminous Efficiency: |
|
|
|
|
| ≥80 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Color Temperature: |
|
| 3000K 4000K 5000K 6000K 7000K |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ColorRenderIndex |
|
|
|
|
| ≥80 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Lamp | HousingMaterial |
|
|
|
| Metal+PC cover |
|
|
|
| Structure |
|
| +PC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Installation Type: |
|
| Recessed Type (refer to the Manual) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Application: | Hotels, Supermarkets, Hospital, Aisles, Metro Station, Restaurants, Offices |
| etc. (with dry indoor) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Ambient Humidity: |
|
|
|
| 10%~90%R.H. |
|
|
|
| Others |
|
|
|
|
|
|
|
|
|
|
|
| Ambient Temperature: |
|
|
|
| -20ºC~+45ºC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Storage Tempertature: |
|
|
|
| -20ºC~50ºC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| HousingTemperature |
|
|
| <60ºC (Ta=25ºC) |
|
|
|
| (working): |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Lifespan: |
|
|
|
| 80000H |
|
|
|
| (Ta 25ºC) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Packaging & Shipping
Packing
1.Carton Packing
2.Wood packing
Remarks
1. Cut off Electricity before installation.
2. The product only used in DRY environment
3. Please do not block any objects on the lamp (distance scale within 70mm),
which will definitely affect heat emission while lamp's working
4. Please double check before getting electricity on if wiring is100% OK,
make sure Voltage for lamp is right and no Short-Circuit.
