Prod Model: |
UP-B330V |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Lamp: |
Philips Msr Platinum (8000k, 300W) |
Color Temperature: |
8000k |
Average Life: |
2000 Hours |
Color System: |
1 Color Wheel with 9 Dichroic Color Filters Plus W |
Gobo System: |
1 Rotating Gobo Wheel with 17 Fixed Gobos+ White |
Strobe Frequency: |
0.5 to 12 Per Second |
Prism: |
8-Facets Rotating Prism |
Frost: |
Frost Filter 0~100% Linear Frost |
Dimmer: |
0~100% Linear Dimmer |
Zoom: |
Double Motors Linear Adjustmen |
Light Source: |
LED |
Material: |
Aluminum Alloy |
Emitting Color: |
Changeable |
Strobe: |
Electronic Strobe |
Control Mode: |
Dmx Signal Control |
IP Rating: |
IP20 |
Certification: |
RoHS |
Control Channel: |
20 Channles |
Voltage: |
240 |
Product Description

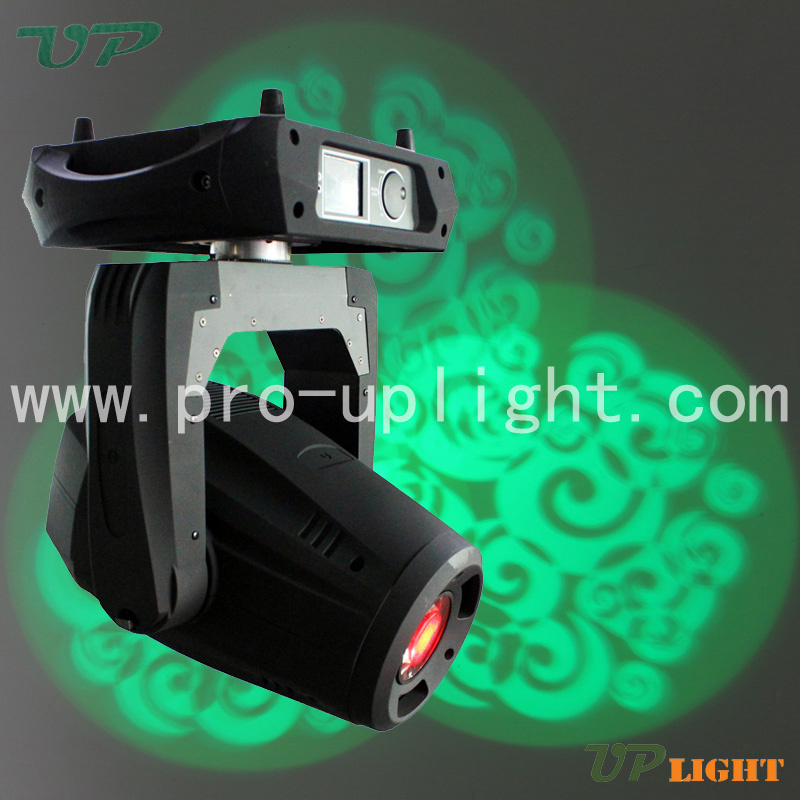

DJ Light 330W Spot Beam Moving Head Stage Light
Youtube Demo: https://youtu.be/EkwBvKV1Xew
Power Supply: 100~240V AC, 50/60Hz (E-ballast)
Power Consumption: 450W
Light Source: PHILIPS 15R (OSRAM SIRIUS HRI 330W 7500k / YODN 15R optional)
Optical System: 3-lens group, high efficiency reflector, zoom 5 degree.
Colors: CMY Color Mixing System;1 Color Wheel with 6 color filters plus white. Variable speeds and bi-directional rainbow effect.
Rotating Gobos:8 rotating Martin Viper Spot Gobos+ white.
Fixed Gobos: 1 rotating gobo wheel with 14 fixed gobos+ white.
Prism/Frost: 3-facet rotating Prism + Frost Filter
0~100% linear frost
Dimmer: 0~100% linear dimmer, Double strobe/shutter blades, multi-strobe function
Head movement: Pan 540º, Tilt 270º with auto position correction
Pan/Tilt fine function, 8 bit /16 bit
16PCS steppers
Beam angle: 0°~5°, Linear zoom
Control: International standard DMX512 signal, 5 pin interfaces.
16/20 channels, Self-test mode
LCD touching display, word-inverted function
Physical Features: Housing Composite plastic (IP20)
Net Weight 21.5Kg
Packing: Carton/Double flightcase
Channel | Function |
CH1 | Pan |
CH2 | Tilt |
CH3 | Pan fine |
CH4 | Tilt fine |
CH5 | Pan/tilt speed |
CH6 | Dimmer |
CH7 | Strobe |
CH8 | Atomization |
CH9 | Color |
CH10 | Color speed |
CH11 | Gobo |
CH12 | Gobo speed |
CH13 | Prism |
CH14 | Prism rotation |
CH15 | Prism amplification |
CH16 | Focus |
CH17 | Lamp on/off |
CH18 | Reset |
CH19 | Dimmer, prism, frost speed |
CH20 | No function |
