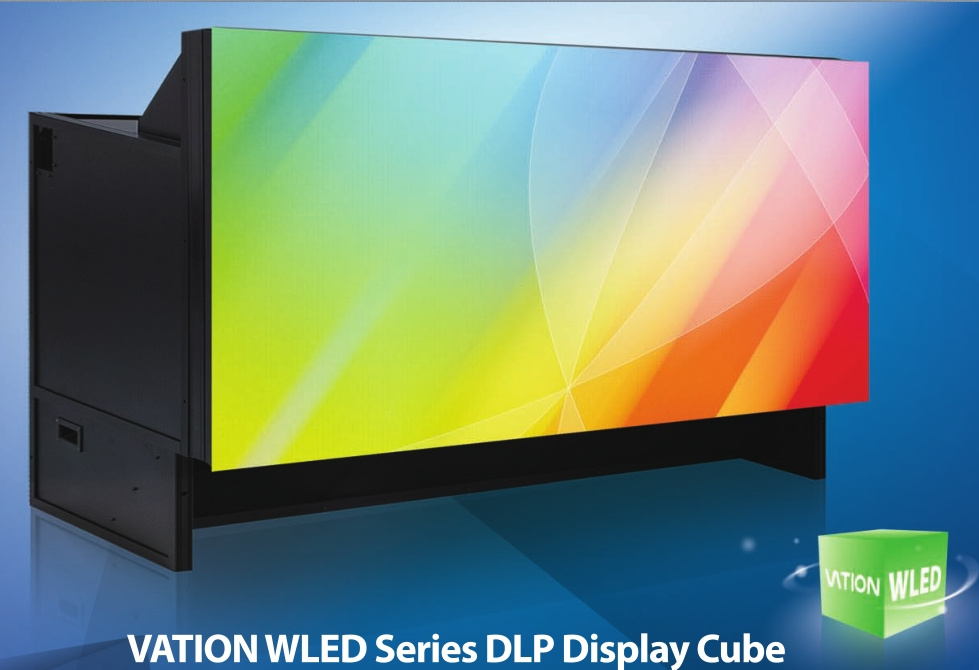

VATION brand WLED series 16: 9 video wall, 1920*1080, 1200ansi
The new generation of WLED series with 16: 9 ratios can display 1080P signal with perfect correspondence to these HD signals. VATION is the sole company which has the completed series of LED illumination cubes (50", 60", 67", 70") in the world, opening the widescreen era of the industrial DLP display wall.
Advantage
3x6 LED light source redundancy, first adopted by VATION in China.
HDR+ Image Processing Chip
HDR is the abbreviation of High Dynamic Range, for example HDRI or HDRR. The dynamic range means the ratio between top value and the minimum. The current 16 bits integer format value is marked as 0(black) or 1(white), but no over range value, for example the color value of the highlight in the metal interface which is whiter than the traditional white.
Under the help of HDR, the over range value is available to render more realistic 3D effect.
Super wide color gamut with refined wide angle performance
LED series products have the feature of ultra-wide gamut, excellent color and stable brightness. And they are added an extreme enjoyment of the wide angle horizon. With the BrilliantcolorTM of TI, they can perfectly present the true color of the nature, and then give audience a true nature.
12 dynamic regulation points and smoothening rim technologies ensure the gap between screen is < 0.2mm and gap between image is < 0.4mm.
VATION innovative 12 dynamic points regulation devices and smooth edge design is a creation in the splicing wall industry which make the gap between screen is within 0.2mm and gap between image is within 0.4mm.
ODE
The cabinet adopts the international advanced ODE oxidation spraying process, which is suitable for more environmental requirements. (be solid and antistatic, fastness for long period, anti-humidity, corrosion prevention)
TI 16: 9 HD Chip
Full HD display chip with ratio 16: 9 and native resolution 1920*1080 is adopted to correspond to HD signal.
It has a higher display resolution to display exquisite and delicate super high resolution signals, such as GIS, GPS vector map, electricity SCADA graph with high resolution etc.
Full HD
It supports the 1080P HD signals input, which can realize automatic phase adjustment of the HD signals.
Color Temperature Selection
Adjustable color temperatures from 3200 K to 10000 KHL meet different watch requirements of different customers.
Intelligent Color and Brightness Adjustment Technology
A built-in sensor adjusts the color and brightness, and ensures the consistence of color and brightness over multi-screen for a long time.
RGB LED without color wheel
LED light source supply RBG tricolors directly, no need color wheel filtering and separating the light. Avoiding any light or color loss; Maintenance requirements are greatly reduced for the high efficiency of the light and no color wheel failure.
Ultra-long life time of LED (60, 000-80, 000hours)
This feature makes it needless to replace light source, combined with VATION cubes' other advantages, dust-proof, anti-shake and ageing resistance, results in ultra-long maintenance intervals.
Humanized Man-Machine Interaction Interface
The Chinese regulation menu is preset in the cube, which is convenient to maintain and adjust for the engineering staff.
Environmental Protection
No UV or toxic substance, no eyes or body harm, LED light source is more environmental protection.
WLED |
Display mode |
TI 0.95" DLP™ DMD@LVDS |
Aspect ratio |
16:9 |
Resolution |
1920×1080 |
Brightness |
900ANSI(typ) |
Dynamic contrast |
15,000,000:1 |
Color uniformity |
> 95% |
Optical splicing gap |
< 0.4 mm |
Physical splicing gap |
< 0.2 mm |
Flatness |
< 0.3 mm |
Signal interface |
Input |
Processor signal |
Digital
RGB |
1channel,
DVI-D |
H:23-120KHz
V:24-120Hz
Dot clock:25-165MHz |
Video |
Video |
1channel,
1BNC |
NTSC,PAL,SECAM,
480I 576I 1080P 50/60Hz |
RGB |
Analog
RGB |
1channel,
D-sub 15p |
H:23-120KHz
V:24-120Hz
Dot clock:25-165MHz |
1channel,
5BNC |
RGBCYM
color admin |
separated |
Dual input standby |
VGA/DVI |
control |
RS232 |
D-Sub 9 Male |
Light source |
Mode |
RGB LED light |
Lifetime(average) |
60000-80000Hrs |
Power |
AC voltage |
AC100-240V |
Frequency |
50-60Hz |
Rate |
300W |
Working temp. |
0-60 ( recommend:25± ) |
Humidity |
20-80% (non-condensing) |
