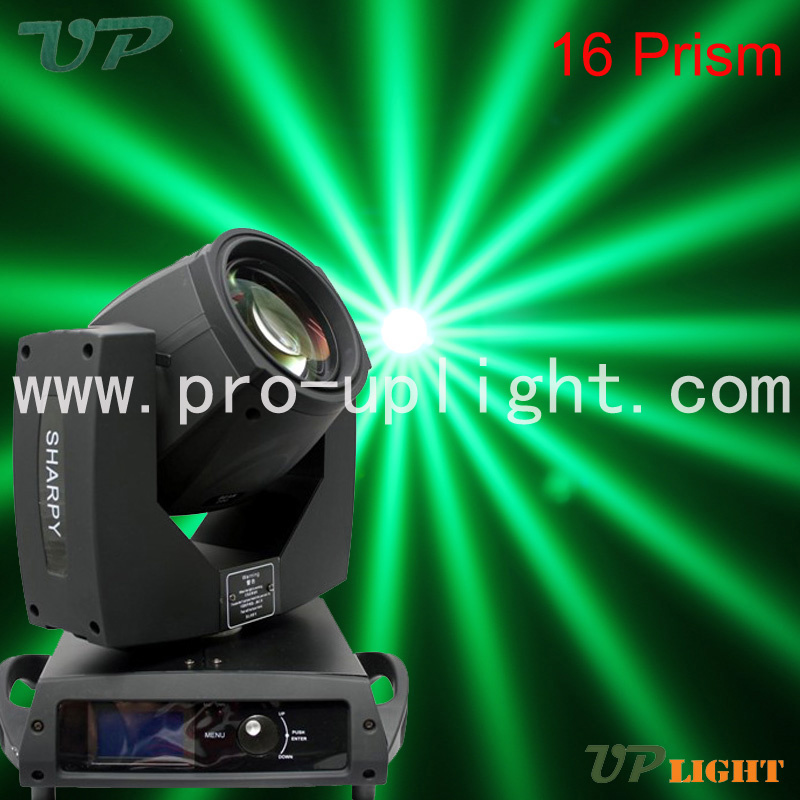

disco light 230w 7R sharpy moving head stage light
Youtube Beam Demo
https://youtu.be/9ILMNZMzj-Q
https://youtu.be/-UZwem5vDlI
Input voltage:100-240V, 50/60Hz
Machine Power:500W
Light source:Osram P-VIP 230W;PHILIPS MSD Platinum 7R;YODN MSD Platinum R7 230W;
Color system:One color wheel with 14 colors + white. Color fitters can be changed.
Gobo system:One fixed Gobo wheel with 17 gobos +open with shaking function.
Channel :18CH;
Beam angle:0° ~8 °
Color temperature: 8, 500 K
Average life: 2, 000 h
Lens:3pcs Yilong lens group with electronics zooming 0~3.8 degree
Strobe:Support mechanical strobe & adjustable speed stobe effect
Prism:8-faceds prism with rotation and zoom in/out function
Focus:0%~100% linear focusing
Zoom:0%~100% linear zooming
Frost:0%~100% linear frost
Control mode:DMX512 signal control with 3 pin interfaces & LCD display
Ballast :Electronics ballast and AC/DC power supply. Power factor is more than 99%, THD<20%.
Head movement:- PAN = 540° - TILT = 270°, 8bit/16bit precision scanning with auto position correction;
Features:is a best choice for stage lighting of Theater, opera house, auditorium, T stage,club, disco
vocal concert, etc. It is brighter than beam 300. It is 100% high copy Claypaky.
Environment temperature:-15° C ~45° C
IP rating:IP20
Shell material:Aluminum alloy composites plastic
Package size:523*337*511mm
Gross weight:19KG
Channel list:
Channel | function |
| Ch 1 | Pan |
| Ch 2 | Tilt |
| Ch 3 | Pan fine |
| Ch 4 | Tilt fine |
| Ch 5 | Pan/Tilt speed |
| Ch 6 | Dimmer |
| Ch 7 | Strobe |
| Ch 8 | Atomization |
| Ch 9 | Color |
| Ch10 | Color fine |
| Ch 11 | Gobo |
| Ch 12 | Gobo shake |
| Ch 13 | Prism |
| Ch 14 | Prism rotate |
| Ch 15 | Prism amplification |
| Ch 16 | Focus |
| Ch 17 | Lamp on/off |
| Ch 18 | Reset |
