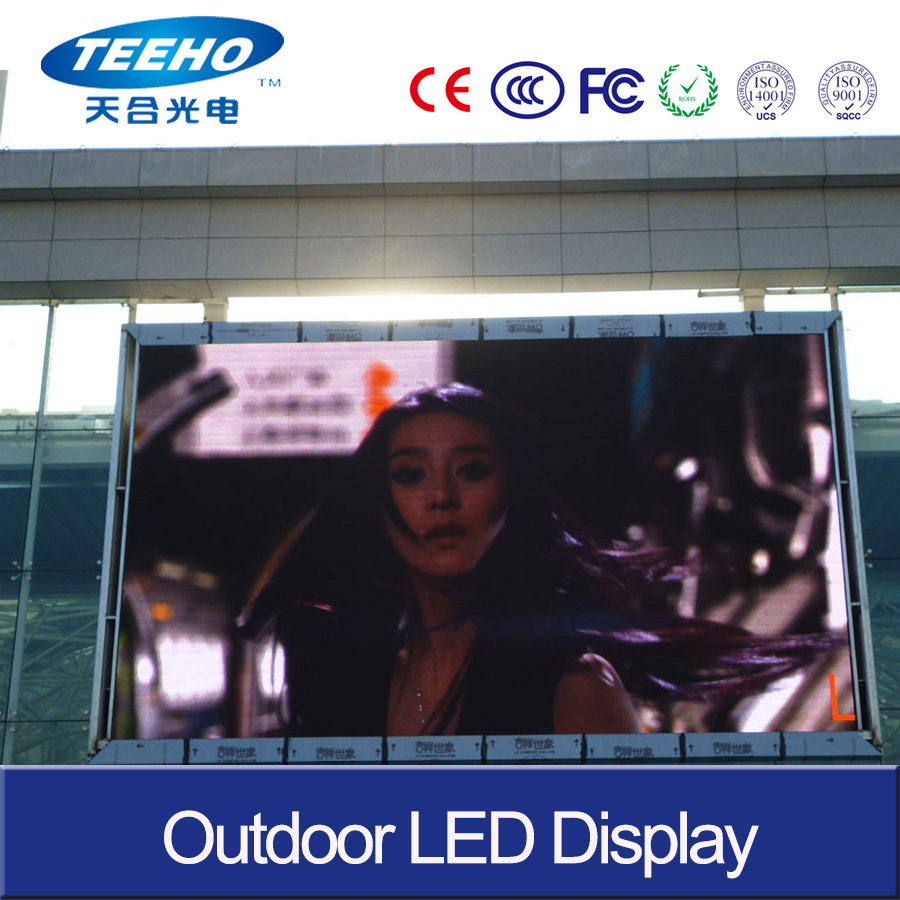

DIP346 P10 Outdoor LED Display For Advertising
Any size can be customized,pls contact us for your size.
Indoor Led Display IP43,Outdoor Led Display IP65.
PRODUCT DESCRIPTION
1.Clear picture without flicker and distortion
2.Low Consumption , Stable Performance ,Highly Durable
3.Within one year after consignment from factory.
4.Wide Viewing Angle, Seamless Splicing ,High-definition ,Mute Design ,High Contrast
Model Number |
P10 |
NO. |
Technical Parameters |
Parameters Values |
1 |
Pixel Pitch |
10mm |
2 |
Pixel Configuration |
DIP346 |
3 |
Density | 10000pixels/m2 |
4 |
Module Size(L×W) | 160mm×160mm |
5 |
Cabinet Size(L×W) | 960mm×960mm |
6 |
Module Resolution |
16×16 |
7 |
Cabinet Resolution |
96×96 |
8 |
Driving IC |
MBI5041 |
9 |
Driving Method | 1/2scan |
10 |
Brightness |
7500cd/m2 |
11 |
Contrast |
1000:01:00 |
12 |
Grey Procssing |
16bit |
13 |
Frame Frequency |
65Hz |
14 |
Refresh Rate |
>3800Hz |
15 |
Working Voltage |
AC85-264V |
16 |
Working Area |
Outdoor |
17 |
Power Consumption |
Max Power:<850W |
Average power: <600W |
18 |
Horizontal Viewing Angle |
120º |
19 |
Vertical Viewing Angle |
120º |
20 |
MTBF |
≥50000 hours |
21 |
Life Span |
100,000 Hours |
22 |
Operating Temperature |
Working : 35 - 90ºC |
Storage : 10 - 99ºC |
23 |
Environment Temperature |
-30ºC to 60ºC; humidity Rh10% to 95% |
24 |
Remote Control |
Can realize remote control,For the possibility of potential failure logging, and send alarm signal to the operator (need to customize) |
25 |
Self-checking Technique |
LED a single point of self-inspection, communications test, power test, temperature monitoring (need to customize) |
26 |
System Operating Platform |
WindowsNT,Windows2000,WindowsXP,Windows7 |
27 |
Power Supply |
AC 85-264V |
PACKAGING&SHIPPING
1)Within 15-27 days after receiving deposit.
2)Wooden case, plywood case and flight case choosen by customers.
OUR SERVICE
1)We guarantee all our display, modules, spare parts for ONE years after consignment from factory.
2)We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3)After warranty, we also can offer you the parts for replacement at our bottom price.
4)After sales, if you have any problem about our product, you can inform us by e-mail, we will reply you at once when we get it and offer you a good solution to solve the problem.
COMPANY INFORMATION
Shenzhen Teeho Optoelectronic Co.,Ltd. is a professional LED display R&D production, sales as one of the world's best solution providers. Companies registered capital of 10 million, employs more than 300 people. Trina Industrial Park covers an area of 10000 square meter, is equilipped with automatic-equipped automatic production lines, can produce up to 8000 square meters.
Teeho Optoelectronics was founded several years,accounting for 10% of the total R&D engineering team of professional staff, laid the foundation for new product development and Teeho to meet customer specific applications, we have developed a variety of high-definition screen, and in the high-end indoor and outdoor full color resolved program areas achieved impressive results. We have passed the ISO9001:2000,CCC,CE,FCC,RoHS and other qualifications.
