LED street light, Type: SP-1016, Belongs to Singbee 360 series
Newest design
Module type
High light efficiency more than 93%

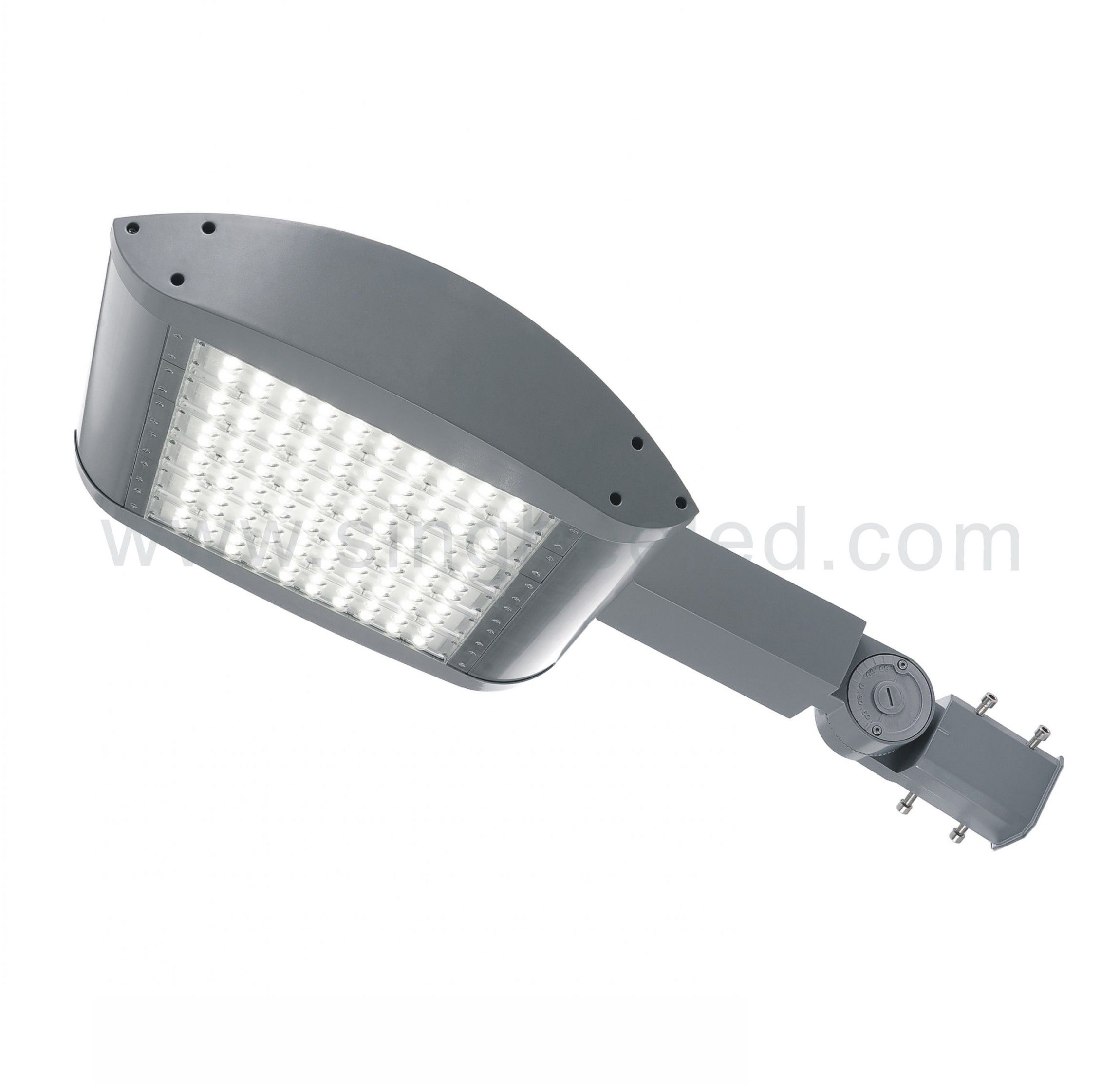

LED Street Light SP-1016
** Material of die-cast aluminum housing, Special Aluminum alloy modules
** SP-1016 has 2 to 7 LED module bars, providing a range of 7 different wattage.
** The high heat conductive alloy modular plays a key role on the 360 design. Instead of one big heat sink to dissipate heat for all LED, cutting to several heat sink bars increase surface area further speeding up heat dissipation. The modules also has special design airflow system uses natural ventilation. Constantly providing of fresh breeze of cooling. Applying all heat dissipation.
** The 360 all uses the Meanwell Driver HLG series. Together with Meanwell, Singbee Lighting now offers an extended warranty for the 360. Extended in time and service.
Power(W) |
40W |
60W |
80W |
100W |
120W |
150W |
200W |
Modular Number |
2 Bar |
3 Bar |
4 Bar |
5 Bar |
6 Bar |
7 Bar |
7 Bar |
Number of LED |
40 |
60 |
80 |
100 |
120 |
140 |
140 |
Luminous Flux |
4200 lm |
6300 lm |
8400 lm |
10500 lm |
12600 lm |
15750 lm |
21000 lm |
IP |
66 |
66 |
66 |
66 |
66 |
66 |
66 |
Net Weight |
9 Kg |
10 Kg |
11 Kg |
12 Kg |
13 Kg |
14 Kg |
14.5 Kg |
X Dimension |
272 mm |
343 mm |
414 mm |
485 mm |
556 mm |
627 mm |
627 mm |
Rated Voltage |
90~264VAC/90~305VAC |
Color Temperature |
6000K / 4500K / 3500K |
Ra |
75 |
