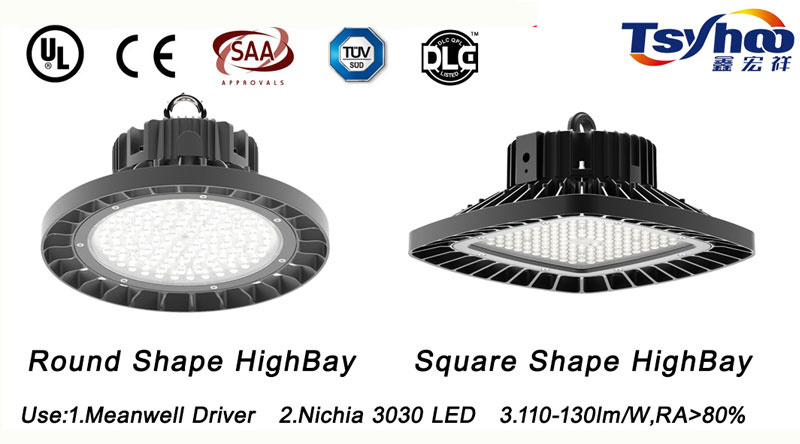

Dimmable LED High Bay Light 0-10V 100W LED Light
| Price: |
US $ 140-143/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
dimmable led high bay light 0-10V 100w led light

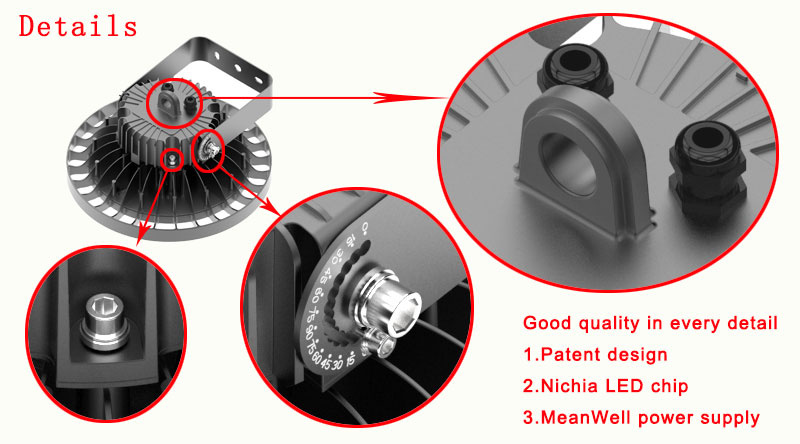

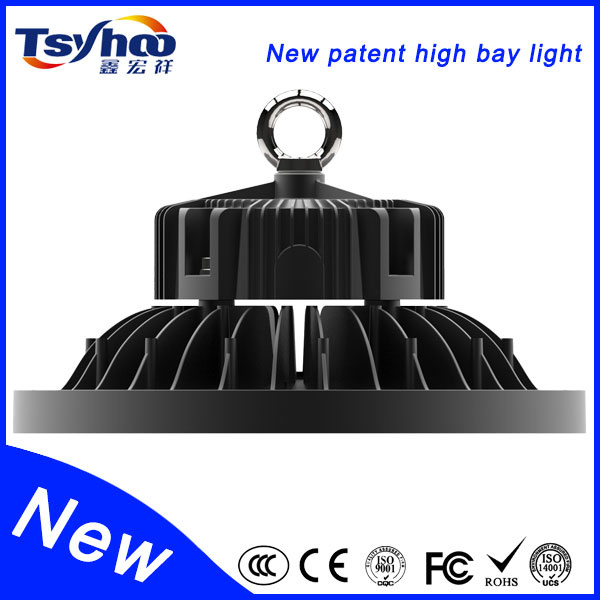

Specification:material:aluminium profile1.Patent design
2.Nichia LED chip
3.MeanWell power supply
4.Lumens:>120lm
5.CCT:2800-6500K
6.CRI:≥80%
7.LED power:100W-200W
8.Input:AC85-265V 50-60Hz PF>0.9
9.Lift time:>50,000Hours Widely used in workshop, warehouse, gas station, subway station, airport, etc
Name
Item | RR-HBL100-X LXXXXXX AXXX DX CXX IXX DX | RR-HBL150- X LXXXXXX AXXX DX CXX IXX DX | RR-HBL200- X LXXXXXX AXXX DX CXX IXX DX |
|
| Electrical | Power | 100W | 150W | 200W |
|
| Input Voltage | 90-305VAC |
| Input Current | 0.46A@220VAC | 0.62A@220VAC | 0.91A@220VAC |
|
| PF | >0.95@220VAC |
| DC Vout | 50-60VDC |
| DC Vout | 1.6A | 2.45A | 3.3A |
|
| Dimming (Optinal) | 3 in 1 dimming (PWM, 1-10V, Resistor) |
Photometric | CCT | Warm(4000K/Ra80),White(5700K/Ra70 and Ra80) |
| Ra >80 | Typical Flux | 10000 Lm±10% | 18750 Lm±10% | 22000 Lm±10% |
|
| Efficiency | 110 Lm/W±10% | 125 Lm/W±10% | 110 Lm/W±10% |
|
| Ra >70 | Typical Flux | 11000 Lm±10% | 20250 Lm±10% | 24000 Lm±10% |
|
| Efficiency | 120 Lm/W±10% | 135 Lm/W±10% | 120 Lm/W±10% |
|
| LED Brand | Nichia 3030 |
| LED Numbers (pcs) | 117 | 234 | 234 |
|
| Beam Angle | PC lens with 60°and 90° |
| LDC (Polar) | |
| LDC (Linear) | |
| Others | Operation Temp. | -40ºC ~ +45ºC |
| Storage Temp. | -40ºC ~ +85ºC |
| Life Circle | 45ºC 50000 Hours |
| IP Class | IP65 |
| Certification | CE,CB,CCC,RoHS |
| Body Color | Black (MOQ is required for other color demand.) |
| Product Size(mm) | Customized Driver | 300*300*156 | 360*360*167 | 360*360*167 |
|
| Meanwell Driver | 300*300*167 | 360*360*193 | 360*360*193 |
|
| Net Weight (kg) | 3.5 | 5.4 | 6.1 |
|
| Packing Size(mm) | Customized Driver | 368*368*216 | 424*424*270 | 424*424*270 |
|
| Meanwell Driver |
| Gross Weight (kg) | 4.3 | 6.4 | 7.1 |
|
| Mounting Type | Pole (default), Chain (optional), Bracket (optional) |
1. Xinhongxiang Optoelectronics (Shenzhen) Co., Ltd is LED products manufacturer, build in 1996, cover 20,000 m².
2. Fully automatic production lines, Advanced production equipment, Strong R&D Team.
3. Products have exported more than 100 countries, Such as Brazil,USA,Mexico,Canada,Germany etc.
4. Service before sale: technical support, design schemes; Training after order:software,operate,maintain.
5. Certificate: CE,FCC,UL,RoHS,CCC,ISO etc.
Our service goal
What you think is what we need to do!
What we promise is what we are fulfilling!
Warmly welcome your visiting!!!
| Prod Model: |
XHX-RHB-R100W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Chip Brand: |
Nichia |
| Lead Time: |
3 Working Days |
| Life(H): |
50000hrs |
| Power Factor: |
>0.9 |
| Voltage: |
220V |
| Weight: |
2 PCS/CTN, 4.7kg/CTN |
| Size: |
425xh424mm |
| Color: |
Warm White Nature White Cool White |
| LED Driver: |
APC-35-700 (Meanwell) |
| Mounting Height: |
12-13m |
| Usage: |
Household Appliances |
| Emitting Color: |
White |
| Beam Angle: |
60?? |
| Power: |
120W |
| LED Chips: |
Nichia |
| IP Rating: |
IP66 |
| Certification: |
CE |
| Life: |
50000 |
Xinhongxiang Optoelectronics (Shenzhen) Co., Ltd. As one of the most leading LED Products manufacturer in Shenzhen China, covering 10 000 square meters, register capital high up to 30 million CNY, is one high-tech enterprise focus on researching, producing, sale and service of LED products, . Nowadays Xinhongxiang owns fully automatic production lines, independent purifying workshop, researching center, most advanced production and inspection equipments, which guarantee the quality of the LED products. All the products have exported more than 100 countries, such as USA, Mexico, Canada, Brazil, Chile, Argentina, Panama, Colombia, Germany, France, Sweden, Italy, Spain, Russia, Poland, Turkey, Ukraine, South Africa, Egypt, Saudi Arabia, Singapore, Thailand, India etc
Developing History:
From 1996 to 2010, Xinhongxiang Optoelectronics (shenzhen) Co., Ltd, mainly involved in LED encapsulation and LED Display.
Since 2010, owe to enlarge the company scale and build up self-owned brand, Xinhongxiang focus on LED lighting, Shenzhen BESDLED Co., Ltd focus on LED display, business involved in indoor and outdoor LED Encapsulation, LED Display and LED Lighting Products.
LED Display:
Full Color Indoor and outdoor LED Display, single or dual basic color LED signs, LED Curtain, LED Dance Floor, Rental LED Display,
LED Lighting:
LED Bulb, LED Tube, LED Spotlight, LED DownLight, LED Panel Light, LED Street etc,
Comparing with many of LED Manufactures, xinhongxiang owns the following advantages to be your best choice for long term cooperation partner.
1, Fully automatic production lines
Xinhongxiang owns the entire LED manufacturing line, from original Semiconductor to LED chip, then assemble to LED display and LED lighting products.
2, Advanced production equipment
SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP LED, Spectrum and Color Separation Machine, LED oven, Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. Are equipped for our LED Product production.
3, Many Certification approved to clear up the trade barriers
CE, FCC, UL, RoHS, CCC, ISO9001: 2000 etc are obtained.
4, Strong R&D Team
Xinghongxiang absorb many talents, with more than 500 staffs, and including more than 100 engineers and technician, which paves the way for R&D for new products and excellent sales service
5): After-Service,
Principles: Response in time, solve problem ASAP and ensure the use.
Period: During warranty period, free of all maintenance charges;
After Warranty, only charge the material cost.
All the life time, Technology support is free.
