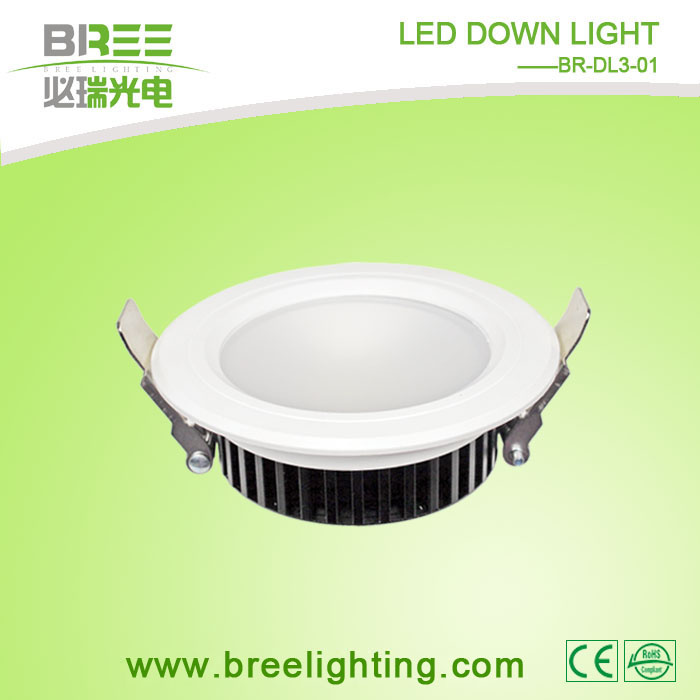

Product Description Model No.: BR-DL3-01
Productivity: 50000PCS/Month
Trademark: BREE
Origin: China
Transportation: By Air, by Sea, by Express
Input Voltage: 100 to 240 VAC, 50/60Hz
Base Material: Aluminum
Beam Angle: 25, 45, 60
Shape: Round
Light Source: Epistar LEDs
Certificate Standard: CE&RoHS
Export Markets: North America, South America, Eastern Europe, Southeast Asia, MID East, Eastern Asia, Western Europe
Features:
1) LED: Epistar Power LED Emitter Watt (95~105LM each)
4) Constant Current 350mA Operation, To Be Used with 350mA Constant Current LED Driver
5) Colors Available: White (CCT 6000~6500k), Warm White (CCT 2800~3200k) or other color temperature range specified by customer
6) Beam Angle: 25° , 45° , 60° .
7) Aluminum Housing
8) Proprietary Housing Design for Best Thermal Management & Lumen Maintenance
9) Lumen Maintenance: 70% at 50K Hours
10) Warranty: 3 Years
11) Solid-state, High Shock or Vibration Resistant
12) No UV or IR Radiation
13) Major Reduction in Power Costs
14) Dimming Option is Available soon
Benefits:
1, Long lifespan: > 50, 000 hours
2, High efficiency, energy saving, brightness and stability
3, Green light without harmful emission
4, excellent heat dissipation
5, No UV or IR radiation
6, Satisfy CE and RoHS requirements
7, Solid-state, high shock/vibration resistant
8, Warranty: 3 years
Guidelines for application
1, 2700K --Home, Restaurant, Hotel, Lobby, Boutique
2, 3000K--Libraries, Offices, Stores
3, 4100K--Showrooms, Bookstore
4, 5000K--Museums, Jewelry stores, Hospital
5, 5600K>--Used to simulate outdoor conditions
Trade terms:
1, Samples can be delivery in 3-7 working days
2, shipping cost are quoted under customers' requested
3, shipping port: Shenzhen
4, Discount according to order quantity
Packaging:
Neutral packing or according to customer's request
Beam angles: 25, 45 and 60°
Component part: Finish turning processed aluminum housing, PMMA optical lens, Epistar chip encapsulated LED high power and external transformer
Colour Temperature:
Cold White: 6000K-6500K (Type); 5000K-5500K (Optional)
Nature White: 4000K-4500K
Warm White: 3000K-3500K(Type); 2700K-3000K(Optional)
Certificate: CE, RoHS
|
Model No. |
BR-DL3-01(4 Inch) |
|
Input power |
15W |
|
Input Voltage |
AC85~265V |
|
Input Frequency |
50HZ/60HZ |
|
LED Type |
Epistar SMD 5730 |
|
Luminous efficiency |
82lm/W |
|
Average Illuminance |
CW: 1M=150lux; 2M=37lux
NW: 1M=143lux; 2M=35lux
WW: 1M=135lux; 2M=32lux |
|
Color Temperature |
3000k~6500k |
|
Efficiency |
> 85% |
|
Power Factor |
> 0.90 |
|
CRI(Ra) |
> 75 |
|
Working Temperature |
-20 ~ +45 degree Celsius |
|
Warranty |
36 months |
|
Certificate |
CE & RoHS |
|
Delivery time |
200pcs 5-7days; 500pcs 10-12days |
|
Lifespan |
40, 000~50, 000hrs |
Bree Lighting was founded in 2008, is a research & development, manufacturing light source in one of the professional lighting company, the company produces a new generation of compact energy saving lamps and LED lighting products. In recent years, companies have been grown in the possession of strong technical force and high-quality support of scientific research personnel, while the introduction of Japan, Taiwan and successfully developed the core technology of light out of line with next-generation stent technology standards LED T5 lamps and LED T8 fluorescent tube. This product is built-in power, small size, so that there is enough space for heat dissipation LED and lamp power cord to do without the use of internal connections, the installation more convenient, safer, longer life. A VNU's current innovative projects will lead the lighting industry, a fundamental innovation.
Bree lighting quality as the first goal, continue to study, innovation was always adhere to the belief, the company has advanced and complete testing equipment and production equipment, can be carried out strictly for each batch of prenatal and postnatal testing, which can Produced in accordance with the requirements of international standards to ensure the quality of products shipped. The company has passed, ENERGY STAR, CE, FCC, RoHS certification and many other international standards, the products are exported to Europe, America and Southeast Asia and other countries and regions, the majority of customers trust and praise!
Shenzhen Bree Lighting is a company, having the right to import and export approved by the State Economic and Trade Commission. The company mainly engaged in importing and exporting of all kinds of lighting, lighting accessories, household appliances and other general non-state restrictive goods. And our annual trade amounted is more than 10 million dollars. Our staffs are all professional on foreign trade business, and familiar with foreign trade practices. We have our own foreign trade storage, also we have the whole quality assurance system throughout the process, from warehouse entry, testing, formal storage to shipment. Our tenet is" quality and service are the first". We have very good after-sales service system and can solve various problems of customers.
Bree Lighting will provide the best products and service. We focus on:
-LED flood light
(RGB/PIR/12V/24V/85-265V)
-LED tube light
(Waterproof T10/ Match with electronic rectifier/Dimmable/ Rotation/ Low voltage T8/ Uniform T5)
-LED down light
(COB / high power)
We sincerely welcome a wide variety of exchanges, cooperation and trade negotiations at home and abroad.
