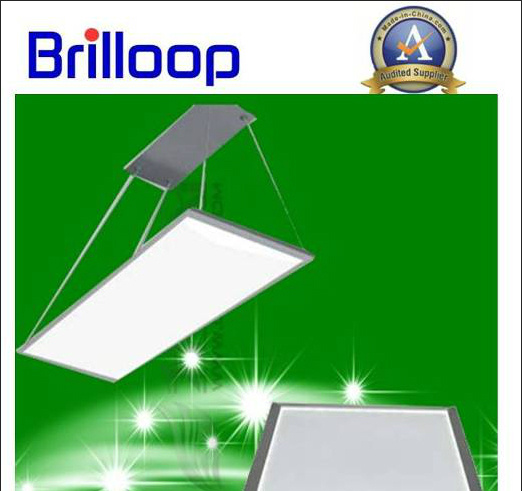

600x600 RGB LED Panel Light
Power: 55W (four sides bright)
Lighting Source: SMD LED3528 768PCS
Dimension: 620*620*13mm
Color: CW/WW/W
RA>70
Lumen Flux: 3900-4200lm
Life Span: >50000Hours
Feature:
1. Appearance: Rational structure, modern design, scientific design of heat dissipation and optics. High-level Aluminium edge. Which is better for the heat disspation of LED itself and keep a longer life span.
2. Stability: Wide voltage output, No harsh glare, Activated without delay, Highpower factor, Lumens depreciation <5‰ , Eyesight protection, Specially usein long time work and study circumstances.
3. Lighting effect of the whole panel light 80lm/W, Advanced lighting features. Compare with traditional fluorescent lamp, this LED panel save over 3 times electricity in the same luminance intensity.
4. Self-design and strictly testing LED driver, We assure the high quality and good after-sale service.
5. The light transmission of LGP (light guide plate) is 85%. More evenly light and higher lumens.
6. PRO-environment and safe product. No mercury, no UV radiation, all the energysaving light can not reach this high-level.
7. Easy installation. Wire hanging installation & embedded installation for option.
Application of LED panel lamp:
1. Commercial Lighting \Office Lighting \Warehouse Lighting \Supermarket Lighting;
2. IT, Call Centers, Shops and showrooms, Kitchen/pantry, hospitals, hotels, and other public places.
Package of LED panel ceiling:
A. Description
Individually package for each LED panel. EPE Foam protection, assure the safety in the express.
B. Procedure
Step 1: EPE Foam protect the panel.
Step 2: Put the 1 PC stuff into the box. Finish the packing of inner box.
Step 3: Put the inner box to out box. 8 PCS inner box/out box.
Notice:
1) No pressing or striking
2) Transport and handle carefully
3) Pay attention to the voltage before using
4) Ambient temperature: 0° C-+50° C;
5) Indoor use only
6) No twisting when power is on
Application:
Commercial Lighting, Office Lighting, Warehouse Lighting, Supermarket Lighting
Applied to hotel, meeting room, factory, office, home, school, hospital, ect.
Remark:
1. All the shape, size, color, brightness is available here and OEM and ODM is welcome;
2. Can design according to clients' requirements.
|
Dimension: |
595*595*12.4 |
Power: |
55W |
|
Material: |
Aluminium + Acrylic |
LED Type: |
Taiwan SMD 3014 |
|
Surface Treatment: |
Anodic Oxidation |
LED Qty: |
528 pcs |
|
Colour Temperature: |
Optional (2800K - 7500K) |
Voltage: |
AC85-265V |
|
Colour: |
W/CW/WW/RGB |
Frequency: |
50-60Hz |
|
Beam Angle: |
120° |
Work Temperatur: |
-20C-+40C |
|
CRI: |
> 70 |
Lifespan: |
50, 000 Hrs |
|
Luminous Flux: |
3900-4200 lm |
Net Weight: |
4.8Kg |
|
Remark: |
Non-dimmable |
Install type: |
Pendant/Recessed |
Brilloop group Co., limited is a high tech enterprise dedicated to LED lighting industry. Our company is founded on the firm belief of offering the highest quality, fully warranted LED lighting products to our customers with the most competitive price.
Known as solid-state lighting, LEDs present many advantages over traditional incandescent light sources including lower energy consumption, longer lifetime, smaller size, greater durability and reliability. Moreover, unlike fluorescent bulbs, LED bulbs are mercury free. It is commonly believed that LED is ideal light source. Brilloop offer an extremely wide range of LED lighting products, from indoor to outdoor, from general lighting to decorative lighting, you can find a variety of light fixtures here, such as LED light bulbs, LED tube lights, track lights, recessed lights, pendant lights, panel lights, ceiling lights, etc.
We have strict quality policy and effective QC system to ensure everything is under control on all process and all parameters of outgoing products are in spec, all effort are aimed at guaranteeing customer's satisfaction, which is always our belief.
We hope to establish far-reaching commercial relations and develop solid international partnership with you, let's make a contribution to the global energy conservation together.
