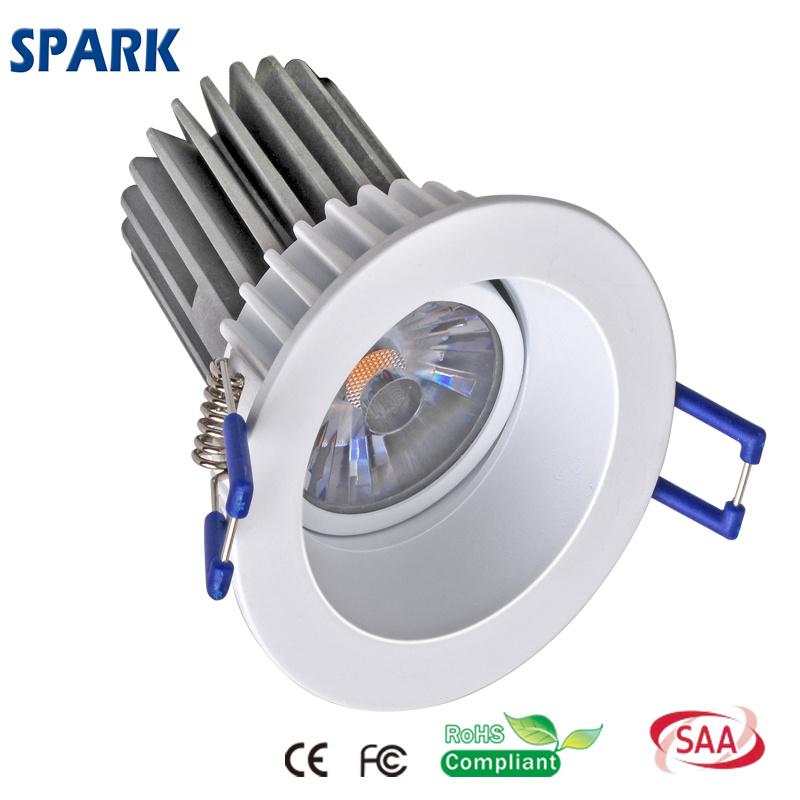

Dimmable directional COB6/8W led spotlight with CE
LED spotlight series including different size as below:
LED downlight features:
Model: SP-DL3820(Square or dimmable is available)
Power: 8W(or 6W)
LED: Bridgelux /Epistar
Working Voltage: 100-240VAC
CCT: 2700k/3000/4000k/5600K
IP: 20/44
Viewing Angle: 25/40/60 deg.
Lifespan: > 50, 000 hrs
CRI: Ra> 80%
Power Factor: > 0.9
Product Dimension: Cut hole: 75mm Dia.: 90mm Height: 79.5mm
(Also Dia.: 60/70/80/110mm for option)
LED down light Material: Aluminum
Our service for led spotlight series:
We can deliver:
1. Led ceiling downlight with significant energy savings, from 50% to over 90% reductions.
2. Long LED product life, from 5 to over 10 years which eliminates lamp replacement or bulb purchases.
3. Fit-and-Forget solutions, reduction in facilities management labor for lamp or bulb maintenance
4. Additional savings can be gained by using our products with lighting controls, all our LED lighting
5. Led downlight are fully dimmable and compatible with control systems including DALI.
We offer:
Lighting design
Installer support or partnering
Retro-fit LED lighting as part of refurbishment projects
Custom LED fittings for new build or refurbishment projects
Questions:
1. How to contact the supplier?
Any requirements, please email by made-in-China or click "contact details"
We promise to reply you in 24 hour.
2. Is it possible to supply customer' original designed LED lights?
Absolutely yes, we accept OEM and ODM.
3. Can I choose the delivery?
We deliver Samples by FedEx, UPS, DHL, TNT act; Order by air or by sea.
Basically, we will arrange delivery after getting customers' confirmation.
4. How to have a face to face talk?
Welcome to visit our factory or lighting fair booth.
Every year, we attend October' Hk lighting fair and June GZ international lighting
Fair.
5. Can I get the lighting solution?
Definitely yes. If you are specialized in lighting, we would like to send you test
Data, such as IES file or do dialux imitation for your reference; If in opposite,
Our engineer will supply u proper lighting solution.
6. Can I get the samples for test?
Samples are available, please contact us to confirm your requirements.
7. How about the warranty for LED downlight?
We usually give our LED lights 3-5 years warranty. For samples, new substitute in
3 months.
LED downlight
LED spotlight
LED down light
|
Model |
SPD-DL3820(other model with similar test data as below) |
|
Input voltage |
AC100-240V |
|
Input current |
100mA Max |
|
Light source |
Bridgelux(COB) |
|
Power |
8W |
|
CCT |
WW/NW/CW |
|
Beam angle |
20° 25° 38° |
|
Size |
Dia 90mm*height 79.5mm;cut hole 75mm |
|
Working environment |
_20 to +50 |
|
Lamp working temperature |
<60 |
|
Lifespan |
50000 hr |
|
CRI |
>80(ww/nw) >70(cw) |
|
Luminous flux |
20° |
2700k |
431lm |
|
3000k |
482lm |
|
4000k |
537lm |
|
5600k |
600lm |
|
25° |
2700k |
436lm |
|
3000k |
487lm |
|
4000k |
541lm |
|
5600k |
602lm |
|
38° |
2700k |
442lm |
|
3000k |
493lm |
|
4000k |
548lm |
|
5600k |
608lm |
|
Package |
1pcs/box(120*120*95mm),36 box/carton(380*380*405mm) |
|
Surface color |
White |
