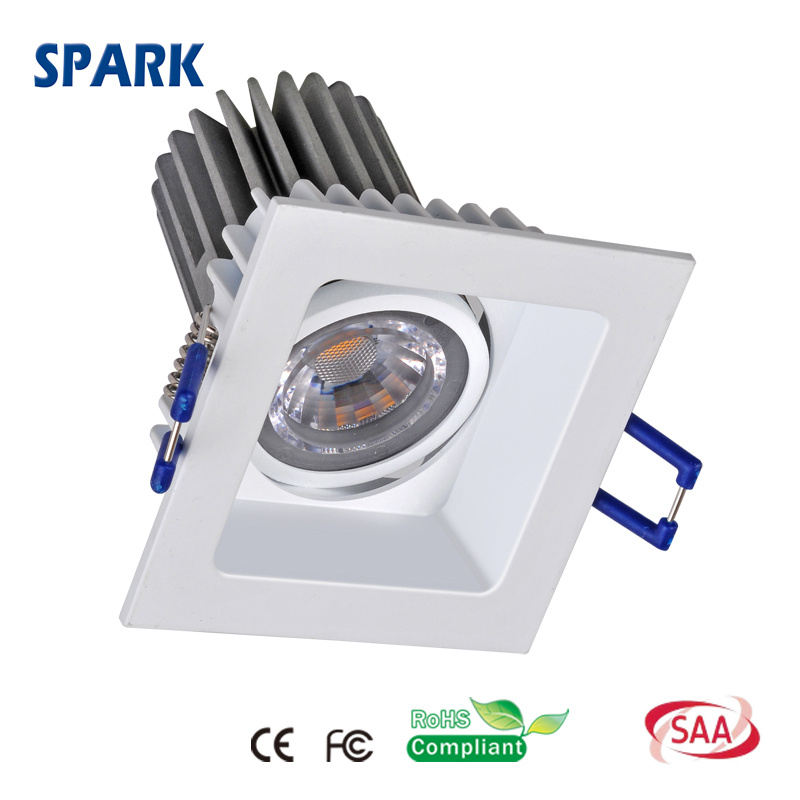

Dimmable 8w adjustable led square down light
Specification:
Model No.: SP-DL3834 (round or dimmable is available)
Current: 100mA MAX
Power Consumption: 8W
Color Temperature: 2700k/3000/4000k/5600K
Luminous Flux: 431-608lm
Materials: Aluminum Body + Glass Lens
Working Humidity: < 95%
Working Temperature; -20 ~ +45
LED Qty.: 1*8W
Light Source: Bridgelux
Life span: ≥ 50, 000Hrs
Installation hole dimension: 95mm
Dimension: φ 110*110*85.5mm
Net weight: 320g
Beam angle: 20/25/38°
LED down light advantage
1. COB LED, high efficiency power supply, high energy saving over traditional lamp
2. Special heat release & lamp body integration design
3. Pollution free, no harmful element such as lead or mercury, no electromagnetic disturbance
4. Wide input voltage range, constant current & voltage
LED down light trade details
Net weight: 320g
Inner package: 120*120*130mm(1PCS/box)
Carton: 505*380*420mm (36PCS)
LED downlight application
1) Home/office lighting, display case lighting down light, LED spotlight
2) Under-soffit lighting, under cabinet lighting
3) Art lighting, Accent, work / task lighting
4) Auto / motor home lighting
5) Boat lighting, accent lighting
6) Shopping center lighting, Entertainment places lighting
NOTE for led downlight/led down light installation:
1, When installing LED ceiling light, try to avoid the minefields, strong magnetic field and high-pressure region.
2, Ensure a solid connection correctly in order to avoid short-circuit damage to components and trigger fires.
3, Installing in a well-ventilated place to ensure appropriate environmental temperature.
4, Before using the LED down light, please check the local voltage compliance product requirements.
5, To prohibit the live wiring, check to confirm wiring is correct, check the no short-circuit, and then power!
6, In case of failures, do not maintenance in private.
|
Model |
SPD-DL3834 |
|
Product size |
Dia.: 110*110*85.5mm;Cut hole:90-100mm(Also Dia:80mm/90mm for option) |
|
Input voltage |
AC100-240V |
|
Input current |
100mA Max |
|
Light source |
Bridgelux(COB) |
|
Power |
8W |
|
CCT |
WW/NW/CW |
|
Beam angle |
20° 25° 38° |
|
Working environment |
_20 to +50 |
|
Lamp working temperature |
<60 |
|
Lifespan |
50000 hr |
|
CRI |
>80(ww/nw) >70(cw) |
|
Luminous flux |
20° |
2700k |
431lm |
|
3000k |
482lm |
|
4000k |
537lm |
|
5600k |
600lm |
|
25° |
2700k |
436lm |
|
3000k |
487lm |
|
4000k |
541lm |
|
5600k |
602lm |
|
38° |
2700k |
442lm |
|
3000k |
493lm |
|
4000k |
548lm |
|
5600k |
608lm |
|
Package |
1pcs/box(120*120*130mm);36box/carton(505*380*420mm) |
|
Weight/carton |
N.W.:11.52KG;G.W.:15.96kg |
|
Dimmable |
For option |
|
Surface color |
White |
LED down light, LED panel, LED tube, LED flood light are our main products, with good sale in domestic and overseas market. Shenzhen Spark Industrial Co., Ltd. is a company who established in year 2006 and specialized in the field of manufacturing LED lighting products. We independently design and manufacture LED products. We are well equipped with excellent equipments, machines and professional staffs.
To achieve customers requirement is the goal of our company, and to keep pace with the daily changing LED lighting market, we always to be innovate, persistant, and delicate to the new products research and development. Try our best to offer the customer with the most updated product and to lead the trend of the market.
The factory is located in shenzhen, guangdong, China with the production line of: LED downlight, LED ceiling light, LED panel lights, LED spotlight, LED tracklight, LED floodlight, LED emergency light, rechargeable portable LED floodlight, LED tubes, LED highbay etc.
With these kind of products application and decoration in the places of house, hotel, shoping mall etc, we believe that we can help to build a greener and brighter world. Our aim is to light up your world with LEDs and gain a better future.
Our markets are major in Europe, South and north America and inside China. And we are expanding our market share to a larger extent. We look forward to your cooperation. Contact us now, we won't let you down!
