Product Description

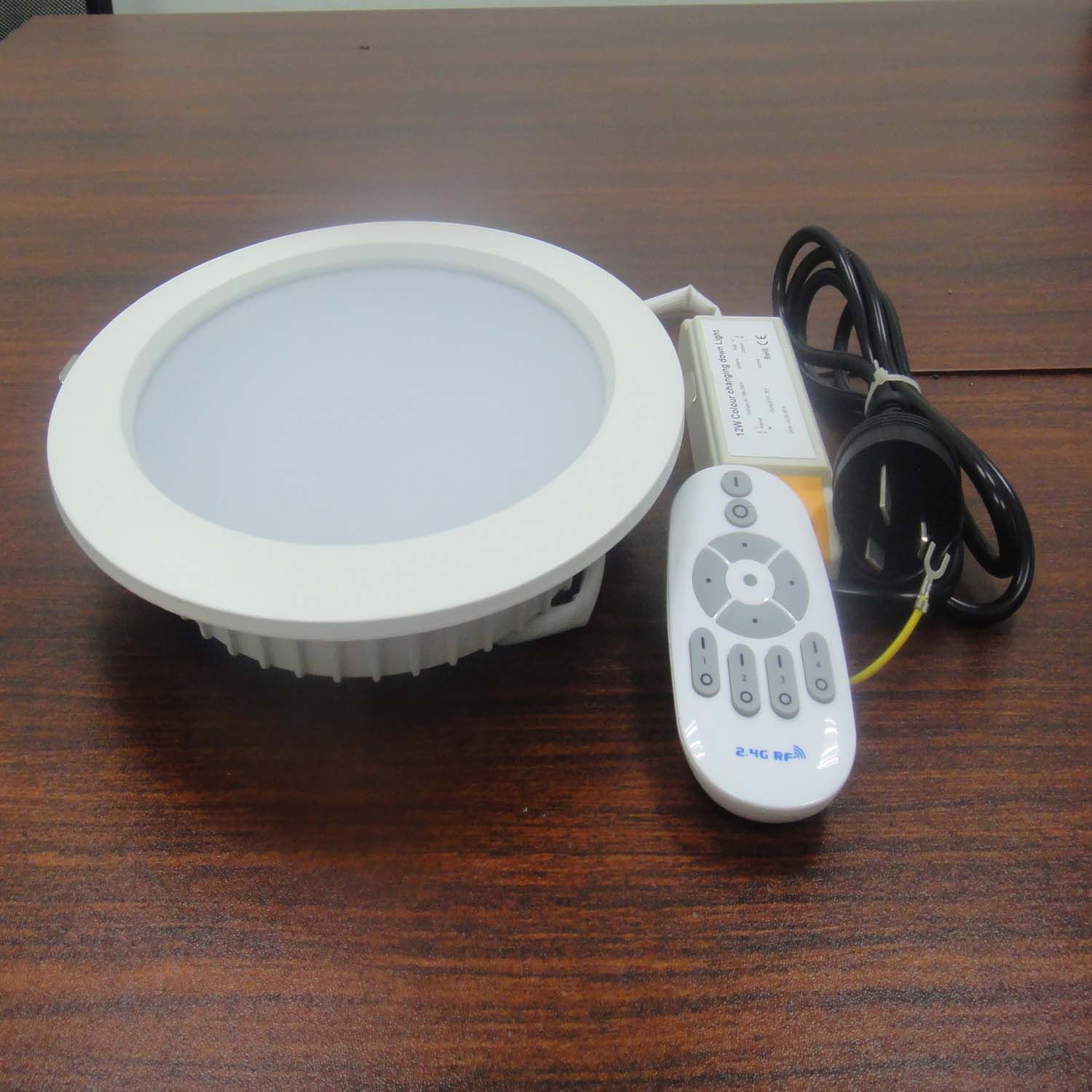

Dimmable 20W LED down light with SAA
it can work with our remote controller, truly smart lighting!!
Specification:
Model No.: TTC-D230020-BA
Input Voltage: AC90~240V
Rated Power: 20W
LED Brand: Sumsung/Epistar/Bridgelux/Sanan
LED Type: SMD2835
Color Temprature: 2700~6500K
Luminous Flux: 1800Lm
Ra: >70
Beam Angel: 120 Degree
Power Factor: >0.9
Dimension: Φ 230*H58mm
Cutting Hole Size: 200mm
Material: Die-casted Aluminium shell, frosted/clear PC cover
Package: Caron Box or according to customer's request
Competitive Features:
1. CE, TUV&SAA approved, RoHS compliant
2. Shock and vibration resistant, more durable
3. No noise, no flicker and no UV radiation, eco-friendly and health harmless
4. Instant light up without delay
5. Constant current circuit, be much safer
6. SMD lamp bead makes this product is of high lights performance, without any shadow stack or any dark circle
7. High Luminous efficiency
8. Dimmable and non-dimmable both available
9.80% energy saving
8. Low heat generation
9.3 years warranty
10. Visual attractive
11.Die-casted Aluminum casing, has good energy performance
12. First-class quality electronic parts and components
13. Advanced energy technology, heat dissipation, low lighting dissipation, long lifespan
Cautions on Use:
1. Indoor use only
2. Do not handle with wet hands
3. Use only under the rated voltage
4. Do not use near fire or inflammables
5. Do not disassemble or renovate at one's option
Customized Service:
All LED lights can be customized according to your drawings or requests.
ITEM | TTC-D140008-BA | TTC-D160012-BA | TTC-D230020-BA | TTC-D230028-BA |
| Rated Power(W) | 8W | 12W | 20W | 28W |
| Input Voltage(V) | 90~240V | 90~240V | 90~240V | 90~240V |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 |
| LED Type | SMD2835 | SMD2835 | SMD2835 | SMD2835 |
| LED Quantity(PCS) | 50PCS | 70PCS | 120PCS | 65PCS |
| Luminous Flux(LM) | 650Lm | 1,050Lm | 1,800Lm | 2,500Lm |
| Lumious Efficiency(Lm/w) | >80Lm/w | >90Lm/w | >90Lm/w | >90Lm/w |
| Color Temperature | 2700K~6500K | 2700K~6500K | 2700K~6500K | 2700K~6500K |
| Beam Angle | 120° | 120° | 120° | 120° |
| Ra(CRI) | >70 | >70 | >80 | >80 |
| IP Rating | IP40 | IP40 | IP40 | IP40 |
| Dimmable(Y/N) | Y | Y | Y | Y |
| Dimension(MM) | Φ140*48 mm | Φ160*48 mm | Φ230*58 mm | Φ230*58 mm |
| Cutting Hole Size (mm) | Φ120 mm | Φ145 mm | Φ200 mm | Φ200 mm |
| Materials | aluminium | aluminium | aluminium | aluminium |
| Lifespan | 35,000 Hours | 35,000 Hours | 35,000 Hours | 35,000 Hours |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years |
| Instllation | embedded | embedded | embedded | embedded |
| Finished color | white | white | white | white |
| Certificates | CE RoHS SAA TUV ERP | CE RoHS SAA TUV ERP | CE RoHS SAA TUV ERP | CE RoHS SAA TUV ERP |
| OperatingTemperature | -10ºC~40ºC | -10ºC~40ºC | -10ºC~40ºC | -10ºC~40ºC |
| Storage Temperature | -20ºC~50ºC | -20ºC~50ºC | -20ºC~50ºC | -20ºC~50ºC
|
