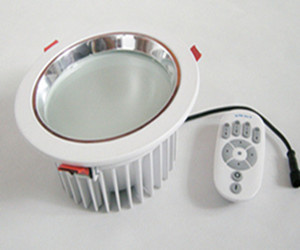

Dimmable 20W (cut out: 118mm) LED Down light (JJ-DL20W-L50-DC)
JJ-DL20W-L50-DC-WW Warm white 3000-3500k
JJ-DL20W-L50-DC-PW Pure white 4000-4500k
JJ-DL20W-L50-DC-CW Cool white 6000-6500k
LED Downlight Light
1. Super bright 5630 LED as lighting sources, aluminium frame with good heat conduction.
2. Instant start, no flickering, no humming. No electric wave, Imported light diffusion material, mercury and lead free.
3. High lumen output, high efficiency, energy saving up to 70%, Eco-friendly, energy-saving and high luminous efficacy. Excellent heat dissipation structure, long lifespan, normal use can reach over 35, 000hours.
4. CE, SAA certificated, lead free, eco-friendly, conform to the requirements of RoHS.
APPLICATION FOR LED DOWN LIGHT
1. Commercial lighting, environmentally friendly lighting, warehouse, supermarket and home illumination.
2. IT, call centers, shopping malls and Exhibition Hall, art gallery, the hospital hoteland other public places.
3. Exhibition Hall, art galleries, museums, offices, readingroom, corridor, staircase lighting, such as contour range
|
Model Number |
Color Temperature |
Power Consumption |
Input Voltage |
Dimension mm |
LED source |
Lumen Output |
Cover |
PF |
|
External Diameter |
|
DC Series LED Downlight (Dimmable) |
|
JJ-DL10W-L24-DC-WW |
3000-3500K |
10W |
AC 110/220V 50/60Hz |
91mm |
24Pcs Samsung SMD 5630 |
85lm/W |
Frosted |
>0.90 |
|
JJ-DL10W-L24-DC-PW |
4000-4500K |
|
JJ-DL10W-L24-DC-CW |
6000-6500K |
|
JJ-DL20W-L50-DC-WW |
3000-3500K |
20W |
AC 110/220V 50/60Hz |
130mm |
50Pcs Samsung SMD 5630 |
85lm/W |
Frosted |
>0.90 |
|
JJ-DL20W-L50-DC-PW |
4000-4500K |
|
JJ-DL20W-L50-DC-CW |
6000-6500K |
|
JJ-DL30W-L72-DC-WW |
3000-3500K |
30W |
AC 110/220V 50/60Hz |
162 mm |
72Pcs Samsung SMD 5630 |
85lm/W |
Frosted |
>0.90 |
|
JJ-DL30W-L72-DC-PW |
4000-4500K |
|
JJ-DL30W-L72-DC-CW |
6000-6500K |
|
JJ-DL40W-L100-DC-WW |
3000-3500K |
40W |
AC 110/220V 50/60Hz |
190 mm |
100Pcs Samsung SMD 5630 |
85lm/W |
Frosted |
>0.90 |
|
JJ-DL40W-L100-DC-PW |
4000-4500K |
|
JJ-DL40W-L100-DC-CW |
6000-6500K |
|
JJ-DL50W-L120-DC-WW |
3000-3500K |
50W |
AC 110/220V 50/60Hz |
230 mm |
120Pcs Samsung SMD 5630 |
85lm/W |
Frosted |
>0.90 |
|
JJ-DL50W-L120-DC-PW |
4000-4500K |
|
JJ-DL50W-L120-DC-CW |
6000-6500K |
Shenzhen Jiangjing Lighting Co., Ltd is a manufacturing enterprise with national high technology, we devotes to researching and developing new products with advanced technology, and has rich experience in the field of commercial lighting and special biological application lighting. "Being strict with quality, producing top-quality products", adhering to this faith, all designs of our productsabide by Electric Security Standard of Europe and America. Through scientific matching and design for lamp, light source and electrical equipment, Jiangjing Lighting do the best to improve the lighting effect, reduce energy intensity and increase product's service life, to providing customers with the best lighting solutions, as well as supporting environmental protection and comprehensive energy saving.
Jiangjing Lighting own full sets of advanced professional manufacturing equipments and inspection equipment, together with high level of technology talented person, a variety of LED lamps produced here pass the international CE, RoHS, FCC certifications. With good reputation, we establish friendly relationship of cooperation with many different companies from North America, Europe, Southeast Asia and other countries, and become their long-term trusted partner step by step.
In the future, Jiangjing Lighting will promote the development and application of advanced lighting technology, carry out our faith and promise with expert spirit! Jiangjing is always ready to provice customers with the best service! !
