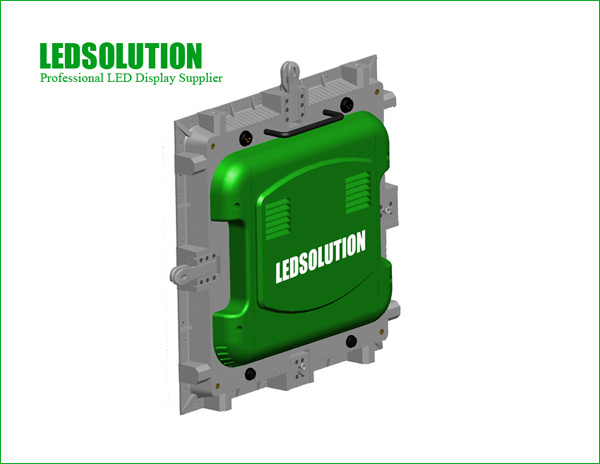

Die-Cast LED Display P5 (LS-DI-P5)
| Price: |
Negotiable/Square Meter |
| Trade Terms: |
FOB |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T |
Die-cast LED display, Die-cast Aluminum LED display, Indoor LED display, LED display, LED Screen, LED Sign:
Features:
Different pitch, same size: 480x480mm
Light Weight: 9kg/panel
Easy assembly & disassembly by hands, without tools
Super smart flatness
Sharp Brightness for outdoor use
Seamless tiled display Up to 1, 073.7 million colors
Long Durability and High Reliability
Low Maintenance Cost
Energy Efficient
Superb Picture Quality
Parameter | LS-DI-P4 | LS-DI-P5 | LS-DI-P6 | LS-DO-P10 | LS-DO-P16 |
Application | Indoor | Indoor | Indoor | Outdoor | Outdoor |
Pitch | 4mm | 5mm | 6mm | 10mm | 16mm |
Brightness | 1, 600 | 1, 600 | 1, 600 | 5, 500 | 6, 000 |
Color temperature | 6500K |
Viewing angle | 140/140 | 130/60 |
Panel weight | 9kg |
Panel Size | 480x480mm |
Panel material | Die-cast Aluminum |
Operating temperature | -30 to +60 |
Humidity operating | 10% ~ 90% |
Pixel configuration | 3in1 SMD | 1R1G1B |
Resolution per panel | 120x120 | 96x96 | 80x80 | 48x48 | 30x30 |
Min viewing distance | 3m | 3.8m | 4.6m | 7.6m | 12m |
Best viewing distance | 4~12m | 5~15m | 6~18m | 10~30m | 16~48m |
Colors | 1, 073.7 million |
Grey scale | 1, 024 levels per color |
Brightness control | 100 levels |
Contrast ratio | 1, 000: 1 |
Processing depth | 16bit |
Video frame rate | 60HZ |
Display refresh rate | 180~3, 000HZ |
Input voltage | 110 to 240V |
Input power frequency | 50 to 60HZ |
Input power (max) | 300W |
Input power (typical) | 120W |
Lifetime | ≥ 100, 000 |
Red wavelength | 620~625 |
Green wavelength | 520~525 |
Blue wavelength | 470~475 |
Multimedia data format | DVI, MPG, AVI, WMV, RM etc. |
Data interconnection | UTP Cat 5/Optical Fiber |
Mounting system | Hanging |
| Prod Model: |
LS-DI-P5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
1,600nits |
| Color Temperature: |
6500k |
| Viewing Angle: |
140/140 |
| Panel Weight: |
9kg |
| Panel Size: |
480X480mm |
| Panel Material: |
Die-Cast Aluminum |
| Mounting System: |
Hanging |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
5mm |
| Pixel Density: |
40,000 dots / m² |
| Application: |
Stage Performance |
| IP Rating: |
IP40 |
| Certification: |
CE |
| Pixel Configuration: |
3in1 SMD |
| System Operating Platform: |
Windows7, Vista, XP, 2000, 98 |
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.
With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.
For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality
And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
