DC5V Waterproof Ws2812b RGB Flexible LED Strip Light

Name: DC5V Waterproof Ws2812b RGB Flexible LED Strip Light
Brand: yourledlight.com
SKU: 703769332
Availability: InStock
Rating: 4.5 (113 reviews)

Price:	US $ 2-8/Meter
Trade Terms:	FOB,CIF,DAP
Min Order:	2/Roll
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Monssen Technology Co., Limited

Showroom Product Company Profile

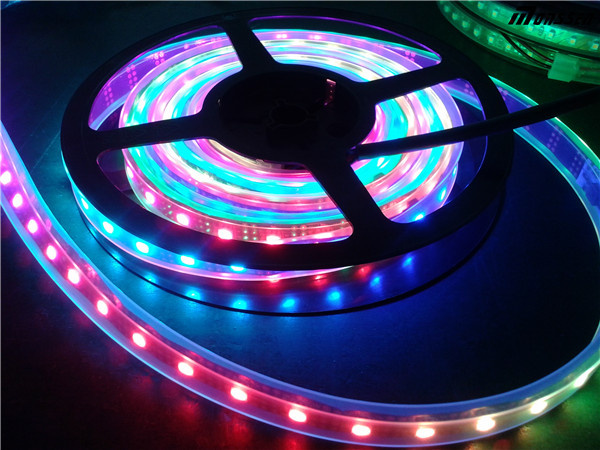

DC5V waterproof ws2812b RGB flexible led strip light

Specification:
CE/RoHS certificates.
12V/24V DC.

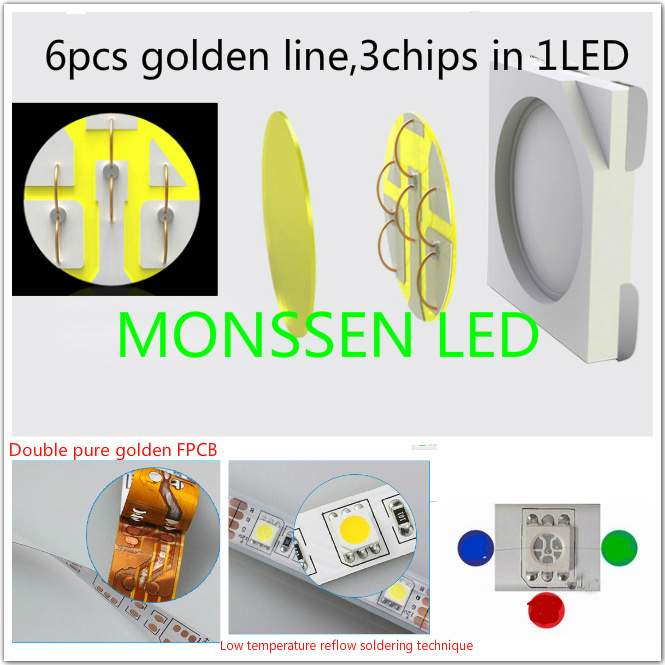

3528 or 5050 led components.
Waterproof or non-waterproof are both availble.

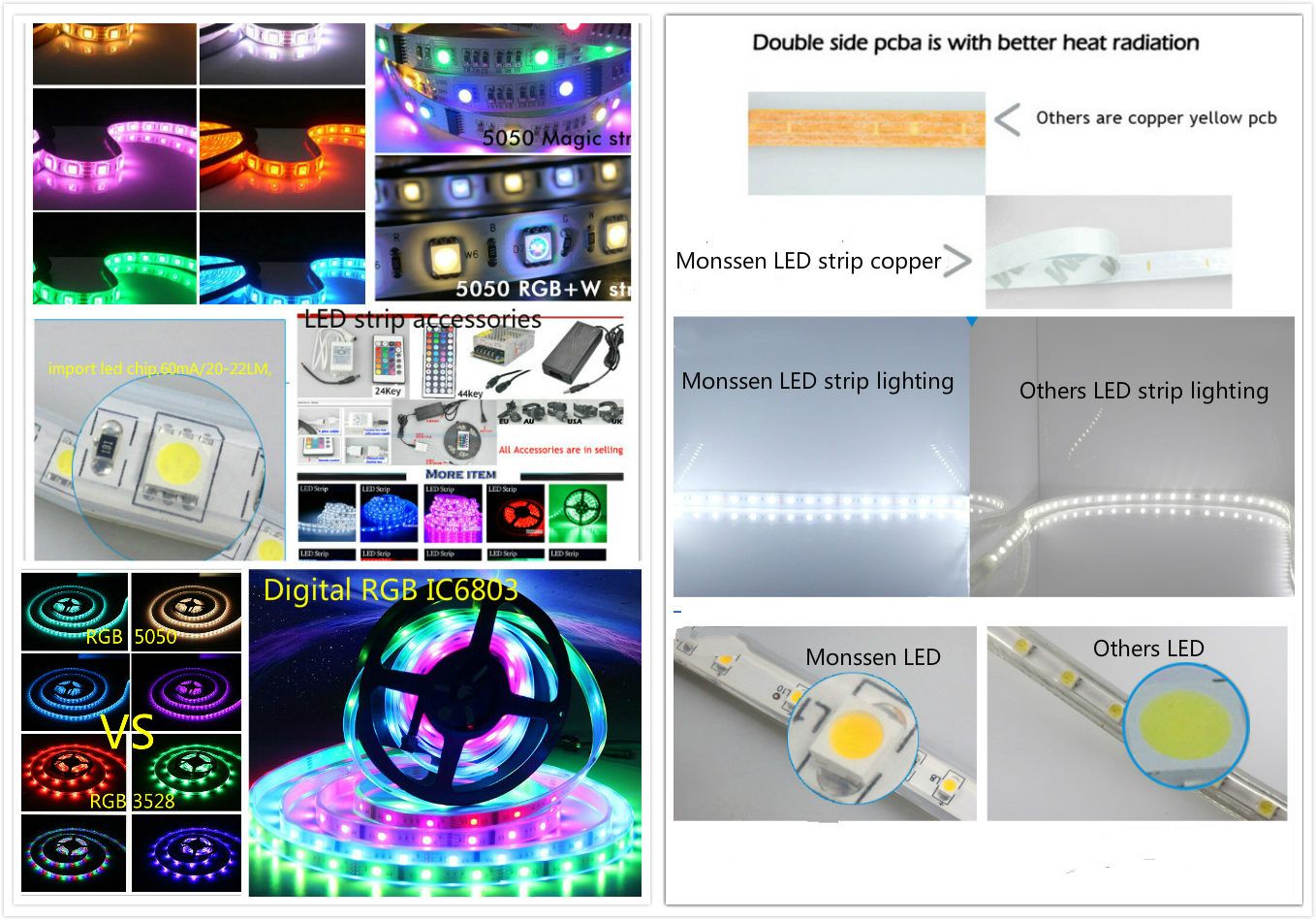

LED Strip List:

Part Numbe	Color	LED Parameter	Wattage	Size	Power	OEM/Customize?
3528-30LED	R/G/B/Y/W/WW	SMD3528/30LED	2.4W/M	8*1000MM	DC12V/DC24V	YES
3528-60LED	R/G/B/Y/W/WW	SMD3528/60LED	4.8W/M	8*1000MM	DC12V/DC24V	YES
3528-120LED	R/G/B/Y/W/WW	SMD3528/120LED	9.6W/M	8*1000MM	DC12V/DC24V	YES
5050-30LED	R/G/B/Y/W/WW/RGB	SMD5050/30LED	7.2W/M	10*1000MM	DC12V/DC24V	YES
5050-60LED	R/G/B/Y/W/WW/RGB	SMD5050/60LED	14.4W/M	10*1000MM	DC12V/DC24V	YES

5630-60 LED	white	SMD5630/60LED	18W/M	8*1000MM	DC12V/DC24V	YES
2835-60 LED	R/G/B/Y/W/WW	SMD2835/60LED	12W/M	8*1000MM	DC12V/DC24V	YES
2835-120 LED	R/G/B/Y/W/WW	SMD2835/120LED	24W/M	8*1000MM	DC12V/DC24V	YES
2835-240 LED	R/G/B/Y/W/WW	SMD2835/240LED	36W/M	12*1000MM	DC12V/DC24V	YES
3014-60 LED	R/G/B/Y/W/WW	SMD3014/60LED	12W/M	10*1000MM	DC12V/DC24V	YES
3014-120 LED	R/G/B/Y/W/WW	SMD3014/120LED	24W/M	10*1000MM	DC12V/DC24V	YES

Digital RGB led strip (WS2011/WS2812B) Specification/Items:

Business model	Manufacture
Item Model	MS-WS2812B-60
LED Quantity	60PCS/M,300PCS/Reel
IC Type	WS2812B (IC Built in LED)
Wattage	18W/M
Pixel/m	60pixel/m,300pixel/reel
PCB Width	10mm
Length/Reel	5M
Working Voltage	DC5V
Package	Anti-Static Bag
Light Color	Multi-Color, digital RGB,Every LED individual Control
IP Grade	IP20:Non waterproof IP65:Soft glue waterproof IP67:Soft tube waterproof IP68:Soft tube+glue waterproof
Glue Type	Expoy:Non-anti-UV,Stay clean for short time,smell Silicone:Anti-UV,Stay clean,soft,smell-less PU: Anti-UV,Stay clean,soft,smell-less
PCB Color	White ,Black
Certification	CE RoHS
Cut size	DC5V (every LED per cut), DC12V (every 3LED per cut)
Installation	IP20 with 3M Adhesive tape on the back of PCB IP65 with 3M Adhesive tape on the back of PCB IP67 with plastic clip and screw IP68 with plastic clip and screw
	Many other types IC for choose

Addressable LED Strip with ,IC WS2811 WS2812,Individual Pixel Control
A	MS-WS2812B-30	30pcs SMD5050/M	9W/M	DC5V	30 Pixel/M	WS2812B	Dream Color RGB	IP20 IP65 IP67 IP68
B	MS -WS2811-30	30pcs SMD5050/M	7.2W/M	DC12V	10 Pixel/M	WS2811	Dream Color RGB	IP20 IP65 IP67
C	MS-WS2811-48	48pcs SMD5050/M	11.5W/M	DC12V	16 Pixel/M	WS2811	Dream Color RGB	IP20 IP65 IP67
D	MS-WS2811-60	60pcs SMD5050/M	14.4W/M	DC12V	20 Pixel/M	WS2811	Dream Color RGB	IP20 IP65 IP67
E	MS-WS2812B-60	60pcs SMD5050/M	18W/M	DC5V	60 Pixel/M	WS2812B	Dream Color RGB	IP20 IP65 IP67
F	MS-WS2812B-144	144pcs SMD5050/M	43.2W/M	DC5V	144 Pixel/M	WS2812B	Dream Color RGB

Low voltage DC input
Do not hot-line work
expansion screws should be used outdoor installation,so as not to fall off
Keep away from heat
The series less than 4m between lamps
Recommended power supply is more reasonable, which is generally 70-80% of rated power load, in order to avoid long-term high load power supply to damange the power supply and power

Why choose us?

1. We are Professional Led Lighting manufacturer in Shenzhen, China
2. Capacity: 2.5million pcs of storage items produced and exported annually
3. New items every quarter and quick response
4. Delivery: Punctual delivery for more than 95% orders
5. Approved by CE & RoHS.

Our Services:
1. Inquiry response: Your enquiries will be replied in 24 hours.
2. Delivery time: Your shipment will be loaded in 3~15 days, depends on quantity.
3. Payment term: T/T,L/C,D/P,D/A,Western union, Paypal.
4. ODM order: Customized design is available.

Prod Model:	ws2812b
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IP Rate:	IP66, IP67, IP44, IP20, IP68
Warranty:	3 Years
Board Color:	Black Board, White Board
Size:	10mm
Length:	5meter
Lifespan:	50000h
Voltage:	DC5V

Monssen Technology Co., Limited focus on LED strip, LED Tube, LED Panel light&LED Flood light, which located in Shenzhen, China, it was established in 2011, with hard work of everybody and guided by many excellent leaders, it develped fastly and win much fame and reward from regular customers in such short time.

Now Monssen has got "LED energy saving expert" fame, and its products are popular in China, North America, Europe, and Asia and so on. We are trying our best to appeal everyone to take action right now and saving energy. We are aiming to sale our energy saving products to every corner of the world.

At present, with our products exported and gained very good feedback from clients.

Northern Europe 30%, Southern Europe 30%, North America 30%, 10% others.

Our company got total Annual Sales Volume: US$1 Million - US$2.5 Million with Export Percentage 85%.

We get all Test Equipment and Facilities in our own workshop, OEM, ODM order also welcome.

Since now, we have extended our products to LED mining lamp and LED panel, just contact us right now, expecting win-win cooperation.
