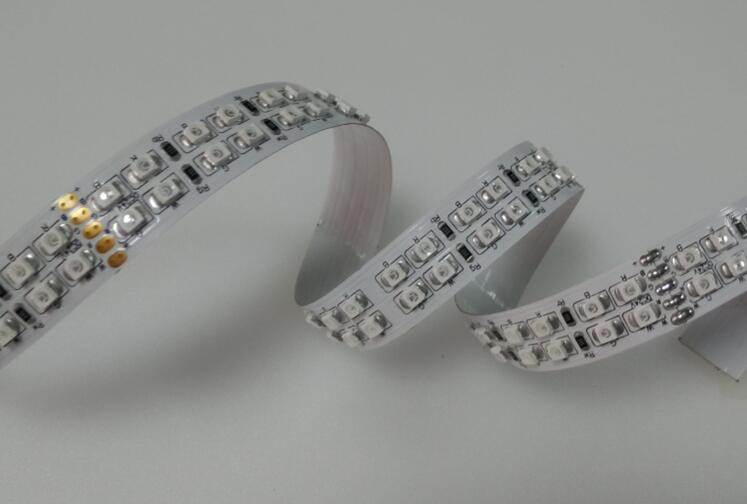

DC24V smd3528 RGBW LED Strip Double Row
RGBW LED strip features:
-4 channel flexible LED strip with RGBW/WW color four colors in one SMD chip
-Ideal for fast installation into many applications like signs, displays and pelmets
-240 SMD5050 leds per meter
-5 meters per roll
-IP20, IP67 available
-White PCB board
-With 3M Tape on the backside
-CE & RoHS compliant
-3-year warranty
RGBW In one led strip Specification:
Model No.: MB-FS3-RGBW-240/20
Dimension: 5000mm*15mm*2.2mm
PCB width: 15mm
PCB color: White
Voltage: DC 24V
Max.Current: 60mA/LED
Wattage: Max.19.2W/M / Max. 96W/roll
LEDs:600pcs SMD3528 white LED + 600pcs smd3528 rgb LED
Waterproof grade: IP20
Beam Angle: 120degree
Color: RGB warm white/cool white (white: 3000K, 4000K, 6000K /CRI>80Ra)
Working temperature: -20~+60 celsius degree
| Name | DC24V smd3528 RGBW LED Strip |
| Part No. | MB-FS3-RGBW-240/20 |
| Related wattage: | Max.19.2W/M / Max. 96W/roll |
| Input voltage: | DC24v |
| Power factor | 1 |
| LED brand & Qty | Epistar, 240eds/m smd3528 rgbw |
| lumen | 6 - 8lm/leds |
| Color temperature - White part | 2700K/ 3000K/ 4000K/ 5000K |
| Color rendering index | 80Ra+ (white part) |
| Light color | rgb warm white/ rgb nature white/ rgb cool white |
| Height | 0.22 mm |
| Width | 15 mm |
| Length | 5000 mm |
RGBW led strip set (controller+connecting cable+power supply)
Flexible led Strip range:
--3528 smd led: 60leds/m, 120leds/m, 240leds/m(single row and double row);
--5050 smd led: 60leds/m, 72leds/m, 120leds/m(double row)
--2835 smd led: 60leds/m, 120leds/m (single row)
--5630 smd led: 60leds/m, 120leds/m (double row), Samsung 5630 is available
--RGBW led strip: 4 in one(60/72/84/96leds/m)
RGB+W/WW(60/72/96/120/144leds/m)
--CCT adjustable led strip: 3528 120/240 leds/m, 5050 60leds/m, 2835 112leds/m; 3014 224leds/m; 5630 112leds/m.
--Digital strips
--110V/220V High Voltage led strips
different length, different voltage, different led quantity can be customized/tailored.
