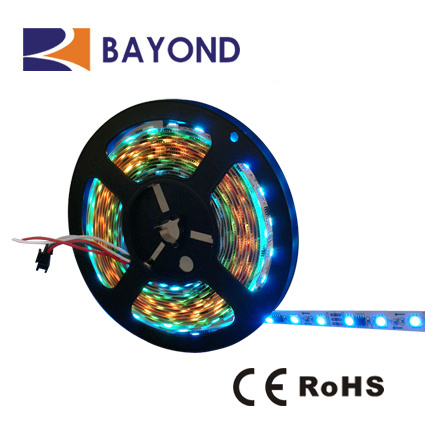

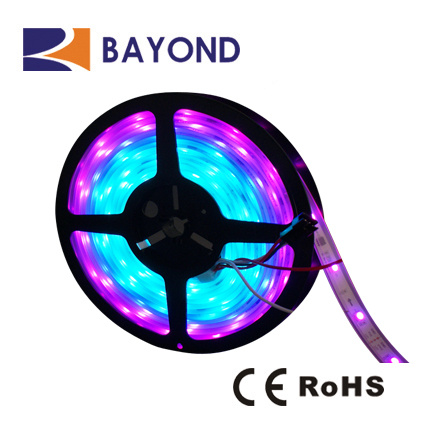

DC12V Waterproof Magic Color LED Strip Light
Specification: |
Item Name | Led strip |
Light source | SMD5050 |
LED Qty | 60 LEDs/M |
Working voltage | DC12V |
Output power | 14.4W/M |
PCB Width | 10MM |
PCB Color | White, brown and black are available |
Waterproof Rate | IP65/67/68 |
Color Temperature | 3000k-12000k |
Cut table | Each unit of 3 LEDs |
Long Life span | 50,000Hs |
Viewing angle | 120° |
Certificate | CE/ROHS/EMC/LVD |
Related LED strip:
Single color LED strip:
Number | Model | LEDs | Voltage | color | Feature |
BY-ST5630CW30 | SMD5630 LED strip | 30LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST5630CW60 | SMD5630 LED strip | 60LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST5050CW30 | SMD5050 LED strip | 30LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST5050CW60 | SMD5050 LED strip | 60LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST3528CW30 | SMD3528 LED strip | 30LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST3528CW60 | SMD3528 LED strip | 60LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST3528CW120 | SMD3528 LED strip | 120LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST3528CW240 | SMD3528 LED strip | 240LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST3014CW60 | SMD3014 LED strip | 60LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST3020CW60 | SMD 3020 LED strip | 60LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST2835CW60 | SMD2835 LED strip | 60LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST335CW60 | SMD335 LED strip | 60LED/m | DC12V | R,Y,B,G,W | 5m per roll |
RGB LED strip:
BY-ST5050RGB30 | SMD5050 LED strip | 30LED/m | DC12V | RGB | 5m per roll |
BY-ST5050RGB60 | SMD5050 LED strip | 60LED/m | DC12V | RGB | 5m per roll |
Full color addressable LED strip:
Number | Model | LEDs | Voltage | IC | IC quantity | PCB Width |
ST-6803-30D | SMD5050 LED strip | 30LED/M | DC12V | LPD6803 | 10PCS/m | 12mm |
ST-2811-30D | SMD5050 LED strip | 30LED/M | DC12V | WS2811 | 10PCS/m | 10mm |
ST-2811-48D | SMD5050 LED strip | 48LED/M | DC12V | WS2811 | 16PCS/m | 10mm |
ST-2811-60D | SMD5050 LED strip | 60LED/M | DC12V | WS2811 | 20PCS/m | 10mm |
ST-1903-30D | SMD5050 LED strip | 30LED/M | DC12V | UCS1903 | 10PCS/m | 10mm |
ST-1903-48D | SMD5050 LED strip | 48LED/M | DC12V | UCS1903 | 16PCS/m | 10mm |
ST-1903-60D | SMD5050 LED strip | 60LED/M | DC12V | UCS1903 | 20PCS/m | 10mm |
ST-1812-32D | SMD5050 LED strip | 32LED/M | DC12V | TM1812 | 8PCS/m | 12mm |
ST-1812-60D | SMD5050 LED strip | 60LED/M | DC12V | TM1812 | 5PCS/m | 12mm |
ST-1812-120D | SMD5050 LED strip | 120LED/M | DC12V | TM1812 | 10PCS/m | 20mm |
ST-1812-144D | SMD5050 LED strip | 144LED/M | DC12V | TM1812 | 12PCS/m | 20mm |
ST-1003-30D-A | SMD5050 LED strip | 30LED/M | DC5V | INK1003 | 30PCS/m | 10mm |
ST-1003-60D-A | SMD5050 LED strip | 60LED/M | DC5V | INK1003 | 60PCS/m | 10mm |
ST-1003-30D-B | SMD5050 LED strip | 30LED/M | DC5V | INK1003 | 30PCS/m | 12mm |
ST-1003-60D-B | SMD5050 LED strip | 60LED/M | DC5V | INK1003 | 60PCS/m | 12mm |
ST-1003-30D | SMD5050 LED strip | 30LED/M | DC12V | INK1003 | 10PCS/m | 10mm |
ST-1003-48D | SMD5050 LED strip | 48LED/M | DC12V | INK1003 | 16PCS/m | 10mm |
ST-1003-60D | SMD5050 LED strip | 60LED/M | DC12V | INK1003 | 20PCS/m | 10mm |
ST-2812-30D | SMD5050 LED strip | 30LED/M | DC5V | WS2812B | 30PCS/m | 10mm |
ST-2812-60D | SMD5050 LED strip | 60LED/M | DC5V | WS2812B | 60PCS/m | 10mm |
ST-2812-144D | SMD5050 LED strip | 144LED/M | DC5V | WS2812B | 144PCS/m | 12mm |
ST-2801-32D | SMD5050 LED strip | 32LED/M | DC5V | 2801 | 32PCS/m | 12mm |
ST-1809-30D | SMD5050 LED strip | 30LED/M | DC5V | 1809 | 30PCS/m | 12mm |
ST-2821-36D | SMD5050 LED strip | 36LED/M | DC5V | 2821 | 6PCS/m | 12mm |
Hight voltage LED strip:
Number | Model | LEDs | Voltage | Color | Feature | Size |
BY-HV3528-220V | SMD3528 | 60LED/m | AC220V | R,G,B,W | 100m/roll | 10.5*7.5mm |
BY-HV3528-110V | SMD3528 | 60LED/m | AC110V | R,G,B,W | 100m/roll | 10.5*7.5mm |
BY-HV5050-110V | SMD5050 | 60LED/m | AC110V | R,G,B,W | 50m/roll | 10.5*7.5mm |
BY-HV5050RGB-110V | SMD5050 | 60LED/m | AC110V | RGB | 50m/roll | 10.5*7.5mm |
BY-HV5050Y60-110V | SMD5050 | 60LED/m | AC110V | 1800K | 50m/roll | 12.5*7.5mm |
BY-HV5050Y60-220V | SMD5050 | 60LED/m | AC220V | 1800K | 50m/roll | 12.5*7.5mm |
BY-HV5730-220V | SMD5730 | 60LED/m | AC220V | WW,PW,CW | 50m/roll | 12.5*7.5mm |
BY-HV3014-220V | SMD3014 | 120/m | AC220V | PW,WW | 100m/roll | 11.5*7.5mm |
Features:
1. All the light spread and completely smooth,luminous very even
2. Each unit of 3 LEDs can be cut at regular segments without damaging the rest
3. Self-adhesive back with 3M tape for secure and easy application
4. LED Type:High quality 5050 SMD LED,high intensity and reliability,long Lifespan>50,000 hours.
Applications:
1. Concealed accent lighting;
2. Edge lighting;
3. Path and contour marking;
4. under counter.
Packaging details:
1. 5 meters/reel as an unit wrapped around a disk, specifications of the disks are 8, (40g), 10mm (75g) and 12mm (100g) respectively and each disk is packaged by antistatic bag
2. We have two regular sizes of the cartons:One is 28 x 28 x 28cm, in which 30 reels non-waterproof LED strips are packed and the weight of the carton is 0.5kg, the other is medium carton, weighing 0.85kg, 80 reels non-waterproof or 60 reels waterproof strips can be packaged
3. Packaging can also be according to customer's requirement
