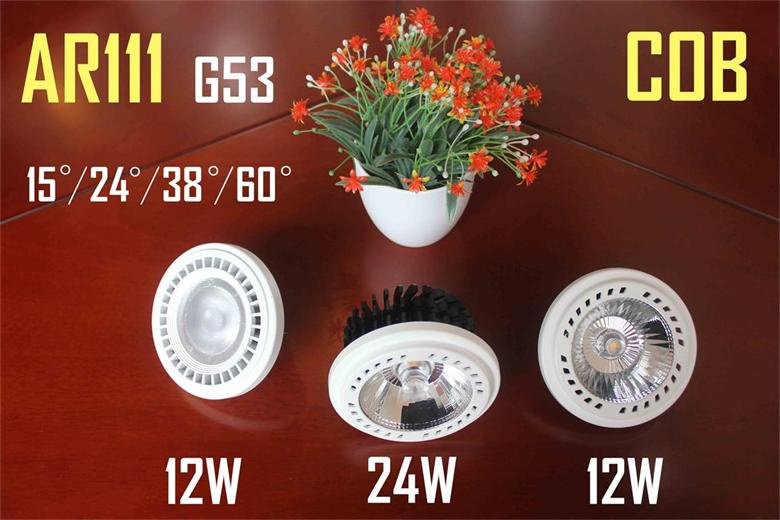

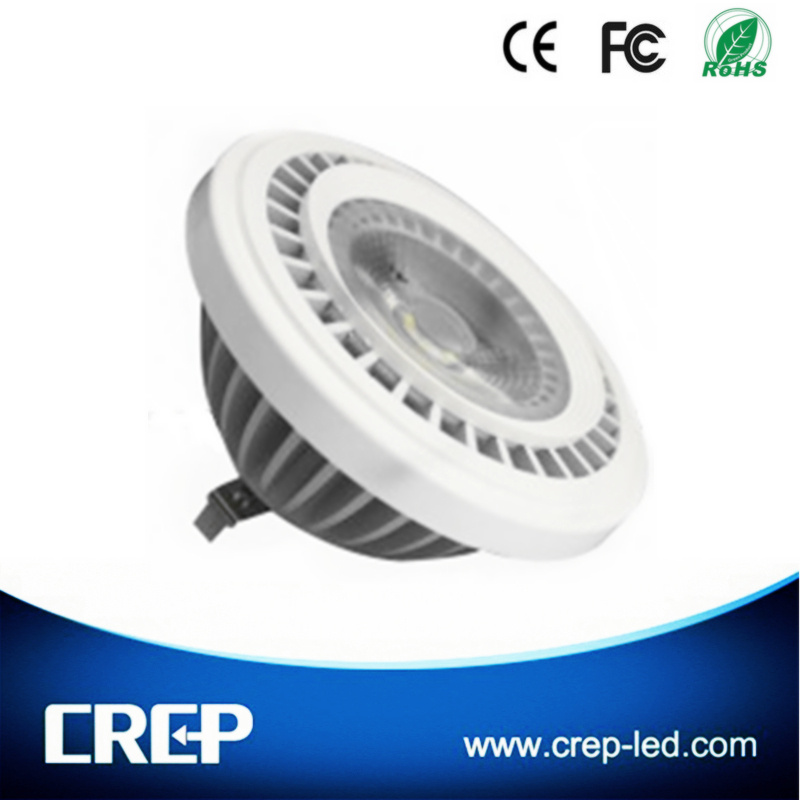

DC12V 12W 1000lm AR111 LED Spotlights
Crep Opto Co.,Ltd is specialized in R&D,production and marketing AR111 led spotlight . Our company passed and strictly enforces the requirements of ISO9001quality management system to promote all our product through CE,ROHS SAA and FCC and other international safety certification.we can supply
9x1w high power ar111 led spotlight
12x1w high power ar111 led spotlight
12w COB ar111 led spotlight
DC12V G53 AR111 led spotlight
AC100~240V GU10 AR111 led spotlight
Led spot light of cob DATA: Model:CPS-DP-AR111-03
Voltage(V): AC/DC12VTotal Power: 12W LED Power: 10W bridgelux COB chipLuminous Flux: 1000Lm± 8% Size: 110mm x55mm(H)
Power: 12W
Luminous Flux: 1000lm
Input voltage: AC/DC12V
Lens beam angle: 15°/24°/38°/40°
Material: aluminum alloy
Design highlights
Up to 80% energy saving compared to standard halogen spots
Operates at 12V DC/AC and its form-factor is designed as a direct retrofit into all G53 holders
its more safety input voltage to avoid any electric shock accident.

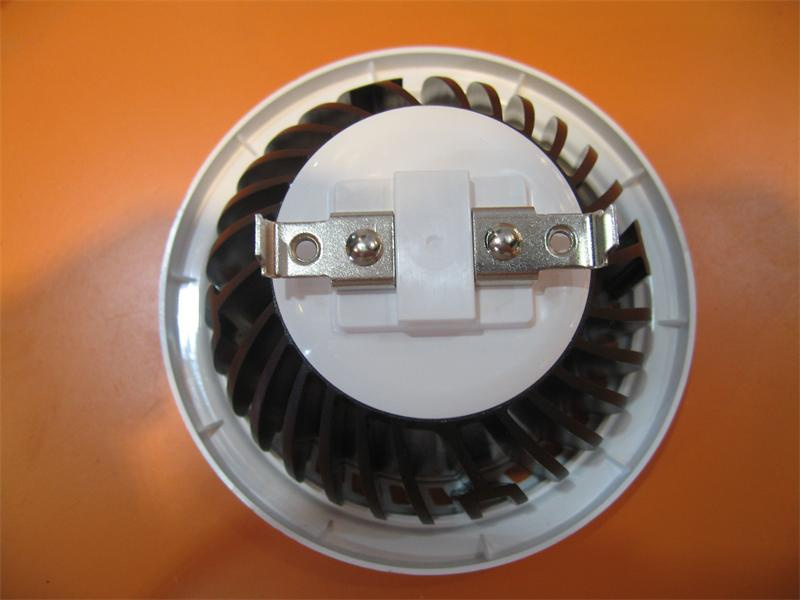

Patent cooling structure design
the heat emission hole on the surface can help the lamp can be accelerated heat dissipation.

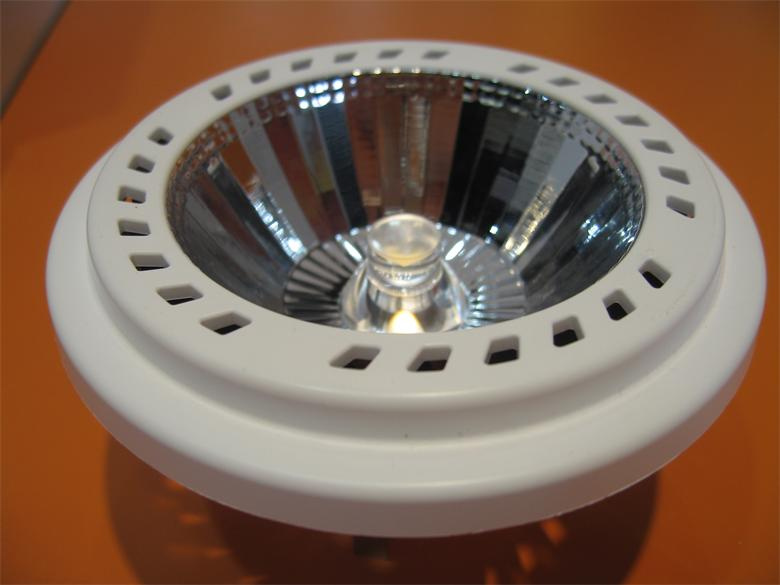

the high quality reflecor and lens assure the central light strength,the lens angle can be made as 15°/24°/38°/40°
unqiue finned radiator can speed up the convection cooling. The heat dissipation efficency is 30% higher than other die-cast
housing LED ar111
Environmental and healthy
without Mercury or any other hazardous substances.not need worry about the crack of light source.
No UV and Cool Beam (no IR) making it suitable for illuminating heat-sensitive objects (food, organic materials, paintings, etc.).
also can prevent the skin and eye is unjured by the UV ray.
Application:LEDspot AR111 is an ideal retrofit solution for spot, track and general lighting applications in the hospitality and retail industry.
It is particularly suitable for general lighting where the light is on all the time, such as creative accent lighting applications in shops,
restaurants, hotels, and especially for galleries, exhibitions and museums.
It also can be used to replace the led downlights source or led grille light source.
Technical DataS/N | Item no. | Product Size(mm) | Lamp holder | Power(W) | LED QTY | LED Chip Type | Luminous flux (lm±8%) | Replacement incandecent bubls | package information |
Ctn Size (mm/ctn) | Qty/ctn (pcs/ctn) |
|
1 | CPS-DP-GU10-02 | φ50X60 | GU10 | 4W | 3PCS | Epistar 1W High power | 280 | 25W | 285*285*300 | 100 |
2 | CPS-DP-GU10-03 | Φ49.3x95.1 | GU10 | 6W | 5PCS | 430 | 35W | 275*275*415 | 100 |
3 | CPS-DP-GU10-04 | φ50X62 | GU10 | 5W | 4PCS | 374 | 35W | 300*300*315 | 100 |
4 | CPS-DP-GU10-04D | φ50X62 | GU10 | 5W | 4PCS | 374 | 35W | 285*285*300 | 100 |
5 | CPS-DP-GU10-05 | Φ50x72.5 | GU10 | 6W | 5PCS | 460 | 50W | 285*285*300 | 100 |
6 | CPS-DP-GU10-05D | Φ50x72.5 | GU10 | 6W | 5PCS | 460 | 50W | 275*275*300 | 100 |
7 | CPS-DP-GU10-06 | Φ50x95 | GU10 | 6W | 3PCS | Epistar 2W High power | 350 | 35W | 285*285*420 | 100 |
8 | CPS-DP-GU10-08 | Φ111X83.5 | GU10 | 14W | 12PCS | Epistar 1W High power | 1008 | 100W | 365*365*385 | 100 |
9 | CPS-DP-AR111-01 | Φ110X55 | G53 | 12W | 1*12W | Bridgelux 10W COB | 1000 | 75~100W | 365*365*320 | 100 |
10 | CPS-DP-AR111-02 | Φ110X55 | G53 | 12W | 1*12W | Bridgelux 10W COB | 1000 | 75~100W | 365*365*320 | 100 |
11 | CPS-DP-GU10-01COB | Φ50*81 | GU10 | 5W | 1*4W | Bridgelux 4W COB | 450 | 50W | 285*285*420 | 100 |
12 | CPS-DP-GU10-01COB(Dimmable) | Φ50*81 | GU10 | 5W | 1*4W | Bridgelux 4W COB | 425 | 50W | 285*285*420 | 100 |
13 | CPS-DP-GU10-02COB | Φ50*92 | GU10 | 7W | 1*6W | Bridgelux 6W COB | 590 | 60W | 365*365*385 | 100 |
14 | CPS-DP-GU10-02COB(Dimmable) | Φ50*92 | GU10 | 7W | 1*6W | Bridgelux 6W COB | 590 | 60W | 365*365*385 | 100 |
15 | CPS-DP-GU10-03COB | Φ50*110 | GU10 | 9W | 1*8W | Bridgelux 8W COB | 720 | 75W | 285*285*300 | 100 |
16 | CPS-DP-GU10-03COB(Dimmable) | Φ50*110 | GU10 | 9W | 1*8W | Bridgelux 8W COB | 720 | 75W | 285*285*300 | 100 |
17 | CPS-DP-GU10-04COB | Φ50x55 | GU10 | 4W | 1*3W | Bridgelux 3W COB | 280 | 25W | 285*285*420 | 100 |
18 | CPS-DP-GU10-05COB | GU10 | 4W | 1*4W | Bridgelux 4W COB | 370 | 35W | 285*285*420 | 100 |
19 | CPS-DP-GU10-06COB | GU10 | 5W | 1*5W | Bridgelux 5W COB | 450 | 50W | 285*285*420 | 100 |
Our service
1. After sale service
CREP takes the principle of "Customer First, Service Superior" to satisfy our customers in after-sale services. According to different types of our products,we promise to offer 3 years warranty period (except special agreement), in which we provide either free or paid guarantee repairs, detailed items as followed.
If our products have some existence quality problems within 3 months since the date of purchasing, customer can change new product or free components to replace.
2. Warranty period after the 4th month of purchasing date.
Within 24 months, if the LED light power occurs some abnormal issues to make our products can not work normally, we will offer free new power to renew and repair. Changing method can be consulted and determined by particular cases.
Within 36 months, if the LED light occur serious fades or can not work, freely offered newly light source to renew and repair by us. Changing method can be consulted and determined by particular cases.
Note: LED depreciation ratio and other parameters related evaluation should consider the working conditions of LED light and working time calculated within 12 hours per day under a usual working environment.
