Description:

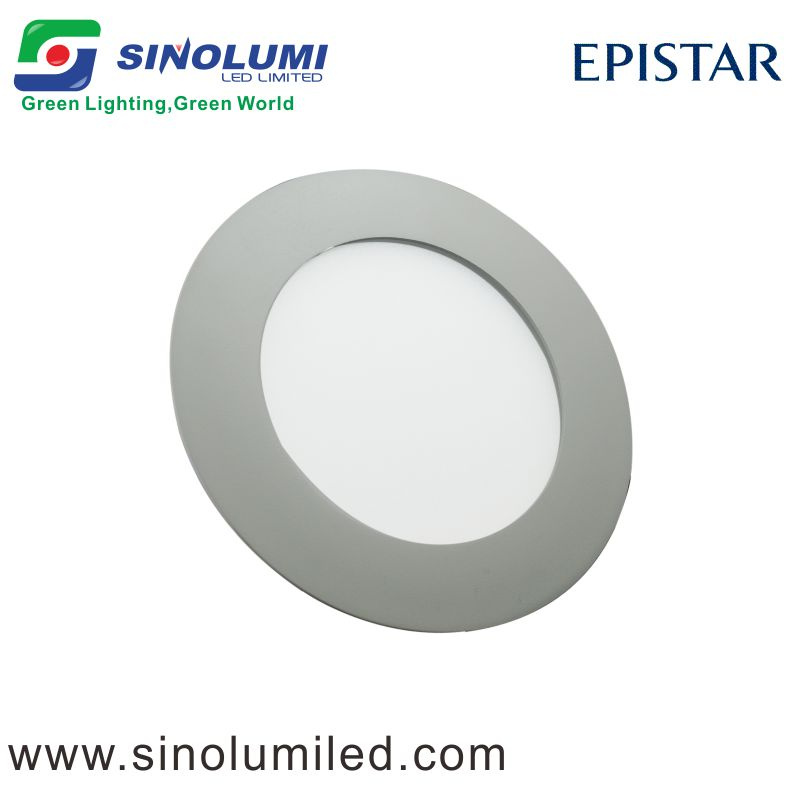

Recessed LED Panel lights are designed with only 12mm thickness ultra slim frame. They are quite unique ceiling or wall lighting solutions. Various sizes are available for your choice, including 7W(6inch),10W (7 inch), 15W (10 inch) or 18W (12 inch). They are available in warm white, pure white, cool white and 1-10V, triac dimmable version. The color of frame is white or silver now and could be customized per request.
These LED panel downlights are recessed for flush mounting and come complete with mounting accessories for simple and fast installation. All the recessed LED panel lights go along with high efficient constant current external drivers, which facilitate the replacement and repair.
Drawing:
Features:
Sinolumi LED panel down lights shine as an elegant full moon. The unit comes with very flat and thin aluminum frame. The SMD LEDs on the rim give a smooth lighting touch.
Energy Saving: Low energy consumption: save 50% of energy compared with fluorescent lamp.
Long Life-span: 10 times longer than fluorescent lamp.
Environmentally friendly: No UV wave, RFI free, No dazzling, no tiredness for eyes, conforming to CE.
Soft luminaries lighting, comfortable lighting feel.
High lumen output with SMD LED Lighting Source.
Easy installation, come with constant current driver.
High color rendering index
Good heat dissipation.
Order Information:
Model No.
LED Type
Color
CCT
Voltage
Power
Lumen
Beam Angle
CRI
SL-SMDY145WW36A4
Epistar
SMD2835
Warm white
2800~3200K
AC100-240V
7W
430lm
120 degrees
>80
SL-SMDY145NW36A4
Natural white
3800~4200K
450lm
SL-SMDY145W36A4
white
5800~6200K
490lm
Package Information:
Absolute Maximum Rating:
10Pcs/Carton
Box Size: mm
Carton Size: 500*260*200mm
N.W: 4.0Kg G.W:5.5Kg
Aluminum Heat Sink Temperature: 53°C
Operating Temperature: -20~+40 °C
Storage Temperature: -20~+50 °C
Equilibrium Temperature: 58 °C
Applications:
they are quite unique ceiling or wall lighting solutions.Replacement for conventional downlight lamp in Hotels, Conference, Meeting rooms, Offices, Commercial Complexes, Residential, Institution Buildings, Schools, Colleges, Universities, Hospitals, etc.
Installation:
