MAHJONG Overview:
MAHJONG is a kind of linear led display and decorative lighting, which can be connected into large size transparent mesh flexible soft led display screens. With flexible installation methods, lightweight body, and high transparency, Mahjong can be adapted to bending, folding, winding, hanging and other installation methods, being spliced into various shapes, full of artistic quality and creativity. So Mahjong is very nice solution for large size video displaying with led video technology, as well as stage design, ceiling, wall decoration or any other building facade, both for indoor and outdoor uses.
Main Advantages:
1. IP66, suitable for permanent outdoor or indoor use
2. Capability of customized pixel pitch, size and shapes. Minimum pixel pitch is 40 mm.
3. Multi-purpose installation accessories, flexible installation ways for various application.
4. High light transmittance. Stage lights, smoke, sound can be unblocked.
5. Can be arranged as led pixel dot, led strip lighting, and soft mesh led screens, showing nice graphics and video effect.
6. Irregular shape and snapshot effect available, no worrying about environment restrictions
7. A product has variety of applications, making the design simpler. It is the best choice for Creative Design Company.

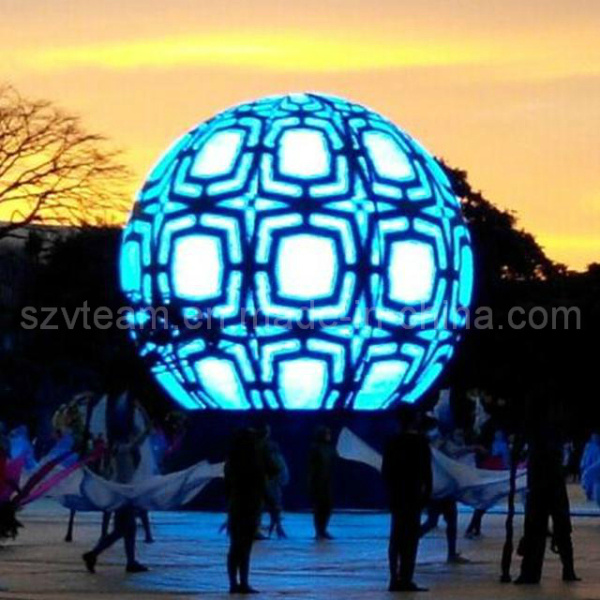

Vteam Mahjong Made One Creative Giant Football
In The Opening Ceremony
Rehearse Picture 1
Reherse Picture 2
Reherse Picture 3
|
ITEM |
Mahjong- 40 |
Mahjong-55 |
Mahjong-80 |
Mahjong-110 |
|
Pixel Pitch |
40mm |
55mm |
80mm |
110mm |
|
Pixel Density/sqm |
625 |
330 |
156 |
81 |
|
Brightness |
6500nit |
4000 nit |
1800 nit |
1000 nit |
|
Transparency |
40% |
50% |
60% |
70% |
|
Pixels Weight |
9.8 kg/sqm |
5.8 kg/sqm |
3.0 kg/sqm |
2.0 kg/sqm |
|
Max. Power Consumption |
560 w/sqm |
300 w/sqm |
140 w/sqm |
70 w/sqm |
|
Ave. Power Consumption |
280 w/sqm |
150 w/sqm |
70 w/sqm |
35 w/sqm |
|
Pixel Configuration |
RGB 3in1 SMD3535 |
|
LED Lamps/Chip |
Silar or Epistar |
|
Viewing Angle |
H140° V140° |
|
Driving IC |
TLS3001 |
|
Refresh Rate |
≥1000 Hz adjustable |
|
Gray Scale |
>12 bits |
|
Colors |
687 billion |
|
Input Signal |
DVI,VGA,HD-SDI,S-video,Composite,YUV,etc |
|
Input Voltage |
AC 220V±10%, 50/60Hz |
|
Power Supply |
Meanwell or G-energy with UL certificate |
|
Protection Level |
IP66(for led pixels), IP54(controllers and power box) |
|
Application |
Indoor&outdoor;rental&fixed |
|
Display Media |
Video,graphic,animation,signage,cartoon,text,etc |
|
Control System |
YDEA(showbox),PC based dynamic capture & mapping. |
|
System Operating Platform |
WINDOW98/2000/XP/7/8 |
|
Working Environment |
Temperature: -30ºC~+50ºC, humidity: 10-90%RH |
|
Warranty |
Two years |
|
Life time |
50,000 hours(to >70% luminous output) |
|
Certificate |
CE,ROHS,FCC |
SHENZHEN VTEAM Co., Ltd. is a professional ODM LED Screen manufacturer in Shenzhen, China, specialized in creative indoor and outdoor LED screen with experienced R&D team who has been working in LED display field for more than 8 years.
VTEAM screen is popular with the features of light weight, ultra-thin cabinet, transparent structures and widely-used in the application of TV Station, studios, auto shows, music concerts, clubs, discos, building facade, outdoor decorative lighting projects, exhibitions, celebrations etc.
As one of leaders of LED Screen suppliers in China, All products carry CE RoHS certification, with perfect designed products, customized solution, superior product and service guarantee, VTEAM has been highly praised by domestic and overseas customers, we have been shipping qualified products and services to more than 100 countries and regions all over the world, such as in the USA, Russia, Germany, Sweden, France, Netherland, Spain, Canada, Brazil, Mexico etc. The most notable of those successful projects is that we have done the creative "Giant Football" for the opening&closing ceremony of 2014 Brazil FIFA WORLD CUP!
