Indoor Project 3 in 1SMD LED Display Screen
P6
Product description
| NO. | Item | Parameter |
| 1 | Model | P6 |
| 2 | Pixel pitch | 6mm |
| 3 | Pixel configuration | 1R1G1B |
| 4 | LED type | SMD3528 |
| 5 | Module size | 192*96mm |
| 6 | Module resolution | 32*16 |
| 7 | Cabinet resolution | 128*128 |
| 8 | Cabinet size | 768*768mmx150mm |
| 9 | Density | 27777dots/m2 |
| 10 | Brightness | 1800NIT | 1400NIT |
| 11 | Scan method | 1/8 | 1/16 |
| 12 | Best view distance | ≥6m |
| 13 | Max. power consumption | 850W/m2 |
| 14 | Ave. power consumption | 430W/m2 |
| 15 | Weight | 45kg/m2 |
| 16 | Cabinet weight | 27kg |
| 19 | Refresh rate | 960Hz |
| 17 | Grey scale | 8192 levels |
| 18 | Colors | 0.54 billion |
| 20 | View angle | Horizontal: 120°, Vertical: 120° |
| 21 | Color temperature | 6500K |
| 22 | Frame frequency | ≥60Hz |
| 23 | Out of control pixel rate | <1/10000 |
| 24 | MTBF | >5000 hours |
| 25 | Lifespan | 100000 hours |
| 26 | Control mode | Synchronous display with control PC by DVI |
| 27 | Working voltage | AC 100/200v 50-60Hz |
| 28 | Control distance | Ethernet cable: 100m, Multi-mode optical fiber: 500m, Singel-mode optical fiber: 20km |
| 29 | Operation temperature | -20 to +60 |
| 30 | Operation Humidity | 10% to 80% |
| 31 | Protection level | IP40 Front, IP21 rear |
|
|
|
|
|

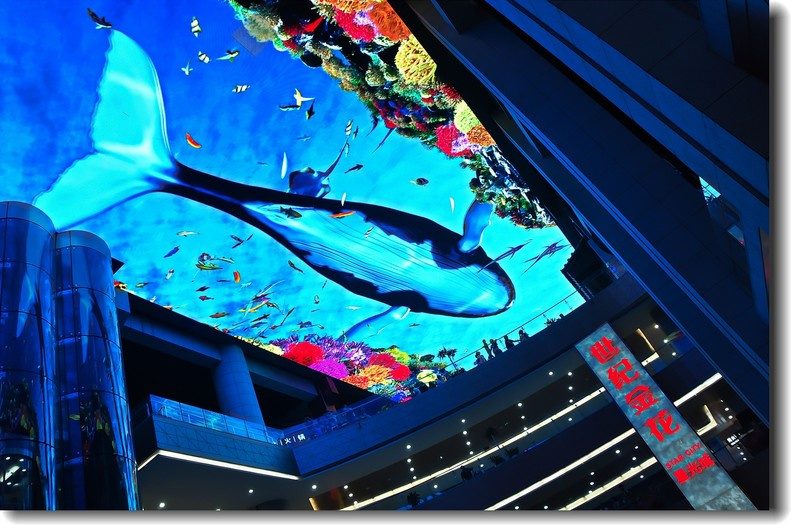

Application: Stage Performance, Advertising, Shopping Guide
System Operating Platform: Win XP/Win7 /Win8/ Win2000
Certification: CE, ROHS, UL, CCC, ETL
Features:
1. Low noise, good cooling, low power consumption, reliable
2. Keep its beautiful pictures and brightness after using for a long time
3. Energy-saving design, rich colors, smooth pictures and good conformity
4. Wide view angle, it keeps its real and wonderful colors from different angles
5. High refresh rate, high gray scale, no flickering, can be used for live TV show
Packing reference:(Carton , wooden case , flight case)
