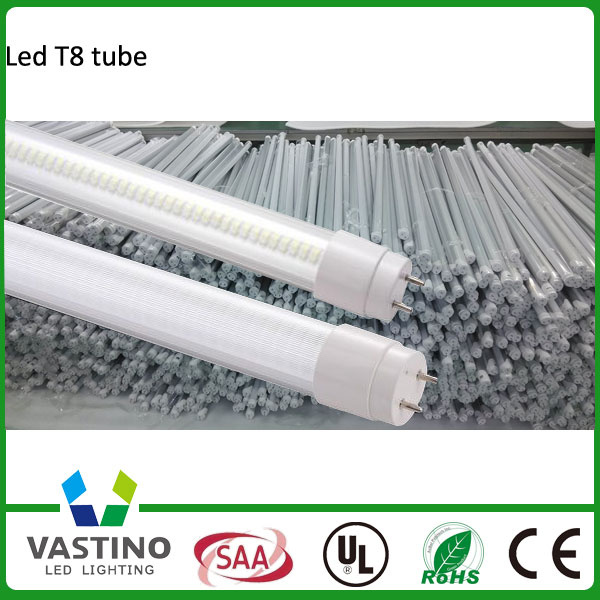

Vastino LED t8 tube Specification:
Beam Angle: >120°
Input Power: 9-24W
Dimention: 600mm,900mm,1200mm,1500mm,2400mm
Input Voltage: AC100V-277V
Life Time: >30, 000 hours
Light Source: 48PCS 2835 SMD LEDs
Safety Cert.: CE RoHS UL CUL SAA TUV
Solution: Built-in LED Driver (Mains isolated driver)
Vastino LED t8 tube Features:
1,Adopt super brightness smd2835 light source,26-28lm/pcs; Luminous Efficacy of Milky white cover can up to 105LM/W;
2,High energy saving efficiency, 90% of energy saving than incandescent lamp,60% than fluorescent lamp;.
3,Special encapsulation on led chip,durable and long lifespan 50000hrs;
4,No IR&UV,no thermal radiation and mercury pollution,green and environmental protection;
5,As it is cold light source,Led lights will not make the goods color fading;
6,Used high quality cover,soft light, high light transmittance, to realize Comprehensive lighting effect;
7,High color rendering index, most intuitive and clear, different Color temperature can be chosed;
8,Quick start and fast to output full brightness, no stroboflash,no glare;
9,Solid light source, with high impact and strong shock-proof,easy installation and safety transportation;
10.Innovative model and humanized design,cater to more customer demand;
Vastino LED Lighting(shenzhen) Co,ltd
1.12years experience for LED;
2. Practical and reliable after-sales service;
3. LED lighting quality: Stable performance, wide applicability and high protection grade, etc.
Product Parameter
Basic Parameter
Item NO.
Light source
power supply mode
Dimension(mm)
Main Material
IP Grade
Lamp Socket
VTL-TU8-9W-600mm
SMD2835
Single- ended/Double-end
D26*L600
Al+PC
IP50
G13
VTL-TU8-14W-900mm
Single- ended/Double-end
D26*L900
Al+PC
VTL-TU8-18W-1200mm
Single- ended/Double-end
D26*L1200
Al+PC
VTL-TU8-24W-1500mm
Single- ended/Double-end
D26*L1500
Al+PC
Electrical Parameter
Item No.
Rated Power(W)
Input Voltage(V)
Transfer efficiency (%)
Power Factor
VTL-TU8-9W-600mm
9W
AC100-240V/277
≥85%
>0.88
VTL-TU8-14W-900mm
14W
≥88%
VTL-TU8-18W-1200mm
18W
≥88%
VTL-TU8-24W-1500mm
24W
≥85%
Optical Parameter
Item No.
Color Temperature(K)
Luminous Flux(lm)
Beam Angle(degree)
CRI
VTL-TU8-9W-600mm
6000-6500
900±5%
>120
>80
4000-4500
2800-3200
VTL-TU8-14W-900mm
6000-6500
1500±5%
>120
>80
4000-4500
2800-3200
VTL-TU8-18W-1200mm
6000-6500
1800±5%
>120
>80
4000-4500
2800-3200
VTL-TU8-22W-1500mm
6000-6500
2300±5%
>120
>80
4000-4500
2800-3200
