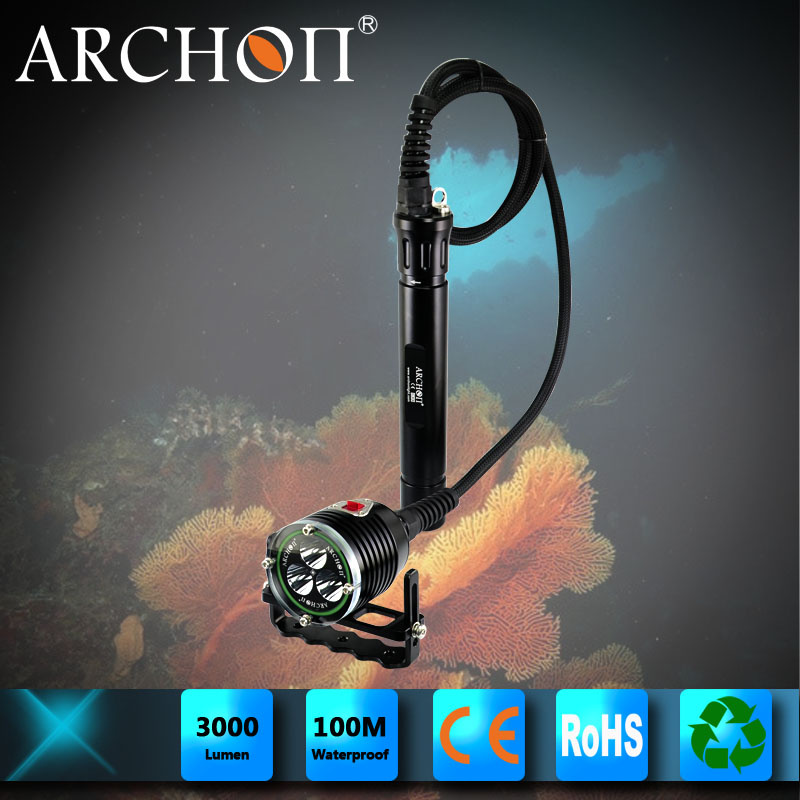

CREE LED 3000 Lumens LED Diving Flashlight WH36
OPERATING INSTRUCTIONS
-Specification:
1. Model: WH36 Canister Diving Light
2. Bulb: CREE XM-L U2 LED*3 (Max 3000 Lumens)
3. Color temperature: 6500k.
4. Three output levels. High> Low>Strobe
5. Runtime: High: 210 min, Low: 420 min, Strobe: 300 min
6. Light head: With handheld bracket
7. Reflector: Glossy Aluminum reflector
8. Lens: 8mm Polycarbonate Board.
9. Body material: Durable aircraft-grade aluminum.
10. Angle of light beam 8° Hot spot, 110° Periphery
11. Surface treatment: Premium Type III hard-anodizing.
12. Color: Black
13. Battery: 26650 Li- ion battery *3 in canister
14. With battery over-discharging protection, polarity reversing protection
15. Operation voltage: 9V to 14V.
16. Waterproof: 100 meters underwater
17. Dimensions: Light head: 84mm (length) *82mm (dia. Of head); Canister: 233(length)*36mm (dia. Of body)
18. Weight: 1000 grams (without batteries); 1300 grams (with batteries)
19. Underwater Weight: 710 grams (with batteries)
20. Impact resistance: 1.5M.
-BATTERY INSTALLATION
1. Remove the top cover of the canister by turning counter-clockwise.
2. Remove used batteries and replace with fresh batteries as shown by the polarity stickers.
3. Mount the cover by turning clockwise.
-BATTERY CHARGING
1. Plug the charger in the wall power socket, the indicator light is green in the free-load status.
2. Put the battery in the slot of the charger.
3. The indicator light is red if the battery is not fully charged; It will turn green after fully charged.
4. Take out the fully charged battery and use them in the canister.
-ON/OFF
1. Push the switch forward to activate the light.
2. The switch will go back to original position automatically.
-MODES CHANGING
1. Successive switch ON-OFF within two seconds to cycle through high, low, strobe.
-SCUBA DIVING APPLICATION
Check closely for cuts, scratches, or an otherwise damaged o-ring or mating lens surface as this can cause the light to flood under pressure. Remove any salt deposits, sand, dirt, or other foreign matter from the o-ring sealing surfaces.
KEEP THE THREADS, O-RING GROOVE LUBRICATED WITH SILICONE GREASE.
-CAUTION
If the light is not to be used for some time, remove the batteries to prevent possible leakage or corrosion. Please remove the batteries during transportation to prevent it from misoperation.
-WARRANTY RETURN POLICY
Please contact your local distributor or retailer for information on how to handle your warranty items.
-REPLACEMENT PARTS
CAT# DESCRIPTION
WH268 O-ring
WH369 Lens
