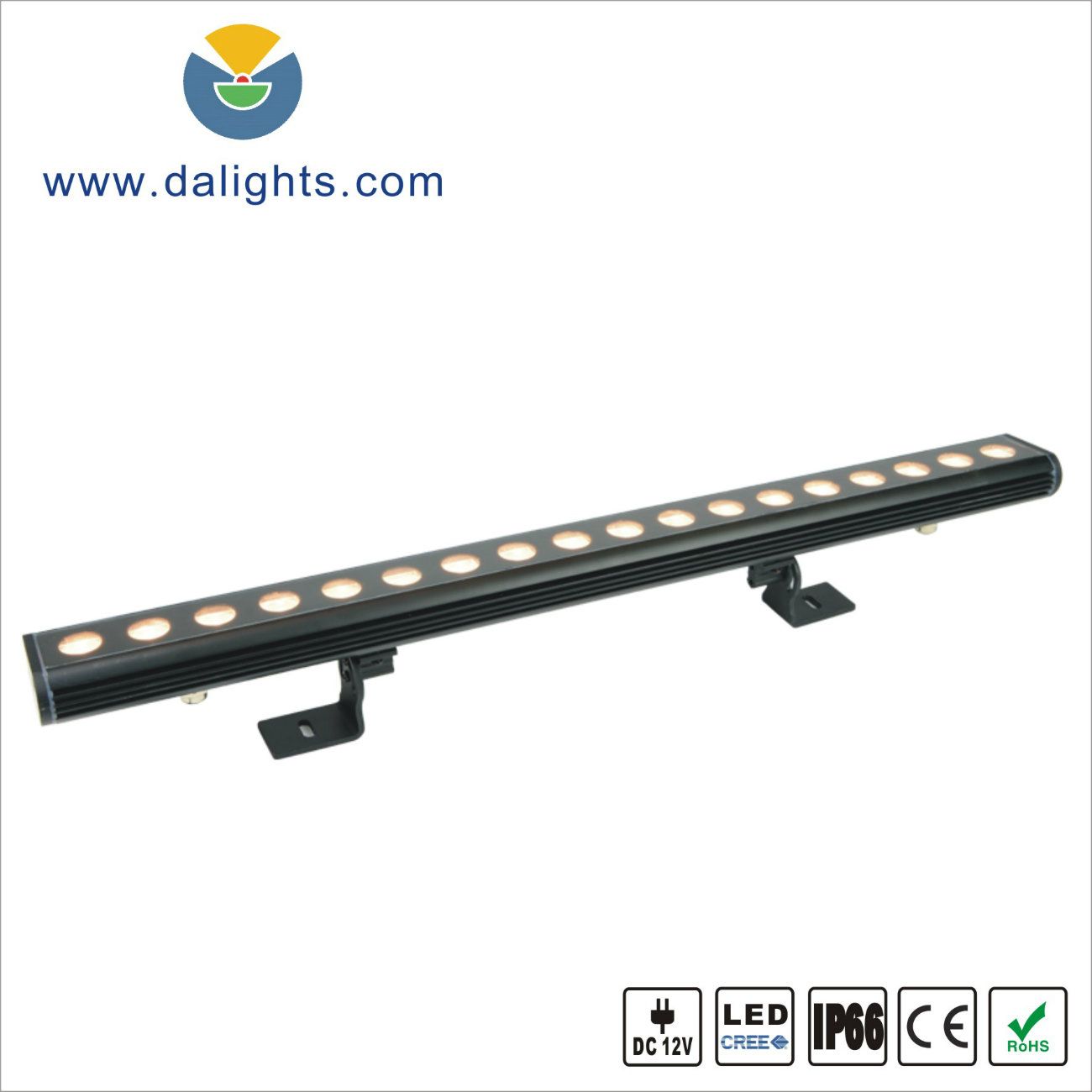

Specifications of IP65 LED Wall Washer
1.Power: 18*1Watt, 350mA constant current, DC24V
2.LED: Cree from USA
3. Size: L600mm X W58mm, 2.20KG
4. Material: Aluminum alloy + toughened glass
5. Emitting Color:
Sing color, such as warm white, cold white, blue, green, etc;
RGB changing colors (compatible with DMX controller)
6. Beam Angle: High efficient PMMA optical lens for best light effect, 15° & 30° & 60° & 15°*50° & 20°*60° are available;
Main Applications:
- clubs, bars,restaurants,hotels,stages
- historical and modern buildings, bridges, villas
- museums,art galleries
- sculptures and plastic arts
| Product name | DA Decoline II | DA Decoline II | DA Decoline II | DA Decoline II | DA Decoline II |
| 300 | 500 | 600 | 1000 | 1200 |
| Model No. | DA-H6035-
0309-3C2B | DA-H6035-0515-3C2B | DA-H6035-
0618-3C2B | DA-H6035-1030-3C2B | DA-H6035-1236-3C2B |
| Input voltage | DC24V |
| Power comsumption | 9W | 15W | 18W | 30W | 36W |

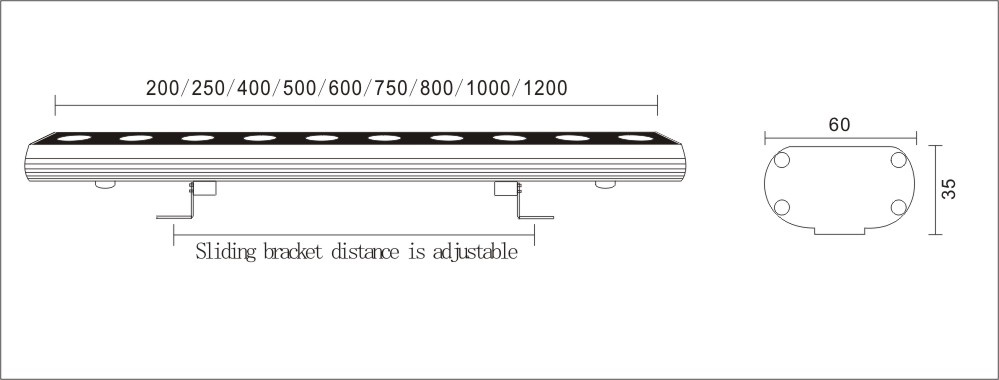

| Lamp fitting length(L) | 300mm | 500mm | 600mm | 1000mm | 1200mm |
| Number of LEDs | 9 LED | 15 LED | 18 LED | 30 LED | 36 LED |
| Luminous Flux(lm) | 603Lm | 1000Lm | 1200Lm | 2000Lm | 2400Lm |
| Weight | 1.1Kg | 1.9Kg | 2.2Kg | 3.6Kg | 4.3Kg |
| Beam Angle(degrees) | 15° & 30° & 60° & 15°*50° & 20°*60° |
| Environment | Outdoors(no condensation) IP65 |
| Operating temperature | -25 °C ~ +45 °C(no condensation) |
| Max.sets connectable | 5 (5m portion) |
| Material(body) | Aluminum |
| Accessories | Mounting fixture |
| Option parts | Waterproof Power supply cable 3000mm |
| Control & Dimming |
|
| Power Supplies |
|
| Luminaire efficacy(L27) |
|
|
|
|
|
| Color rendering property | Ra80 |
| Light source color | 2700K ~ 6500K |
DA LIGHTING is a professional manufacturer of high quality LED lighting products with successful history of customer service and technical innovation. It was established in 2011 in Southern China (Shenzhen city, Cantonese province, 10 minutes' drive to the airport), worldwide established key supplier for prestigious architectural and urban lighting demands as well as for challenging unique appearance of cultural venues, luxury hotels, theme parks, cruise ships and clubs.
Our professional R&D team is able to make your unique taste and idea on lighting and color come true with their expertise and skills; Our professional engineers always stay at the forefront of LED technology, they can develop lights and colors that satisfy all your desires; Our customer service department will keep close touch with you all the time.
Our intelligent control system can be controlled easily at home, and this system can also dim the lighting automatically according to the changes of outdoor lighting, so that more energy will be saved.
With the mission to improve the architectural lighting industry, grow with our customers, our professionalism in this industry really creates more value-added services to our valuable customers.
DA LIGHTING - Your project is our challenge to enlighten a dream!
