technical parameter:
Input power: AC100-240V 50/60 Hz

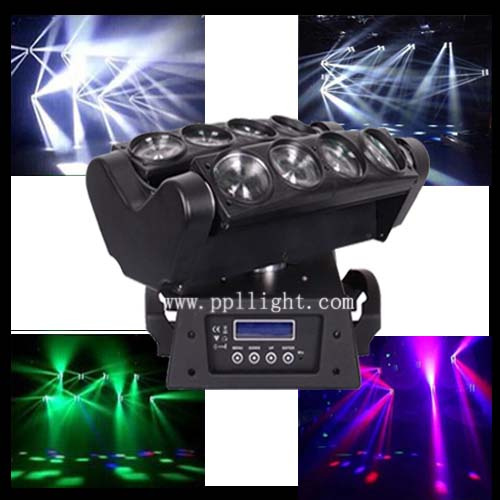

LED: 8PCS 10W high power white LED
DMX channel: 10/21channels
Movement: Pan/Tilt: X axis540degree, Y1 axis 120degree, Y2 axis120degree
Control mode: DMX512/Master-Slave/Auto run
Display: Blue blueground LCD display
Beam angle: 3degree
N. W: 9kgs G. W: 11kgs
Size: 32*41*28CM
Packing size: 51*38*38CM
Guangzhou Baiyun Popular Stage Light Equipment Factory is a professional stage lighting manufactory which provides integrated services of research, production, marketing, after-sales inquiry, repair and maintenance. Our equipment are widely used in professional theater, entertainment centers, bars, parks, clubs, nightclubs and multifunctional units of conference halls. Compliant with CE and RoHS standards, our products main involve LED moving head lights, LED PAR lights, controllers, Moving head light, etc.
With strong beliefs in "Practical, Professional & Powerful" to the products, the company provides remarkably superb lighting Performance to all Professional Audience.
Hope we can grow together on the coming days.
| CH MODE | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
46CH
| X | x fine | X motor speed | Y1 | Y1 fine | Y2 | Y2 fine | Y motor speed | Dimmer(0-100%) | shutter closed strobe effect slow to fast shutter open | Red 1 | Green1 | Blue 1 | White 1 | Red 2 | Green 2 |
| 17 | 18-41 | 42 | 43 | 44 | 45 | 46 |
|
|
|
| Blue 2 | ^^ | White 8 | empty R1234R5678G1234G5678
B1234B5678 W1234W5678 | empty LED auto play(1-8) led sound control mode | led auto paly speed (slow to fast) | empty X/Y auto run (1-8) X/Ysound |
|
|
|
|
|
