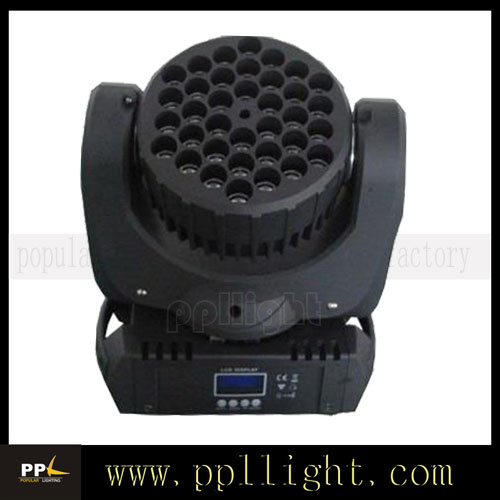

CREE 36*3W RGBW LED Beam Moving Head Light
Specifications:
Power Supply: AC90~245V, 50~60Hz.
Fuse: T6.3A
Power consumption: 160W.
LED: 3W*36(R8,G10,B10,W8).
Extremely small,fast and powerful LED moving beam .
DMX channels: 9/12/16 .
Lux4700@5m.
Pan/Tilt: 630°/240°,speed adjustable.
Pan / Tilt Running : 16bit
Beam angle: 8°.
Smooth electronic dimming: 0~100%.
Electronic strobe with pulse and random effects.
High efficiency, low power consumption.
Super compact, low weight.
Dimensions: 33x24.5x38.5cm
N/G W.: 5.5/6.5kg
DMX Channel Chart :
| Chanel | Function | Values | Description |
| 1 | Pan | 0-255 | PAN Movement |
| 2 | Tilt | 0-255 | Tilt Movement |
| 3 | Pan Fine | 0-255 | Fine control of Pan movement 16Bit |
| 4 | Tilt Fine | 0-255 | Fine control of Tilt movement 16Bit |
| 5 | Dimmer | 0-255 | 0-100% Linear dimmer from dark to bright |
| 6 | Strobe Mode | 0-255 | R\G\B\W Strobe , from slow to bright |
| 7 | Red | 0-255 | 0-100% red dimmer from dark to bright |
| 8 | Green | 0-255 | 0-100% green dimmer from dark to bright |
| 9 | Blue | 0-255 | 0-100% blue dimmer from dark to bright |
| 10 | White | 0-255 | 0-100% white dimmer from dark to bright |
| 11 | Colors Choice | 0-255 | Colors changing effect |
| 12 | Macros | 0-010 | CH1-CH11 Activated |
| 011-120 | Colors jumping |
| 121-180 | Colors fading |
| 181-244 | Colors mixing and strobe |
| 245-255 | Sound control |
| 13 | Macros Speed | 0-255 | Speed of macros(slow to fast) |
| 14 | PAN/TILT Motor Speed | 0-255 | Speed control of PAN/TILT (fast to slow) |
| 15 | Reset & sound control | 0-64 | No function |
| 65-128 | Auto-running |
| 129-192 | Sound control |
| 193-255 | Reset |
Why choose our Led Beam Moving Head Light :
1 ) with fast-lock , easy to operate the lights ; esp for lots of quantities .
2 ) with back light , after 10s , the screen light will be off , this function is highly required in some Europe countries ;
3 ) with DMX 9/12/16CH , with advanced program & inner configuration , please check above photos for your reference , much better & stable than the one with 15 DMX Channel in the market ;
4 ) with high power consumption , with real Osram LEDs , with a strong beam effect , splendid effect .
