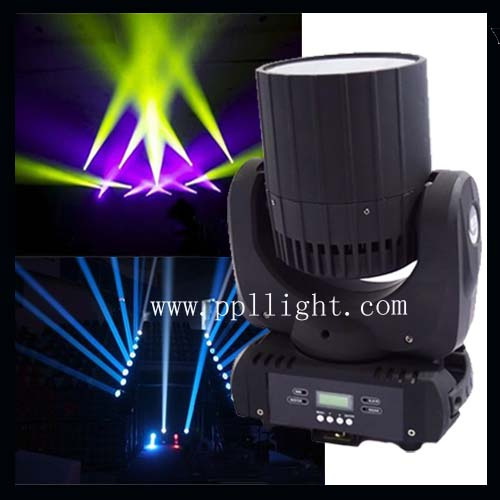

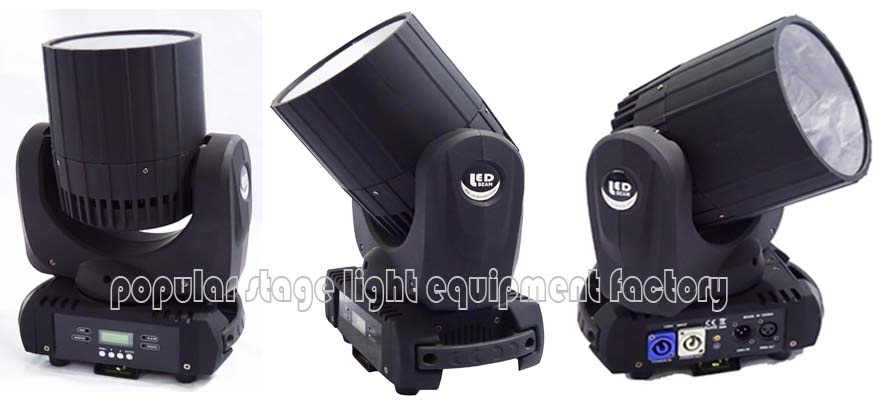

technical parameter:output voltage:AC100-240H 50/60Hz
power consumption:145w
the light source: 12*10w 4in1 Cree LED
Channel:18/29DMX channel
X axis and Y axis 540/200 controllable speed
optical angle :8 degree
electronic smooth light :0-100%
electronic stroboscopic pulse and random effect
high efficiency ,low energy consumption
a variety of color, strong powerful beam effect fast and precise movement
net/gross weight:5.5/5.6kg
packing size:32*25*45.5mm
channel chart:| No. | Function | Specification |
| CH 1 | Pan Rotation | From 0-255, press "up" is forward rotation , press "down" is reversal rotation |
| CH 2 | Tilt Rotation | From 0-255, press "up" is forward rotation , press "down" is reversal rotation |
| CH 3 | Pan Fine | From 0-255, press "up" is forward rotation , press "down" is reversal rotation |
| CH 4 | Tilt Fine | From 0-255, press "up" is forward rotation , press "down" is reversal rotation |
| CH 5 | Pan/TiltMotor Movement Speed | From 0-255, press "up" means lower speed,0 is the fastest Speed . |
| CH 6 | General Dimming | R\G\B\W general dimming , 100% linear dimming , from dark to bright |
| CH 7 | General Strobe | R\G\B\W general strobe, from slow to fast |
| CH 8 | R Dimming | R linear dimming, from dark to bright |
| CH 9 | G Dimming | G linear dimming, from dark to bright |
| CH 10 | B Dimming | B linear dimming, from dark to bright |
| CH 11 | W Dimming | W linear dimming, from dark to bright |
| CH 12 | Color Selection | 0-255 color change (0-20:R+G++;21-40:R+B++;41-60:G+R++;61-80:G+B++;81-100:B+G++;101-120:R+G+B++;121-140:R+B+G++;141-160:B+G+R++;161-200:R+B+G++;201-220:B+G+R++;221-255:R+B+G++) |
| CH 13 | 4pcs of sections gobo selection | 4 sections could be used at the same time(0-60);first section is from(61-120);second section is from(121-160);third section is from ( 161-200 ) , forth section is from (201-255) |
| CH 14 | Built-in Program | The first 13CH could be used from 0-75 , adding 10 in every time , it matches a built-in-program |
| CH 15 | Built-in Program Speed | 0-255press " up " , the speed becomes slower , 0 is with fastest speed . |
| CH 16 | Effect Gobo Position | (0-127)Effect gobo position setting;(128-255)Effect gobo rotating by right & left side speed from slow to fast, 128 is the slowest , 255 is the fastest |
| CH 17 | X/Y motor reversing function | (0-64)no function ;(65-128)X reversing rotation;(129-192)Y reversing rotation;(193-255)X/Y reversing rotation. |
| CH 18 | Reset , auto-running & sound-activation | DMX value does not change in 10s will executive program;(0-64)no function;(65-128)auto-running;(129-192)Sound-activation ;(193-255)Reset . |
Trade terms:| Price Term | exw price |
| Payment terms | T/T,Paypal,Western union |
| Shipping Way | 1.By express(DHL,Fedex,Ups,EMS) |
| 2.By air |
| 3.By sea |
| Sample time | 1-3 workdays |
| Production time | general 5-10 days,depend on your order quantity |
| Packing | 1.Standard Carton |
| 2.Flightcase |
| Warranty | 1 years |
| After-Sell server | 1.If there is some problems with the product,please describe it and sent thenecessary picture or video to us for analyzing. |
| 2.Then we will guide you how to fix it and provide free accessories if needed. |
| 3.1year quality guarantee at least, and we will provide free parts for replacement if any problem belong to us during the period(Delivery cost paid by customer);1 year later, we can provide spare parts for replacement based on certain charge. |
Guangzhou Baiyun Popular Stage Light Equipment Factory is a professional stage lighting manufactory which provides integrated services of research, production, marketing, after-sales inquiry, repair and maintenance. Our equipment are widely used in professional theater, entertainment centers, bars, parks, clubs, nightclubs and multifunctional units of conference halls. Compliant with CE and RoHS standards, our products main involve LED moving head lights, LED PAR lights, controllers, Moving head light, etc.
with strong beliefs in "Practical, Professional & Powerful" to the products, the company provides remarkably superb lighting Performance to all Professional Audience.
Hope we can grow together on the coming days.
