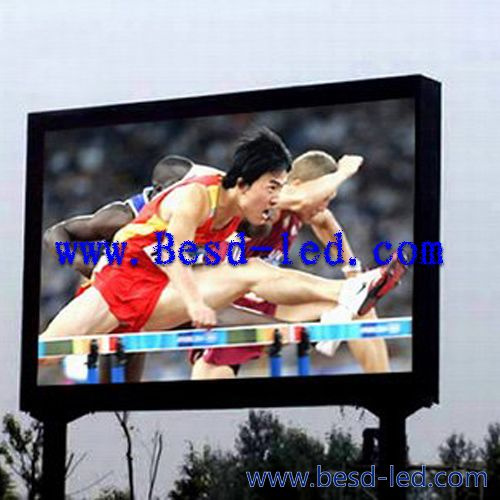

Commercial LED Sign Outdoor Use Full Color P10 LED Display
| Price: |
US $ 650-700/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Dot Pitch(mm) | 16mm |
| Module Size(W×H) | 256mmX256mm |
| Pixel Configuration | 1R1G1B |
| Module Resolution(W×H) | 16 dots × 16 dots |
| Module pixels | 256 dots |
1) Low power consumption
2) Top quality
3) Vivid pictures
4) Passed CE, RoHS
| Outdoor LED display technical parameter |
| Items | P10 Outdoor full color led display |
| Pitch size | 10mm |
| Module size | 160mm*160mm |
| Panel pixel(dots) | 16*16 |
| Pixel configuration | 1Red,1Green,1Blue |
| Color scale | 256-65536grade/16777216colors |
| Pixel density | 10,000pixels/square meter |
| View angle(H/V) | 120/60degree |
| Brightness | ≥6500cd/sqm |
| View distance | 5-150m |
| Power consumption | 100-150W/sqm |
| Net weight | 60kg/square meter |
| Operating temperature | —25°C~+60°C |
| Operating humidity | 10%—95%RH |
| Life time | ≥100,000hours |
| Exchange frame speed | >150frames per second |
| Refresh frame frequency | 600Hz |
| Control distance | 100m (without relay),single mode fiber:
20000m,multi mode fiber:500m-20km |
| Power | 110V/220V/380V±15% 50Hz |
| operating system | Windows98/Me/2000/Xp |
| Drive mode | constant current driving |
| display mode | VGA640X480—VGA1600X1024 |
| Protections for outdoor display | IP65 |
| Accepting signal | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
| Prod Model: |
BESD-PH10-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pixels: |
10mm |
| Viewing Distance: |
8m-120m |
| Colour Tempreture: |
6500k to 9500k Adjustable |
| Ingress Protection: |
IP65 Front, IP54 Rear |
| Input Volatage: |
110/240W AC Power |
| Input Power Frequency: |
50/60Hz |
| Operation System: |
Windows(XP/Vista) |
| Control Distance: |
Cat5 Cable100, Fiber Optic 10km |
| Sending Card: |
Linsn901 |
| Receiving Card: |
Linsn801 |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
CCC |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Application: |
Advertising |
| Scanning Mode: |
Static Scan |
| Pixel Density: |
10000 dot / m² |
| Average Power Consumption: |
350W / m² |
Xinhongxiang Optoelectronics (Shenzhen) Co., Ltd. As one of the most leading LED Products manufacturer in Shenzhen China, covering 10 000 square meters, register capital high up to 30 million CNY, is one high-tech enterprise focus on researching, producing, sale and service of LED products, . Nowadays Xinhongxiang owns fully automatic production lines, independent purifying workshop, researching center, most advanced production and inspection equipments, which guarantee the quality of the LED products. All the products have exported more than 100 countries, such as USA, Mexico, Canada, Brazil, Chile, Argentina, Panama, Colombia, Germany, France, Sweden, Italy, Spain, Russia, Poland, Turkey, Ukraine, South Africa, Egypt, Saudi Arabia, Singapore, Thailand, India etc
Developing History:
From 1996 to 2010, Xinhongxiang Optoelectronics (shenzhen) Co., Ltd, mainly involved in LED encapsulation and LED Display.
Since 2010, owe to enlarge the company scale and build up self-owned brand, Xinhongxiang focus on LED lighting, Shenzhen BESDLED Co., Ltd focus on LED display, business involved in indoor and outdoor LED Encapsulation, LED Display and LED Lighting Products.
LED Display:
Full Color Indoor and outdoor LED Display, single or dual basic color LED signs, LED Curtain, LED Dance Floor, Rental LED Display,
LED Lighting:
LED Bulb, LED Tube, LED Spotlight, LED DownLight, LED Panel Light, LED Street etc,
Comparing with many of LED Manufactures, xinhongxiang owns the following advantages to be your best choice for long term cooperation partner.
1, Fully automatic production lines
Xinhongxiang owns the entire LED manufacturing line, from original Semiconductor to LED chip, then assemble to LED display and LED lighting products.
2, Advanced production equipment
SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP LED, Spectrum and Color Separation Machine, LED oven, Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. Are equipped for our LED Product production.
3, Many Certification approved to clear up the trade barriers
CE, FCC, UL, RoHS, CCC, ISO9001: 2000 etc are obtained.
4, Strong R&D Team
Xinghongxiang absorb many talents, with more than 500 staffs, and including more than 100 engineers and technician, which paves the way for R&D for new products and excellent sales service
5): After-Service,
Principles: Response in time, solve problem ASAP and ensure the use.
Period: During warranty period, free of all maintenance charges;
After Warranty, only charge the material cost.
All the life time, Technology support is free.
