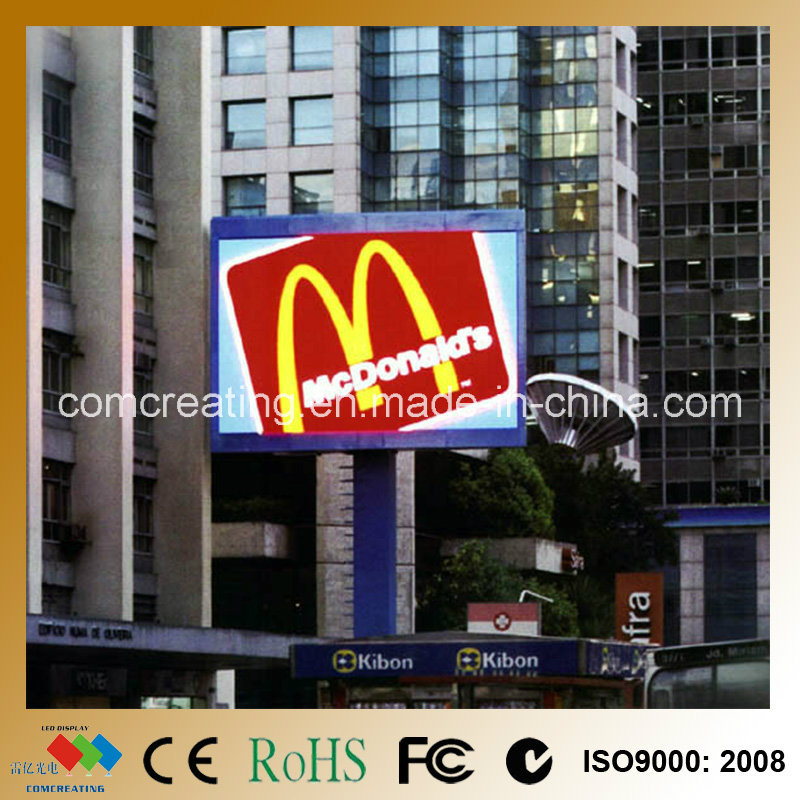

Comcreating High Brightness Wide Viewing Angle Full Color P6 SMD Outdoor LED Display
1. CE,FCC,RoHS,C-Tick approved
2. High brightness: >7000nits, High refresh
3. Superior uniformity, Good display effect
4. 2 years warranty, best after-sales service
5.Video, flash, animation, graphic, text available;
6.Installation structure drawing offered FOC;
7.Factory visiting and inspecting is welcome;
8.OEM service offered;
9.Models available:
Indoor led display-P2.5mm, P3mm, P4mm, P5mm, P6mm, P8mm, P10mm, etc.
Outdoor led display-P6mm, P8mm, P10mm, P16mm, etc.
| LED Specification |
| 1 | LED Chip Brand | Red: Opto / Epistar
Green & Yellow: Silan |
| 2 | Wave Length (nm) | R: 625nm;
G: 525nm;
B: 470nm |
| 3 | Pixel Configuration | 1R1G1B SMD 3535 |
| Module & Cabinet Specification |
| 4 | Physics Distance Between Pixels | 6 mm |
| 5 | Physics Pixel Density | 27, 777 Pixel/m² |
| 6 | Module Dimensions (W x H) | 192mmX96mm |
| 7 | Physics Pixel / Module | 32 x 16 = 512 |
| 8 | Cabinet Dimensions ( W x H xT) | 960mm X 960mm X 160mm |
| 9 | Physics Pixel / Cabinet | 160 x 160 = 25600 |
| 10 | Cabinet Weight | 42 kg |
| 11 | Cabinet Material | Steel Cabinet / Aluminum Cabinet |
| 12 | Cabinet Frame | Standard Frame
Simple Frame (without backdoor)
Lifting Frame (specially for rental use) |
| Screen Specification |
| 13 | Brightness | >6000 cd/m² |
| 14 | Viewing Distance (min, max) | >6m |
| 15 | Power Consumption / Screen | MAX : 1300 w/m² ;
Average: 260 w/m² ; |
| 16 | Drive Mode | 1/4 scan, constant current driving |
| 17 | Refresh Rate | 300 HZ |
| 18 | Frame Rate | 60HZ |
| 19 | Display Flatness | 0.5mm |
| 20 | Maintenance | Back maintenance, replace the module |
| 21 | Led Life Span | 100, 000 hours |
| 22 | Supply Voltage | AC220V/50HZ, ± 10%;
AC110V/60HZ, ± 10% |
| 23 | Operating Temperature | -20º C~+50º C |
| 24 | Operating Humidity | 10%-90% |
| 25 | Storage Temperature | -40º C~+60º C |
| 26 | Viewing Angle | Horizontal: 120° ; Vertical: 65° |
| 27 | Grey Scale | Red, green, blue each 16k |
| 28 | Display Colors | 4096 Billion |
| 29 | IP Rating | IP65 water proof, dust proof |
| 30 | Aging Time in Factory | More than 72 hours constantly |
| Control |
| 31 | The Software | LED Studio |
| 32 | System Supported | Win 98 / 2000 / 2003 / XP / WIN7 |
| 33 | Control Mode | Real Time Control (Synchronous) |
| 34 | Display Capability | Flash, Video, Graphic, Text |
| 35 | Signal Supported | RGB, VGA, DVI, etc. |
Product Features
High flexibility:
Our company has made researches on various outdoor circumstances, and applied the research achievements to design systems, so as to obviously improve both the flexibility and reliability of our products in various bad circumstances outdoors.
Rich colors:
with three basic colors (red, green and blue) to form the unit boxes, 256-level gradation of red, green and blue form 16777216 kinds of colors, making the electronic displays showing rich colors, high saturation, and high resolution, and also enabling them to show high frequency dynamic images.
High brightness:
The products adopt super-high brightness LED, so that you can see clearly from a long distance even in strong sunshine.
Good effect:
The products adopt non-linear calibration technology to realize clearer images with stronger feeling of layers.
High reliability:
The products adopt the static scanning technology and the module design technology to offer higher reliability and stability.
Diversified display modes:
The products support multiple display modes.
Easy operation:
The products adopt popular video playing software to facilitate system operations.
Available range:
Government plazas, recreational plazas, large-scale entertainment plazas, busy business and commercial centers, ad information boards, commercial streets, and railway stations etc..
Our Services
Pre-sales support
1. We offered technical advice to our customers before buying our products.
2. Help customers to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our customer's specific usage.
After- sales service
1. We promise our customers more than just two years warranty service! We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for our customer.
2. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
3. We offered training to our customer who includes operating and maintenance of our products.
Warranty
Comcreating offers two years warranty. Repairing and replacement during the guaranteed period will be free, but you should bear the freight cost from your place to our factory. However, we can not guarantee on a workshop for replacement, compensation for damage, and repairing charge taking place within the following situations:
1. Accident due to careless handling and misusage.
2. Accident due to repair or improvement without permission of Shenzhen Comcreating Co., Ltd.
3. Accident due to force majeure/nature disaster (fire, flood) and war.
Maintenance
Comcreating provides 1% spare parts freely, including LED module, power supply, fan, receiving card, LED lamps and other related parts. You can replace the broken one with the spare parts when problem happens, which will take about 5 minutes, and then send the broken ones back to our factory for fixing freely before you don't have enough spare parts for next maintenance. Additional charges will be required if you want more spare parts. We offer lifetime maintenance and charge only for the raw materials after the guarantee period.
Training
We offer training for free. Customer can send your engineer who has electronic and computer knowledge to our factory for the operation and maintenance training. We also provide the operation manual, software, and so on. Any associated drawing of product and structure and some other professional suggestion will be provided too.
Installation
User's manual, instruction video, professional CAD installation drawing, and other needed engineering drawings will be provided. We only offer the drawings, and you can show the drawing to your local steel structure factory, and they will weld it for you at site. On one hand, it's not cost-effective for you to ship the steel structure from China. On the other hand, we are impossible to offer you exact steel structure without welding at site.
Engineering training or installation assistance support at customer's place is available, but a round-trip ticket, local accommodation of technician, staff labor cost(USD80/day if exceeding one week), cost of visa, and other expenses during the whole trip should be borne by the customer.
Packaging & Shipping
Standard Package: Veneer Case(Usually 3 cabinets in 1 veneer case)
Delivery time: Around 25 days after receiving the deposit
Company Information
Shenzhen Comcreating Co.,Ltd is a professional manufacturer engaging in the research and development, production, sales and service of LED display system.
With the continuous and stable development in the past 8 years, Shenzhen Comcreating Co.,Ltd has showed strong competition in the market both in products quality and service. 50 sets of advanced equipments including latest automatic optic-electronic test system are furnished in product line.the output is more than15kk LED each month.Our products are CE approved, ROHS compliant, C-TICK and FCC certificated. We had provided more than 3000 LED displays for more than 50 countris and regions,and gained a great reputation from customers.
We grow up together with customers, and will be highly appreciated if any feedback from customers, which will be a great help for us to improve our products. Let us come togher to create a lasting relationships, and let us help you in this business well.
FAQ
HOW TO SELECT
Selecting an LED Display should be driven by the business or organizational objectives you hope to meet by purchasing an LED Display System. Every LED display application is different, so it is important to choose the right LED display.
OUTDOOR OR INDOOR
LED Displays are specifically designed for indoor or outdoor use. There are two main factors that differentiate the two. First is weather durability. Outdoor displays are designed to function properly in extreme weather conditions while indoor displays are not built to the same environmental standards. The second consideration is display intensity. LEDs used for indoor applications are not bright enough to compete with outdoor ambient light conditions. Outdoor LED Displays are designed specially to be bright enough for outdoor environment.
LOCATION OF MOUNTING OF LED DISPLAY
The exact placement of an LED Display in reference to the viewing audience is an important factor in determining the right product for an application. There are two points to consider when choosing a LED Display based on where it will be installed. First, the placement of the LED display will affect the minimum and maximum viewing distance. Secondly, the angle at which the LED Display can be effectively viewed must be considered, this is referred to as the viewing angle. Often, different Led Displays have different viewing angles. It must be ensured that the intended viewing audience is within the viewing cone of the display.
DISPLAYING CONTENT
Understanding the communication wants is a very important factor in determining the right product for a specific application
VIEWING DISTANCE
Viewing distance is one of the most important factors needed to determine the correct size of the LED Display. As a general rule: 1 inch of text is viewable up to 50 feet away 1 or 25mm of text is viewable up to 15m away . However, if the target audience is moving, then another factor, TIME, is required. Based on our experience and research, an average of at least three to four seconds is required for a moving audience to adequately recognize and comprehend six to eight grouping of content on an electronic sign. For example, an audience will have three seconds or less to view LED Display signs with four inches of text. If the LED Display signs have too much content, then the reader will not have sufficient time to comprehend the entire content.
