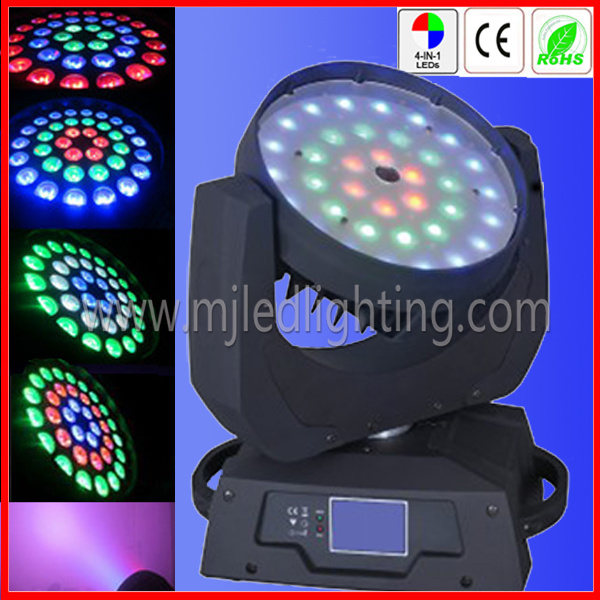

Colorful led zoom360 led moving head light
Product Features
1. LEDZOOM 360 has linear motor zoom function, the zoom angle is 6 ° To 60 ° .
2. Use 36pcs 10W 4in1 LED lamp beads. Color mixting is very smooth. 36pcs lamp beads divided into three circles, each circle individually controllable. Light uniformity, blending superior, angle of coverage is good, linear dimming.
3. There are two kinds of channel mode, 20 channels and 37 channels and it can be selected from the menu. Suitable for stage, concert touring, bars and so on.
4. It's suitable for stage, concert touring, bars and so on.
Product Specifictions
Product Name Colorful led zoom360 led moving head light
Model Number MJ-1006D
Power Supply AC90-240V, 50/60Hz
Light Source 36*10w 4in1 leds
DMX Channels 20CH, 37CH
Power Consumption 360W
Operation Mode DMX512, Sound actived, Auto, Master/slave
Rotation Angle Pan 630 degree; Tilt 240 degree, self-correcting
Color RGBW color mixture
Display Touch LCD screen
Zoom Function 10 to 60 degrees zoom
Functions Color mixing, color change
Net Weight 10kg
Gross Weight 12kg
Dimension 420 X 330 X 460mm
Company Brief Introduction
1. We are the supplier of technology illumination equipment, and professional in manufacturing and designing LED lighting for many years. We have a high reputation between our old and new customers.
2. First-class production line and assembly line, powerful research &development team and high-quality staff.
3. Main products: LED stage light series, LED moving head series, LED wall washer series, LED par light series, LED waterproof light series, LED underground light series, LED pool light series, LED commercial light series.
Our Advantages
1. One year warranty
2. Manufacturer, Competitive price.
3.50, 000 hours life span.
4. Fast Delivery: 2~3 working days for sample order, 10~15 working days for normal order.
Channel List: 32CH MODE |
CH |
Value |
Function |
1 |
0-255 |
X motor |
2 |
0-255 |
Pan fine(16Bit) |
3 |
0-255 |
Y motor |
4 |
0-255 |
Tilt fine(16Bit) |
5 |
0-255 |
XY motor speed from quick to slow |
6 |
0-69 |
Non |
70-79 |
After 3 seconds start moving blackout |
80-89 |
After 3 seconds close moving blackout |
90-139 |
Non |
140-149 |
XY reset |
150-179 |
Non |
180-189 |
Focus reset |
190-199 |
Non |
200-209 |
All motors reset |
210-255 |
Non |
7 |
0-255 |
Red 1 dark to bright |
8 |
0-255 |
Red 1dark to bright(16 bit) |
9 |
0-255 |
Green 1 dark to bright |
10 |
0-255 |
Green 1 dark to bright(16 bit) |
11 |
0-255 |
Blue 1 dark to bright |
12 |
0-255 |
Blue 1 dark to bright(16 bit) |
13 |
0-255 |
White 1 dark to bright |
14 |
0-255 |
White 1 dark to bright(16 bit) |
15 |
0-255 |
Red 2 dark to bright |
16 |
0-255 |
Red 2 dark to bright(16 bit) |
17 |
0-255 |
Green 2 dark to bright |
18 |
0-255 |
Green 2 dark to bright(16 bit) |
19 |
0-255 |
Blue 2 dark to bright |
20 |
0-255 |
Blue 2 dark to bright(16 bit) |
21 |
0-255 |
White 2 dark to bright |
22 |
0-255 |
White 2 dark to bright(16 bit) |
23 |
0-255 |
Red 3 dark to bright |
24 |
0-255 |
Red 3 dark to bright(16 bit) |
25 |
0-255 |
Green 3 dark to bright |
26 |
0-255 |
Green 3 dark to bright(16 bit) |
27 |
0-255 |
Blue 3 dark to bright |
28 |
0-255 |
Blue 3 dark to bright(16 bit) |
29 |
0-255 |
White 3 dark to bright |
30 |
0-255 |
White 3 dark to bright(16 bit) |
31 |
0 |
Non |
1-255 |
3200K – 10000K |
32 |
0 |
Non |
1-255 |
Color selection , the highest priority , see the color selection |
33 |
0-255 |
Smaller spot |
34 |
0-255 |
Smaller spot(16 bit) |
35 |
0 |
No strobe |
1-255 |
Strobe from slow to quick |
36 |
0-255 |
Main dimming |
Channel List: 20CH MODE |
CH |
Value |
Control function |
1 |
0-255 |
X motor |
2 |
0-255 |
Pan fine(16Bit) |
3 |
0-255 |
Y motor |
4 |
0-255 |
Tilt fine(16Bit) |
5 |
0-255 |
XY motor speed from quick to slow |
6 |
0-255 |
Red 1 dark to bright |
7 |
0-255 |
Green 1 dark to bright |
8 |
0-255 |
Blue 1 dark to bright |
9 |
0-255 |
White 1 dark to bright |
10 |
0-255 |
Red 2 dark to bright |
11 |
0-255 |
Green 2 dark to bright |
12 |
0-255 |
Blue 2 dark to bright |
13 |
0-255 |
White 2 dark to bright |
14 |
0-255 |
Red 3 dark to bright |
15 |
0-255 |
Green 3 dark to bright |
16 |
0-255 |
Blue 3 dark to bright |
17 |
0-255 |
White 3 dark to bright |
18 |
0-255 |
Enlarge |
19 |
0 |
No strobe |
1-255 |
Strobe from slow to quick |
20 |
0-255 |
Main dimming |
|
Price term |
EXW price |
Payment terms |
TT/Paypal/Western union |
Shipping Wa y |
1. by Express ( DHL, Fedex, Ups, EMS)
2. by Air
3. by Sea |
Sample time |
1-3 business days |
Production
time |
5-20 days, but ultimately subject to order quantity |
Packing |
1. Using EPE packing the goods in case damage
2. Then put it into the Standard carton
3. Flightcase optional |
Warranty |
1 year |
After-sell
Service |
1.If there is a problem with the product, please describe it and sent the necessary picture or video tous for analyzing.
2. Then we will guide you how to fix it and provide free accessories if needed.
3, For big problem, you can send the products to our factory, then we will send a new one to you! |
Note |
We can declare it as a 'GIFT/Sample' with a lower value Which you may reduce tax. But This lower price does not reflect the total price you paid or the market value of the product
|
Estabilshed in 2006, Mega LED lighting Ltd is one of professional manufacturer of LED lighting in Guangzhou. Our main product are LED stage lighting, LED moving head, LED wall washering, LED spot lighting, LED tube lighting, LED commercial lighting, LED aqua lighting and other LED lighting. Most of our products are for export. All products have acquired CE &RoHS certificates.
We have more than 1500 square meters of factory space and more than 50 employees. With good quality and competitive price, our products have been sold to all over the world, such as Europe, America, the Middle-East, and Southeast Asia.
We take charge of the series of designing, manufacturing, developing, sales and installation service. In the development of these years our products have been favored by the new and usual customers.
We take the principle of 'Quality first, Honor highest, Service best'. To develop our products, we has established the system of perfect quality control according to ISO9001 quality system standard.
MegaLED lighting will light up your life!
