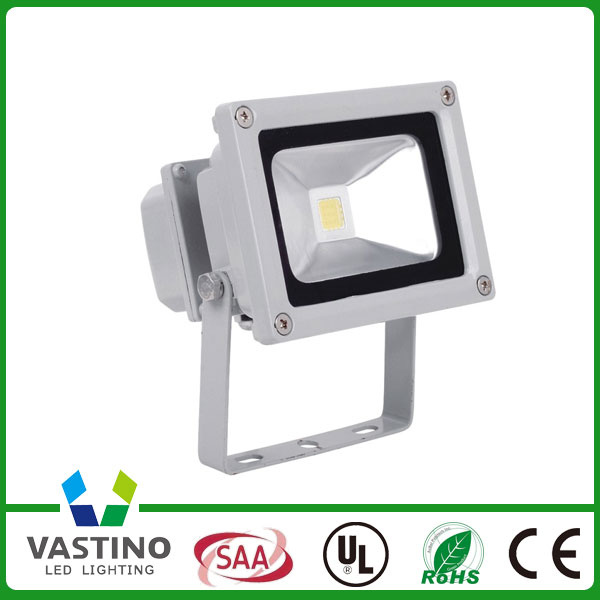

Epistar 10W LED Flood Light
Specification:
Description: LED flood light
Beam Angle: >120°
Input Power: 10W
Chip: Bridgelux chip
Input Voltage: AC110V-277V
Life Time: >30, 000 hours
Light Source: COB
IP Grade: 65
Warranty: 3 years
Safety Cert.: CE & RoHS UL CUL SAA TUV
Solution: Built-in LED Driver (Mains isolated driver)
Features:
1. Using high brightness high-power integrated chips;
2.Wide input voltage and constant current for the LED . That does not require the grid size fluctuations, also is not affected by grid fluctuation of the brightness of lamps and lanterns and service life;
3.Large cooling area. Ensure the LED junction temperature at work, Ta at 25 ºC Tj < 50 ºC. Compared with the traditional LED flood light that used in summer, the junction temperature was too high so that influence the lifespan of the LED;
4.Environmental friendly, no ultraviolet, infrared, thermal radiation, and mercury pollution;
5. As cold light source, LED lights will not make the goods fade ;
6. High quality reflectors, soft light, high light rate ;
7..High color rendering index, showing the most intuitive and clear pictures, and color temperatures is optional;
8.Quick response, no stroboscopic, low glare, total luminous flux output reached when the lights on;
9.Solid-state light source, strong shock resistance, convenient for transportation and installation, high security;
10.4 mm high transparent toughened glass, the light transmittance is higher, safety performance is stronger;
11.Integration of novel fashion, meet customer needs and feelings, blend in more elements of science and technology and humanized design;
LED Flood light Application:
Mainly used for road, parking lot, stores, roof, expressway, subway, building,Road toll booth decoration lighting, garden lighting and square, at the same time can also be used in street lamps, suitable for tunnel lighting.
Product datasheet
1.Basic Parameters
| Model NO | LED Chip | Color of the shell | Product Size(mm) | IP | Material |
| VTL-F11-10W | 1PCS*10W | gray shell+deep blue glass | W150*L190*H50 | IP65 | Die-Cast Aluminum+Tempered Glass |
| VTL-F11-20W | 1PCS*20W |
| VTL-F11-30W | 1PCS*30W | W225*L280*H65 |
| VTL-F11-50W | 1PCS*50W |
| VTL-F11-70W | 1PCS*70W | W270*L330*H80 |
| VTL-F11-80W | 1PCS*80W |
2.Electrical Parameters
| Model NO | Led power(W) | Input Voltage(V) | Lamp Efficiency(%) | Power Factor |
| VTL-F11-10W | 10W | AC100-240V | ≥80 | >0.90 |
| VTL-F11-20W | 20W | ≥85 |
| VTL-F11-30W | 30W | ≥80 |
| VTL-F11-50W | 50W | AC100-240V | ≥88 | >0.90 |
| VTL-F11-70W | 70W | ≥88 |
| VTL-F11-80W | 80W | ≥88 |
3.Optical Parameters
| Model NO | Color temperature (K) | LED Flux(lm) | Beam angle | CRI |
| VTL-F11-10W | 6000-6500 | 550±10% | >120 | >70 |
| 4000-4500 |
| 2800-3200 |
| VTL-F11-20W | 6000-6500 | 1500±10% |
| 4000-4500 |
| 2800-3200 |
| VTL-F11-30W | 6000-6500 | 2100±10% |
| 4000-4500 |
| 2800-3200 |
| VTL-F11-50W | 6000-6500 | 3600±10% |
| 4000-4500 |
| 2800-3200 |
| VTL-F11-70W | 6000-6500 | 5200±10% |
| 4000-4500 |
| 2800-3200 |
