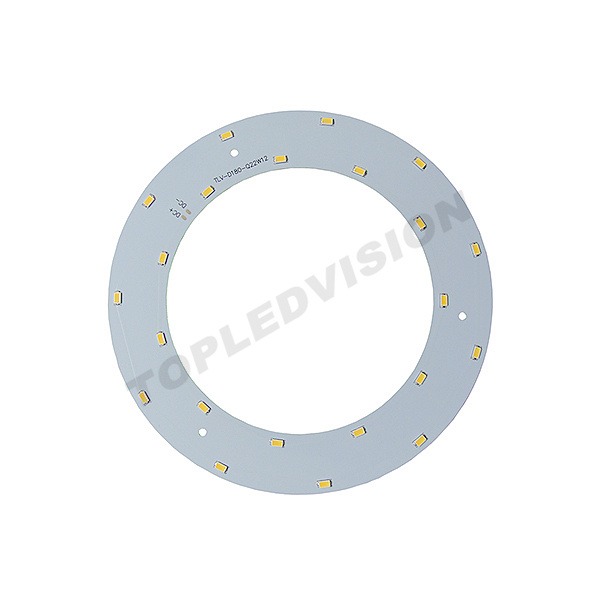

Circle LED board as a lighting source which used for all kinds of round ceiling lights, size from 180mm~450mm diameter. Circle led circuit board with high lumen output, low power consumption, cost-effective, long working life and easy installation. Can replace the traditional circle fluorescent tube use in hotel, museum, restaurant, shopping centre, store, office, corridor ect, with cost-effective, energy saving and long lifespan.
Circle LED board features:
1. Use quality SMD LEDs with high lumen efficient and less power consumption.
2. Light equal and soft, no flicker and no ultraviolet radiation, environment friendly.
3. Aluminium board with better cooling and light weight.
4. Above 50% energy saving than fluorescent tube under the same lumen flux.
5. More than 50000hours lifespan.
6. Support light dimming, brightness can be adjusted by manual or remote.
7. Magnet or plastic clip installing way.
led Circle Diameter |
200mm |
led tyle |
SMD2835/SMD5630 |
Colors |
warm white, nature white, daylight, cool white |
Color temperature |
2700-3200k, 4000-4300k, 5700-6300k, 6500-7000k |
Lumen |
1150lm~1200lm |
Input voltage |
85~260V AC |
Power |
12Watt |
Power factor |
90%~95% |
Efficiency |
>88% |
Led Driver |
CE compliant |
warranty |
2years |
Installing way |
Magnets, plastic clips |
Light fixture size support |
220mm, 240mm,280mm diameter |
