Home LED Light Products Chipshow P10 IP65 Full Color Outdoor Advertising LED Display

Chipshow P10 IP65 Full Color Outdoor Advertising LED Display

Chipshow P10 IP65 Full Color Outdoor Advertising LED Display
Price: US $ 566-999/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,D/P,Paypal,Western Union
Chipshow Full Color Outdoor LED Display Case

Outdoor Fixed LED Display-AK10
Pixel pitch: 10mm
Refresh rate: ≥1000Hz
Brightness: 7500 CD/
Cabinet Size: 960*960*150mm
Cabinet Weight: 48kg
Outdoor HD LED Display Leader
Outdoor HD LED Display leader, mature product, functions two years ahead of competitors, worldwide fantastic projects. Core tech "King Kong" series standard Modules help clients upgrade to better resolution. Increase the chance to have the second sales and enhance the relationships with clients.
Protection Rate IP65 and Module Style Design
Protection rate IP65, installation without frame. Module Style Design, fast installation and easy maintenance with low cost.
No Distortion, Power and Control System Back-up Technology
Deep black surface, firm & flat, anti-UV mask, make sure the flatness and no distortion. Power and control system back-up technology solution available.

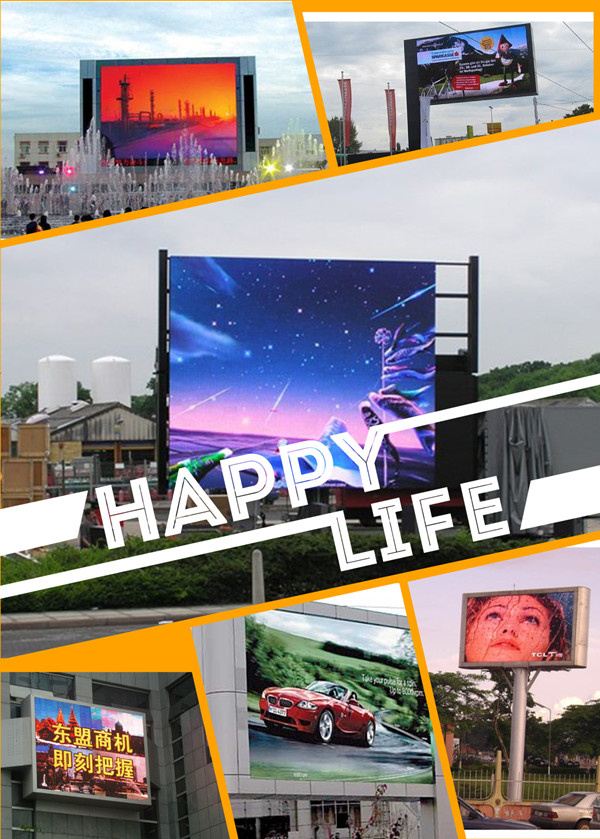

Application Places
Ideal for outdoor advertisement media, government& enterprise project, culture & tourism, sports, propaganda image, commercial real estate.

Module features:
1, standard design, specific series, combined structure,Dark black and Durable: It is special
    formulated with module plastic materia with deep black; it is strong and durable and its contrast
    is higher than conventional products, strong and durable.
2,All modules are in standard and uniform size:320*320mm
3,Replacing parts of the general modules will be easy and convenient. We offer the service of
    replacing the old modules with the new ones directly.

Cabinet features:
1,Its size is 960mmx960mm and perform all the distance of indoor and outdoor display cabinet.
   The seams are reduced more than 50% and smoothness increases by leaps and bounds.
2,Simplify the installation and maintenance: If familiar with one, you should master the whole.
    This can reduce the difficulty of marketing, engineering, training, maintenance and can reduce
    the workload.
3,Standard production in a faster and more flexible way is possible because we have reserved
    standard general cabinets and the shipment can also be made rapidly.
Package Parameters:
Gross Weight: 113kg (Estimated data,2pcs /Case)
Outer Package Size : 1030*388*1150mm (Estimated data,2pcs /Case)
Packing Material :Carton+Pearl cotton +wooden pallet
Our service

1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.

Trade Terms

1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 2years
6. Delivery time: 3-12 working days

Module Parameter
ItemSpecification Parameter

Pixel Pitch,Resolution rate,size10mm,32*32 Dots,320*320*28mm

Pixel color, Pixel LED
1R1G1B, DIP346

Working voltage,Module PowerDC2.8/3.8V,28W

Driving IC,Driving wayMBI5045,1/4

Cabinet  ParameterMaterial,Cabinet Weight(kg/Cabinet)Iron,48kg/Cabinet

Resolution rate,size,Module quantity96*96Dots,960*960*148mm,3*3

Density10000 Dots/

White balance ,Color temperature8000 CD/,6500K

view angel,Non-Flatness,Module intervalH:100°;V:45°,<0.5mm,<0.5mm

Maximal power/,Average power/300W/,100W/

Frame frequency,Refresh frequency,Gray grade60Hz,≥1000Hz,16bit

Control system,System supportsNovastar / Linsn /DBstar,Windows XP,WIN 7,

Working temperature,Protection grade-20ºC - +50ºC,Front/Back:IP65/IP54

Chipshow  Certifications

Prod Model: P10MM
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pixels Pitch: 10mm
Module Size: 320*320mm
Cabinet Size: 960*960mm
Pixel LED: DIP 346
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 10mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Pixel Density: 10000 dot / m²
Scanning Mode: 1/4 Scan
Display Type: LED Video Display
Application: Advertising
Certification: ETL
Average Power Consumption: 100
Shenzhen Chip Optech Co., Ltd. is a hi-tech company in shenzhen China, which is engaged in research, production and construction of LED display. We are not only a manufacturer but also an experienced LED display project solution provider with more than 15 years practice experience in this field. That is our greatest difference between other manufacturers. To keep improving our competitiveness in the market, we have built up a researching & developing team composed by experienced experts, specialists and engineers, in our 12, 000m² Manufacturing base.

Our company started exploring the oversea market since 2001, now we have built up special channels for the export business. So far, we have owned credits from big companies such as u. S. A. Kobel and AT&T communication, hongkong subway, hongkong productivity promotion bureau, qinghua university of Taiwan, Singapore TV station, Saudi Arabia btfdsp, s. Korean openfour. Our market covers countries like u. S. A, England, Austria, Romania, Spain, Austria, Israel, Egypt, Germany, France and Turkey etc. Many companies keep a long term cooperation with us for the consultancy and the series projects. Till now, we have exported total over 75, 000m² LED display screens all over the world.

To meet the international standard, we excute strict policy during the manufacturing and the management of the whole system. We have passed ISO 9001: 2000, CE and RoHS etc. We take customer is center, quality is life, credit is rule, innovation is headspring as our marketing guide, truly, sincerely and hopefully welcome your coming and asking!
