China Manufacturer All in One LED Integrated Solar Street Light with Motion Sensor (HXXY-ISSL-05-100) CE RoHS ISO IP68 Approved 5W-100W

China Manufacturer All in One LED Integrated Solar Street Light with Motion Sensor (HXXY-ISSL-05-100) CE RoHS ISO IP68 Approved 5W-100W
Price: US $ 58-70/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
China Manufacturer All in One LED Integrated Solar Street Light with Motion Sensor (HXXY-ISSL-05-100)CE ROHS ISO IP68 Approved 5W-100W

Our integrated All-in-one 100% solar energy powered Solar Street LED Lamp which integrates the green-energy parts solar panel, Bridgelux/ Epistar LED chips, LiFePO4 (lithium iron phosphate) battery, intelligent control system, Panasonic sensor, etc.Into one aluminum alloy housing.Long service life, high-luminance, energy saving and maintenance free.Very easy to install and no cable needed.This lamp is brighter compared with normal sodium light, 1W led chip brightness as 5W of normal sodium light, and at the same time, it's convenient for transportation and high safety.


Below are some specifications of solar street light:


Integrated/All In One Solar Street(Garden) Light 5W-100W
Solar PanelMax Power
BrandNormalSunpower  Made in USA
Life Time25 Years
Life Time8 Years
Led Source

Max Power
LED ChipEpistar Made in TaiwanBridgelux Made in USA
Life Time100000 Hours
Charge TimeBy Sun6Hors6Hors6Hors8Hors10Hors
Discharge TimeFull
>20Hors>20Hors>25 Hors>30Hors>34Hors
Working TempRange( ºC ) -20ºC~+70ºC
Color TempRange(k)6000k-6500k
Mounting HeightRange(m)3-45-67-87-910-12
Space Between
Main MaterialAluminium Alloy
CertificateCE / ROHS / IP65/ISO9001
Warranty Period5 Years

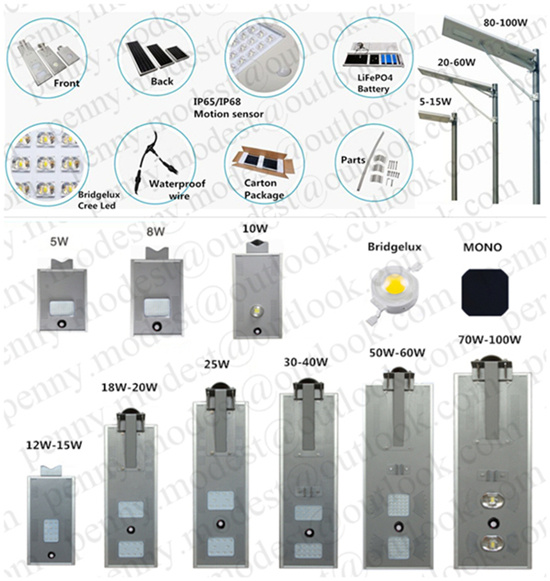

Product overviews:
1, Integrated design:Integrated solar panel, LED, lithium battery, micro-controller and other accessories into one system.

2, Micro-computer controlled:Combine microwave sensor system, light control system and driver control system perfectly.

3, Solar panel angle adjustable:Rotate 240° horizontally, 200° vertically, ensure maximun efficiency of solar energy conversion.

4, High efficiency:Light efficiency reach 150lm/w, at same illumination, low watt available.

5, Modular design:All components are modular design and in standardized production.

6, Long time working:Working continuously for four to five rainy days.

7, Low cost:Compared with traditional solar LED lights, much lower cost, easy transport.

8, IP65 grade, TVS lightning protection.

9, Low voltage driving, meet Europe standard of CE/RoHS/ISO.

10.ISO9001:2008 certification.

11, Long lifetime of the whole lamp, low maintenance costs.

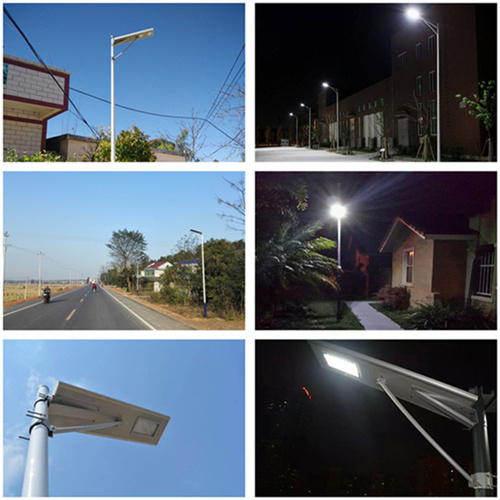

Suitable for most of the streets, residential district road, industrial zong road, square, park, school, campus, farm, villas, gardens and other places of road lighting.

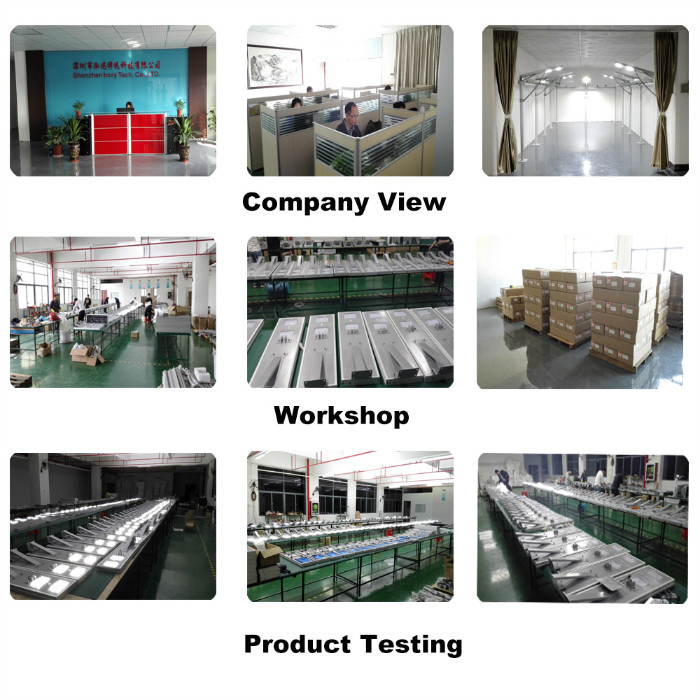

About us:

ShenZhen Sol Energy(Hxxy) Tech.Co., Ltd was Established in 2009,which is a professional manufacturer and exporter that is concerned with the design, development and production of integrated solar light and other solar products.The headquarters set up in Hongkong .And our biggest factory  are located in ShenZhen City ,with convenient transportation access.Our company has expanded from Shenzhen to other city like zhongShan to have other factories and offices.Our main products are integrated solar street light, solar garden light solar camping light solar lawn light ,solar power systems,led products and so on .All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Covering an area of 4600 square meters, we now have over 300 employees, our company own professional R&D team and sales team.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.Besides, we have received  CE ROHS IP65 and ISO9001:2008 Certificates .
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching American, Australia ,France, India, Japan,and so on.
Our products have been sold over 60 countries and our company brand--"Hxxy" awarded a lots of reputation.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.We are looking forward to forming successful business relationships with new clients around the world in the near future.

Special note:
We do not bear any freight cost if product was damaged by human during warranty.But the freight(back and forth ) is for our account if prouct was damaged by itself.We will provide free parts to replace during 5 years warranty.

The following are tips and directions for all in one solar street light, please pay attention:
1.All in one solar street light could not work without sunshine, please select the suitable model according to the local sunshine radiation and the annual total radiation.We suggest use the both AC and DC charging model in those places where lack of sunshine or having lond-time rainy days.

2.All in on solar street light adopts the long life Lithium battery for storing energy, charging temperature at day time is between 0-+60 degree, when temperature goes lower than 0 degree, the control system will Stop automatically to protect the battery, and it will revive to charge the battery while temperature goes higher than 0 degree.Dischargingtemperature at night is between -20~+60 degree, any ambient beyond will take damage to the battery, So please check these factors while selecting the street light.

3.Battery of all in one solar street light can be stored for 6 months long after fully charged, therefore please examine and charge it periodically after long time transporation or storage to prevent damaging.

4.When you install the lights in Northern Hemisphere, please adjust the solar panel to the South as much as possible to collect maximun sunshine radiation.While install them in Southern Hemisphere, by the Same token keep solar panel to north.At the same time please keep it away from any shadow of houses, trees etc.

5.Keep clear of the surface of the Al in one solar street light with normal detergent to get maximun power generation.Clear the dust or tree leaves or any grease

6.All in one solar street light have got the standard of IP65, the vents on the surface is designed for radiating, the materials are made of aluminum alloy which can survive in the environment of seaside and desert.

7.Please turn on the swich when using.

Installing Directions:
1.To place the light pole into the best spot with good day lighting.The light pole should be the lengh 3-5m, the thickness 2.0mm with material iron or steel.The diameter 10-100mm;
2.Please check If the components are all here when open the packing;
3.Please turn on the swich before using;
4.Place the lamp on the pole by its sleeve and make sure it is steady then it is ok.

1.FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2.By Air or by Sea for batch goods, for FCL;Airport Port receiving;
3.Customers specifying freight forwarders or negotiable shipping methods;
Trade terms:
1.Payment term:T/T 100% payment in advance, or TT 30% deposit after order confirmed, the balance after goods ready before shipping .Or L/C , or Western Union and Paypal for small amount.
2.Lead time:Normally in 5~15 days after deposit received
3.Sample policy:Samples are always availble for each model .Samples can be ready in 3~7 days once payment received .
4.Shipping port:Shenzhen , China
5.Discounts:We offer discount for big quantity.

1.How to choose the configuration?(take our Integrated solar led street light for example)
At first, to evaluate the use area, understand its climatic conditions and sunlight conditions.
2.How to choose the best suitable solar led street light ?(Below for your reference):
Installation height 7-10M:Normally select 30W, 40W, 50W,60W, characteristics are high brightness, high power, a wide range of lighting.Ideal for school sports, docks, ports and other places or width of 15-25 meters of road.
Installation height 5-7M:Normally select 15W, 20W, 25W.Characteristics are brightness, medium power, lighting range is suitable for rural, residential, parks.Schools and other sidewalk or road width of 10-15M.
Installation 3-5M height:Normally select 5W, 8W, 12W.Characteristics are low power, cost-effective.Suited for rural roads, roadway, residential, garden,or road width of 6-10M.
3.How to install all in one solar led street light ?
Installation is the easiest, just to lay the foundation of a straight bar, then it can be installed, usually two workers can complete the installation only with a wrench in 5 minutes,neither the use of heavy equipment or tools,nor technical support or engineer's guidance.

Contact us:

Penny Peng
Sales Manager


Prod Model: HXXY-ISSL-06-80
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Panel Max Power: 18V/10W-150W
Battery Type: Lithium
LED Lamp Max Power: 12V/5W-100W
Lamp Life Time: 100000hours
Charge Time: by Sun (6hours)
Certificate: CE / RoHS / IP65/ISO9001
Working Temperature: -20+70
Mounting Height: 3m-10m
Colour Temperature: 3500k-7000k
Space Between Light: 8m-50m
Power Supply: Solar
Color Temperature: Pure White
Lamp Body Material: Aluminum Alloy
Application: Road/Factory/Park
IP Rating: IP65
Certification: UL
Input Voltage: 12v
With Light Source: With Light Source
LED Chips Brand: Bridgelux
Power: 6W-80W
Shenzhen HXXY Tech. Co., Ltd was founded in 2009, the headquarters is in HongKong. Its a high-tech company, specialized in R&D, produce and sale solar product. Our main product are including solar street light, solar module and solar power system, solar garden light and LED street light, etc.

Our factory is about 3000 square meter, We have more then 200 workers, the professional engineer and technical account for more then 20% of total number of workers. We have the most professional R&D team and sales group and have passed the ISO9001 quality management system certification. All of our product have CE, RoHS, IP65 Authority certificates. So far our products have sold to more than 60 countries, and we have about 100 old customers. First-class quality, best service, and favorable price win us lots of reputation. And also we have done many project in China.

Especially the integrated solar street / garden light, it designed with solar panel, battery, controller lamp and other accessories are all integrated in one box. It' S easy to carry, simple to installed, convenient to use, saving energy, durable and long life span. With all this advantages, Its the best seller all over the world. Besides ours have more competitive price and Production capacity.

Our goal is to make the solar light more simplification, rural industrialization, urbanization and international.

We are sincerely looking forward to establishing long-term and friendly business relationship with you.
